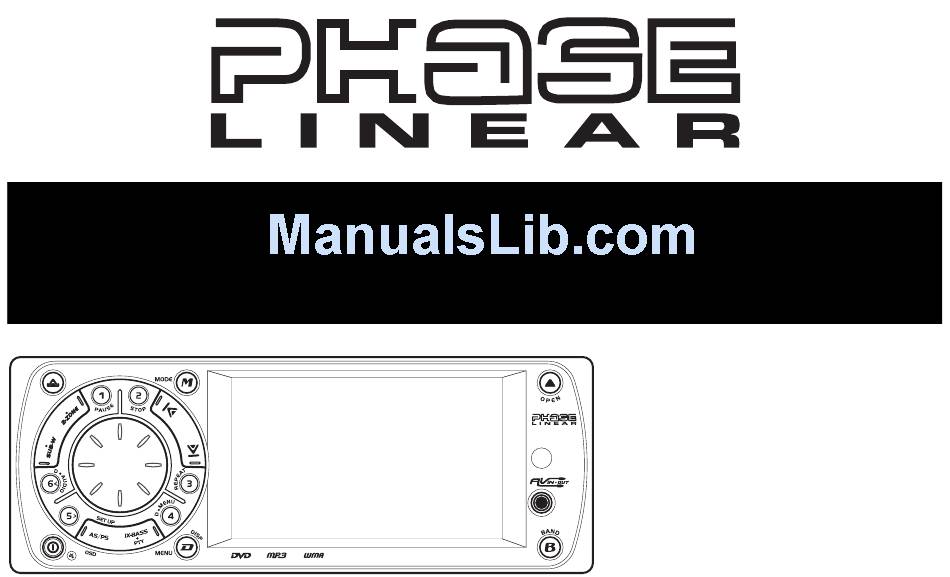

  • Page 1 UV8035 Owner's Manual Multimedia Receiver UV8035...

  • Page 2: Table Of Contents

    Crimp connections • 18 gauge wire for power connections • 16-18 gauge speaker wire UV8035 Speaker Requirements Only connect speakers rated with a load impedance of 4 ohms. Speakers with a load impedance of less than 4 ohms could damage the unit.

  • Page 3: Installation Instructions

    UV8035 INSTALLATION INSTRUCTIONS Before You Begin 1. Disconnect battery negative terminal. 2. Remove transport screws. Important Notes • Before final installation, test the wiring connections to make sure the unit is connected properly and the system works. • Use only the parts included with the unit to ensure proper installation.
  • Page 4 2. Insert the removal keys straight back until they click, and then pull the radio out. If removal keys are inserted at an angle, they will not lock properly to release the unit. Dashboard Removal Key UV8035...

  • Page 5: Reconnect Battery

    UV8035 DIN Rear Mount (Method B) This unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some vehicles to mount the radio to the dashboard. Please consult with your local mobile stereo shop for assistance on this type of installation.

  • Page 6: Wiring

    IMPORTANT! Purple The pink parking wire MUST Stripe be connected to the switched side of the parking break circuit (the part that becomes grounded when the brake is applied). Right Speaker (Rear) UV8035 R (Red) L (White) (Yellow) (Yellow) (Yellow)

  • Page 7: Detachable Control Panel

    UV8035 DETACHABLE CONTROL PANEL • DO NOT insert the control panel from the left side. Doing so may damage it. • Do not put pressure on the display or control buttons when handling the front panel. • Do not touch the electrical terminals on the front panel or main unit.

  • Page 8: Remote Control

    REMOTE CONTROL The remote control will allow you to control the advanced functions of the UV8035. MODE VOLUME AUDIO GOTO 2-ZONE DISPLAY 1. MUTE/Power 2. Open/Close/Eject 3. Audio Menu 4. Mode (select playing source) 5. Volume Up 6. Volume Down 7.

  • Page 9: Replacing The Battery

    UV8035 29. Press repeatedly to select a number in the tens position for direct track entry (for example, to select track “44”, press the +10 button four times and then press the 4 but- ton). 30. DVD MENU/PBC • DVD Menu •...

  • Page 10: Operating Instructions

    See “AV Connector” on page 12 to learn how to reverse the AV IN/OUT connector from IN to OUT. UV8035 NOTE: For iPod or Zune video playback, please refer to owner's manual that came with your device. Please complete any photo or video setting adjustments before connecting the device to this unit.
  • Page 11 UV8035 Display Selector (D) You can change the way playback information is displayed to suit your needs. Press the D/ DISP button (7) to alternate between the File Menu and Elapsed Time interface screens, shown below: File Menu Interface Elapsed Time Interface...
  • Page 12 To adjust Bass options, press the rotary encoder (4) until “BASS” appears in the display. Continue pressing the rotary encoder to access the following Bass settings: UV8035 • LEVEL Turn the rotary encoder clockwise to increase or counter-clockwise to decrease the Bass level from “-6”...
  • Page 13 UV8035 • LEVEL Turn the rotary encoder clockwise to increase or counter-clockwise to decrease the Mid-Range level from “-6” to “+6”. “00” represents a flat response. • Mid-Range Center Frequency (C.Frq) Turn the rotary encoder to adjust the Mid- Range Center Frequency to 500Hz, 1KHz, 1.5KHz, or 2.5KHz.
  • Page 14 To turn iX-BASS on, press the iX-BASS button (16) on the front panel and then use the rotary encoder to select “LOW”, “MID”, or “HIGH”. “XBAS” appears on the LCD. Press the IX-BASS button again to turn X-Bass off. UV8035...

  • Page 15: Tuner Operation

    NOTE: You can stop the AUTO PRESET function at any time by pressing the AS/PS button again. Mono/Stereo Reception During FM radio operation, the UV8035 will automatically pickup a stereo signal, when available (“ST” appears on the display). When no stereo signal is available, the unit automatically reverts to mono operation.

  • Page 16: Cd/Dvd Operation

    • Press the button on the remote control or the 6< button (6) on the control panel UV8035 when the highlighted file is in the column to the far left to display the previous ten files. • Press OK when a file number is highlighted or after numeric input to begin playback of the selected file.
  • Page 17 UV8035 Track Selection The Track Select functions are used to quickly access the beginning of a track/chapter. Each time the track up (|||<) button (18) is pressed, the next higher track/chapter is selected, as shown on the display panel. Each time the track down (>|||) button (19) is pressed, the previous...

  • Page 18: Vcd Playback Control (Pbc)

    DVD embedded information. the limit is reached, an expired error is displayed and the movie will not play again. UV8035 JPEG CD Operation After inserting a disc with JPEG files, the unit will search for files with appropriate formats and then begin to play an image slideshow starting with the first picture.

  • Page 19: Memory Card Operation

    UV8035 MEMORY CARD OPERATION This unit can play MP3, WMA, JPEG and MP4 files stored on an SD or MMC Memory card. Inserting an SD or MMC Card 1. Detach the front panel. 2. Insert memory card with label side up.

  • Page 20: Dual Zone Operation

    “Tuner” and for Rear zone is "DVD". • The default Volume level is "12" for both Front and Rear zone audio output (or the UV8035 selected VOL PGM level indicated in the System Setup menu). • The LCD display is defaulted to display the Front zone mode.

  • Page 21: System Setup Menu

    OSD Menu Enable/disable the display of OSD information during disc playback. NOTE: DivX is an optional feature of the DVD chipset used in this product. This option is not enabled on the UV8035. UV8035...
  • Page 22 NOTE: 'TV output' and 'TV aspect ratio' are used to describe functions of the video screen. The UV8035 is not equipped with a TV tuner. Priority Content Select DVD Audio or DVD Video playback priority.

  • Page 23: Care And Maintenance

    UV8035 CARE AND MAINTENANCE Your new radio/CD/DVD player does not require any maintenance. However, proper understanding of its use and handling will help you obtain maximum enjoyment of its capabilities. We recommend that you keep this manual for reference on the many features of this unit as well as how to set the clock.

  • Page 24: Specifications

    Mono Sensitivity: 18dBf 50dB Stereo Quieting Sensitivity: 20dBf Stereo Separation @ 1kHz: >30dB Frequency Response: 30Hz to 12kHz, -3dB UV8035 AM Tuner Tuning Range: 530kHz - 1710kHz Sensitivity @ 20dB Signal to Noise: 30uV Frequency Response: 30Hz - 2kHz, -3dB Monitor Screen Size: 3.5"...

  • Page 25: Limited Warranty

    CD or Multimedia Radios/Headunits Audiovox Electronics Corporation (“the Company”) is committed to quality and customer service, and are pleased to offer you this Warranty. Please read it thoroughly and contact the Company at 1-800- 323-4815 with any questions. Who is covered? The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or Canada.
  • Page 26 Audiovox Electronics Corporation 150 Marcus Boulevard Hauppauge, NY 11788 1-800-323-4815 www.audiovox.com ©2007 Audiovox v.090307...
