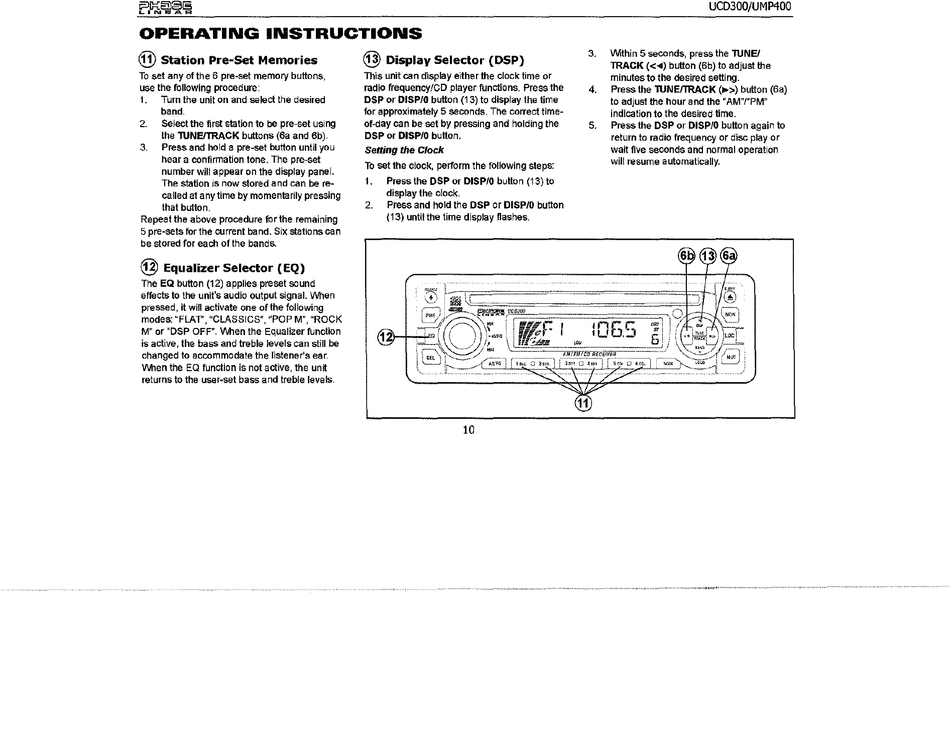

Phase Linear UCD300 Owner's Manual page 10

OPERATING INSTRUCTIONS
®
Station Pre-Set Memories
To set any of the 6
pre~set
memory buttons,
use the following procedure:
1. Turn the unit on and select the desired
band.
2. Select the first station to be pre-set using
the lUNEIlRACK buttons (6a and 6b).
3. Press and hold a pre-set button until you
heara confirmation tone. The pre-set
number will appear on the display panel.
The station is now stored and can be re-
called at any time by momentarily pressing
that button.
Repeat the above procedure for the remaining
5 pre-sets for the current band. Six stations can
be stored for each of the bands.
@
Equalizer Selector (EQ)
The EQ button (12) applies preset sound
effects to the unit's audio output signal. When
pressed,
it will
activate one of the following
modes: "FLAT', "CLASSICS", "POP M", "ROCK
M" or "DSP OFF". \lVhen the Equalizer function
is active, the bass and treble levels can still be
changed to accommodate the listener's ear.
VVhen the EQ function is not active, the unit
returns to the user-set bass and treble levels.
@
Display Selector (DSP)
This unit can display either the clock time or
radio frequency/CD player functions. Press the
DSP or DISP/O button (13) to display the time
for approximately 5 seconds. The correct time-
of-day can be set by pressing and holding the
DSP or DISP/O button.
Setting the Clock
To
set
the clock, perform the following steps:
1. Press the DSP or DtSP/O button (13) to
display the clock.
2. Press and hold the DSP or DtSP/o button
(13) until the time display flashes.
10
UCD300/UMP400
3. Within 5 seconds, press the TUNE!
TRACK
« .. )
button (6b) to adjust the
minutes to the desired setting.
4. Press the lUNE/TRACK ( ..
»
button (6a)
to adjust the hour and the "AM"I"PM"
indication to the desired time.
5. Press the DSP or DISPJO button again to
return to radio frequency or disc play or
wait five seconds and normal operation
will resume automatically.
