Phase Linear BT1611I - Radio Quick Start Manual

IMPORTANT: Incorrect wiring connections
can damage the unit. Follow the wiring
instructions carefully, or have the
installation handled by an experienced
technician.

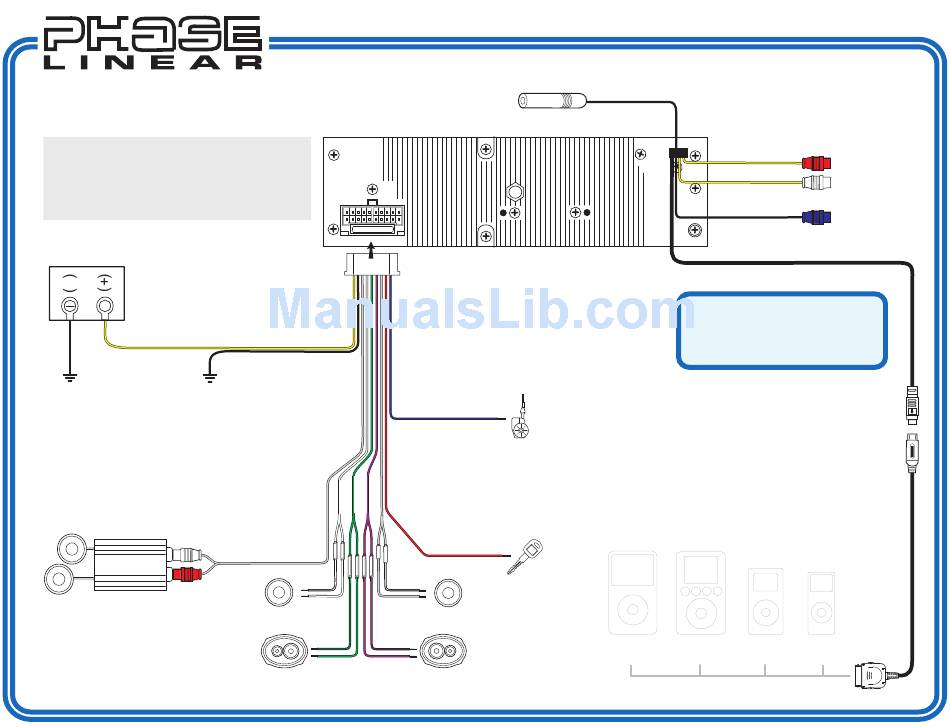

BATTERY
-
Connect the yellow wire to the battery
or 12 volt power source that is always
live. This wire MUST be connected
for the radio to work.
CHASSIS GROUND
Connect the black wire to the factory ground wire. If a
factory ground wire is not provided, locate a clean,
unpainted metal part of the dash and secure the ground
wire with a "ring" terminal and a sheet metal screw.
RCA OUTPUT
Connect to an
optional amplifier.
AMP
Left Front
Left Rear
Phase Linear BT1611i Receiver Quick Start Guide
15
ACCESSORY
Connect the red wire to the factory
Accessory or Ignition wire, which
receives power when the key is
turned on.
- -
white/black gray/black
+ +
white gray
- -
green/black purple/black
+
+ green purple
SPEAKERS
Printed in China
POWER ANTENNA/
REMOTE AMP TURN ON LEAD
Positive (+) 12VDC output when the head
unit is turned on. Connect the blue wire to
a motorized antenna or to an amplifier.
Right Front
iPod Gen5
Right Rear
ANTENNA CONNECTOR
Connect to the factory or aftermarket antenna lead.
(Optional extensions or adapters may be necessary
depending on the type of vehicle you have.)
AUXILIARY
INPUT
SUBWOOFER
OUTPUT
Need help?
For technical assistance, call
the Audiovox customer
support line at 1-800-323-4815.
jLINK iPod CABLE
iPod iPod Mini iPod Nano
