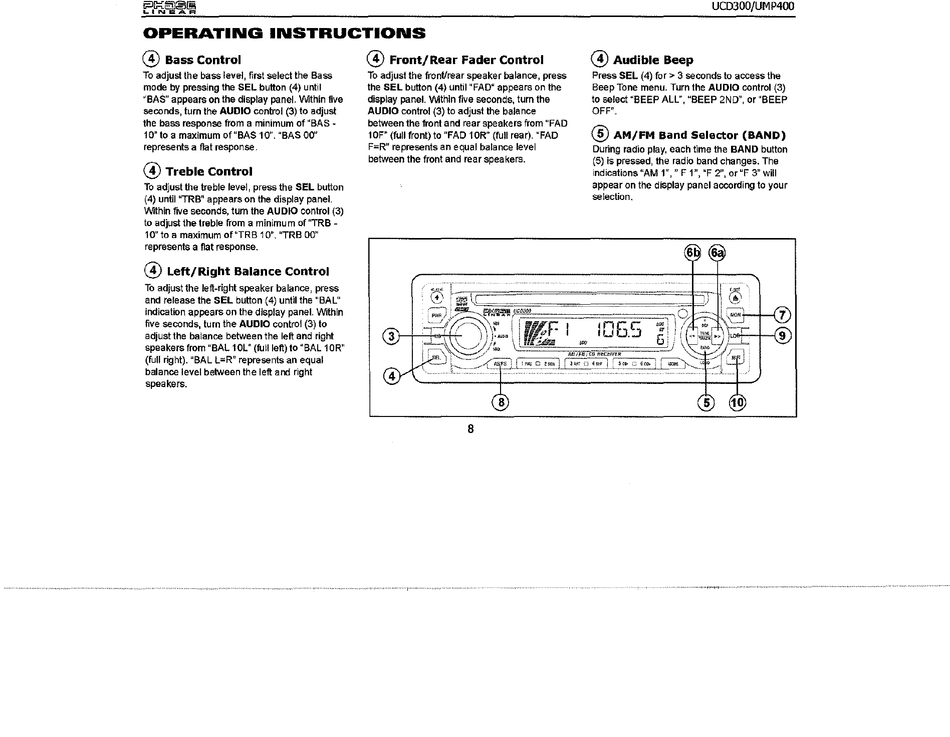

Phase Linear UCD300 Owner's Manual page 8

OPERATING INSTRUCTIONS
o
Bass Control
To adjust the basslevel, first select the Bass
mode by pressing the SEL button (4) until
"BASH appears on the display panel. Within five
seconds, turn the AUDIO control (3) to adjust
the bass response from a minimum of "BAS -
10" to a maximum of "BAS 10". ~BAS 00"
represents a flat response.
o
Treble Control
To adjust the treble level, press the SEL button
(4) until "TRB" appears on the display panel.
Within five seconds, turn the AUDIO control (3)
to adjust the treble from a minimum of "TRB -
10" to a maximum of~TRB 10", "TRB 00"
represents a flat response.
o
left/Right Balance Control
To adjust the left-right speaker balance, press
and release the SEL button (4) until the "BAL"
indication appears on the display panel. Within
five seconds, turn the AUDIO control (3) to
adjust the balance between the left and right
speakers from "BAL 1 OL" (fuJlleH) to "BAL 1 OR"
(full right). "BAL L=R" represents an equal
balance level between the left and right
speakers.
o
Front/Rear Fader Control
To adjust the front/rear speaker balance, press
the SEL button (4) until "FAD" appears on the
display panel. Within five seconds, turn the
AUDIO control (3) to adjust the balance
between the front and rear speakers from "FAD
10F" (full front) to "FAD 1 OR" (full rear). "FAD
F=R" represents an equal balance level
between the front and rear speakers.
3
4
8
UCD300/UMP400
o
Audible Beep
Press SEL (4) for> 3 seconds to access the
Beep Tone menu. Turn the AUDIO control (3)
to select "BEEP ALL", "BEEP 2ND", or "BEEP
OFF".
®
AM/FM Band Selector (BAND)
During radio play, each time the BAND button
(5) is pressed, the radio band changes. The
indications "AM 1", " F 1", "F 2", or"F 3" will
appear on the display panel according to your
selection.
