UCD300/UMP400

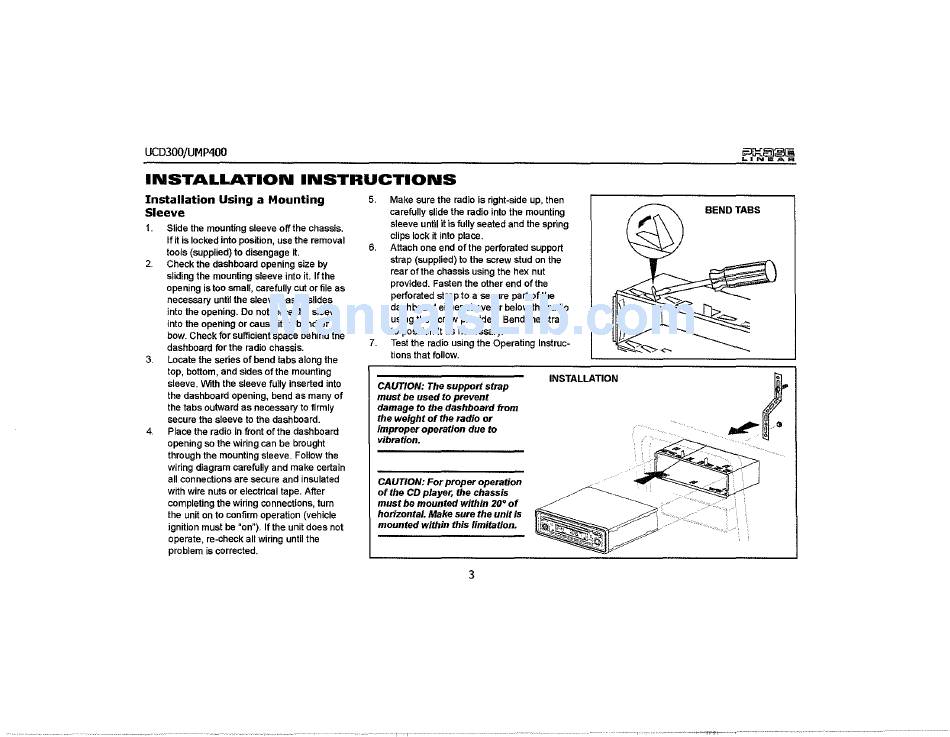

INSTALLATION INSTRUCTIONS
Installation Using a Mounting
Sleeve
1. Slide the mounting sleeve off the chassis.
If it is locked into position, use the removal
tools (supplied) to disengage tl.
2. Check the dashboard opening size by
sliding the mounting sleeve into it. If the
opening is too small, carefully cut or file as
necessary until the sleeve easily slides
into the opening. Do not force the sleeve
into the opening or cause it to bend or
bow. Check for sufficient space behind the
dashboard for the radio chassis.
3. Locate the series of bend tabs along the
top, bottom, and sides of the mounting
sleeve. With the sleeve fully inserted into
the dashboard opening, bend as many of
the tabs outward as necessary to firmly
secure the sleeve to the dashboard.
4. Place the radio in front of the dashboard
opening so the wiring can be brought
through the mounting sleeve. Follow the
wiring diagram carefully and make certain
all connections are secure and insulated
with wire nuts or electrical tape. After
completing the wiring connections, turn
the unit on to confirm operation (vehicle
ignition must be "on"). If the unit does not
operate, re-check all wiring until the
problem is corrected.
5.
6.
7.
Make sure the radio is right-side up, then
carefully slide the radio into the mounting
sleeve until it is fully seated and the spring
clips lock it into place.
Attach one end ofthe perforated support
strap (supplied) to the screw stud on the
rear of the chassis using the hex nut
provided. Fasten the other end of the
perforated strap to a secure part ofthe
dashboard either above or below the radio
using the screw provided. Bend the strap
to position it as necessary.
Test the radio using the Operating Instruc-
tions that follow.
CAUTION: The support strap
must be used to prevent
damage to the dashboard from
the weight of the radio or
Improper operation due to
vibration.
CAUTION: For proper operation
of the CD player, the chassis
must be mounted within 20° of
horizontal. Make sure the unit is
mounted within this limitation.
3
INSTALLATION
BEND TABS
