User Operating Instructions for Atmos InterOpen HE22 Condensing Boiler
First ask your installer to instruct you thoroughly about filling, de-
aerating and general use of the appliance and the total installation.
General operation

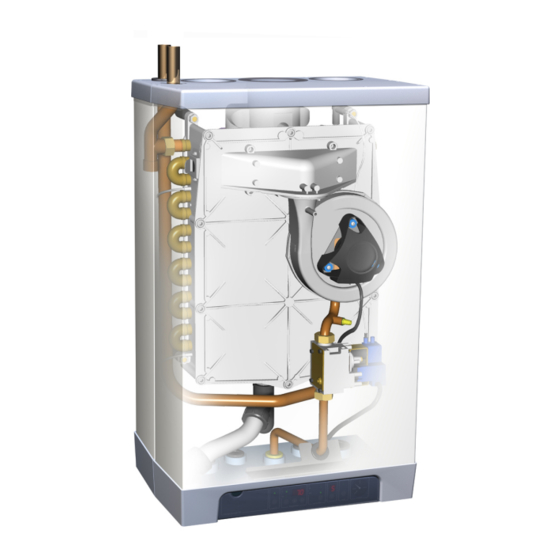

The Atmos InterOpen wall-mounted gas boiler is a balanced flue
appliance suitable for open vent systems with a header tank. The
appliance is designed for delivering heat to the water of a central heating
system and, if required, heating hot water via an indirect tank. The Atmos
InterOpen wall-mounted gas appliance is a modulating high efficiency
(Sedbuk B) boiler. This means that the power is adjusted to the heat
demand.
In the aluminium heat exchanger is an integrated copper circuit.
The appliance has been provided with an electronic burner controller that
controls the fan with the heat demand, opens the gas valve and ignites
the burner, continuously monitors the flame and controls it dependent on
the power required.
The Atmos InterOpen boiler has the CE quality mark and an IP44
enclosure.

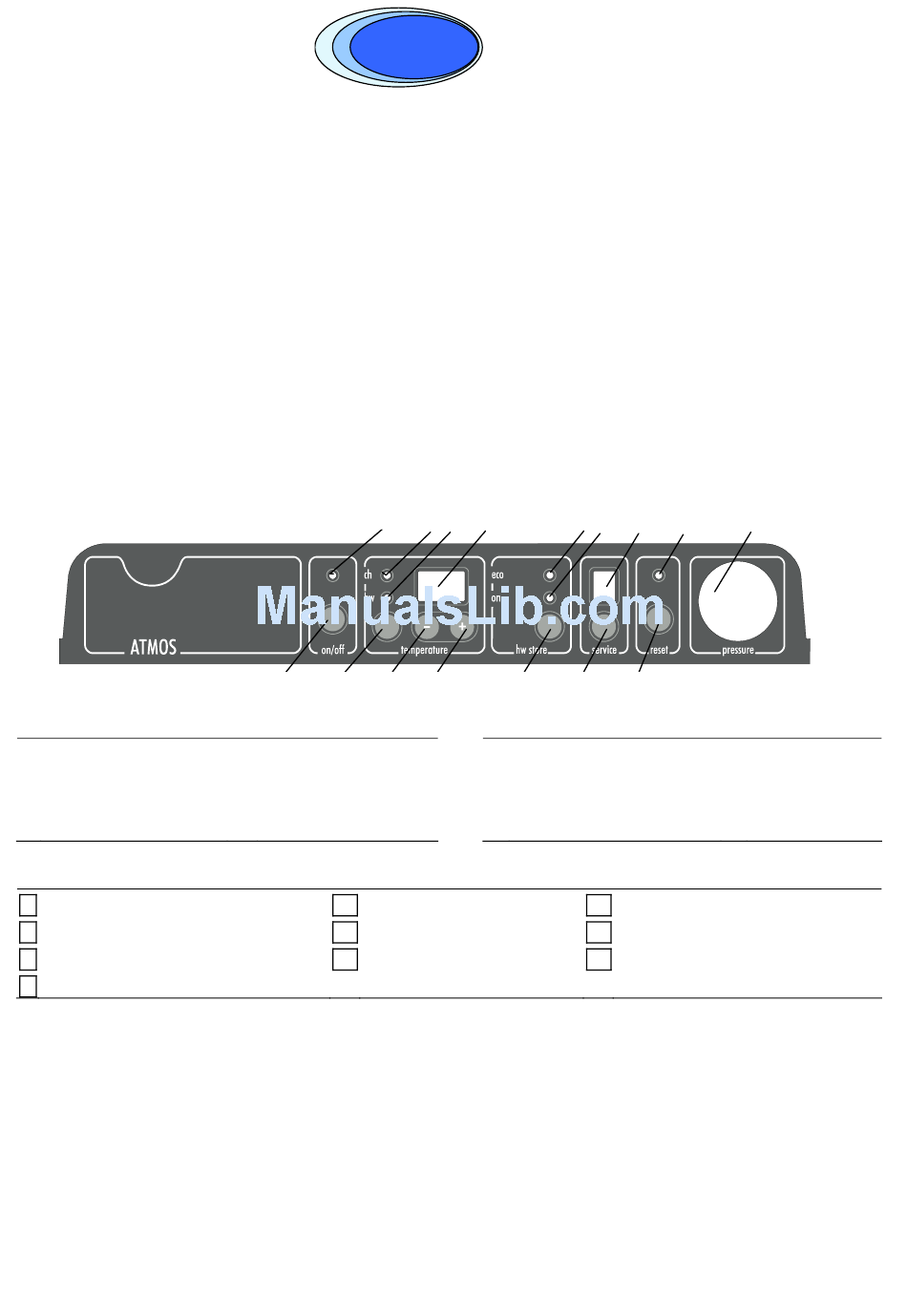

Displays
1. On/Off LED
2. CH LED
3. Hot water LED **
4. Temperature display
5. Eco mode LED **
Operating conditions on the service display (7):
—
Off (frost protection active)
Stand-by
0
Pump overrun CH
1
Required temperature reached
**Note that controls and displays marked in this way are not applicable for the HE22 appliance.
When the red fault LED (above the Reset button) is on, the burner controller has detected a fault. In the service display, a flashing fault code appears.
1/2
ATMOS
ATMOS
1
A B C
6. Comfort function On LED **
7. Service display
8. Fault LED
9. CH pressure gauge **
2
Self-test
3
Fan
4
Ignite burner
InterOpen
Central Heating (CH) operation & Tank (if applicable)
The controller adjusts the fan speed, and hence the heating power,
according to the set CH supply water temperature, the latter being
displayed on the temperature display (adjustable between 30 and 90 °C,
using + / - buttons).
The appliance has a pump output. If the external pump (not supplied as
part of the HE22 appliance) is connected to this output, a pump overrun
time of 1 minute is provided (factory setting, but can be adjusted) to
dissipate the heat. Also, the pump will automatically run once every 24
hours to prevent it from getting stuck (if there is no heat demand).
2 3 4 5 6
D E F
Controls
A. On/Off button
B. CH/Hot water switch button
C. – button
D. + button
5
6
7
7 8 9
G
E. Comfort button **
F. Service button
G. Reset button
CH operation
Domestic hot water operation **
Heating the appliance (heat exchanger)
