Please install the motherboard into the chassis.

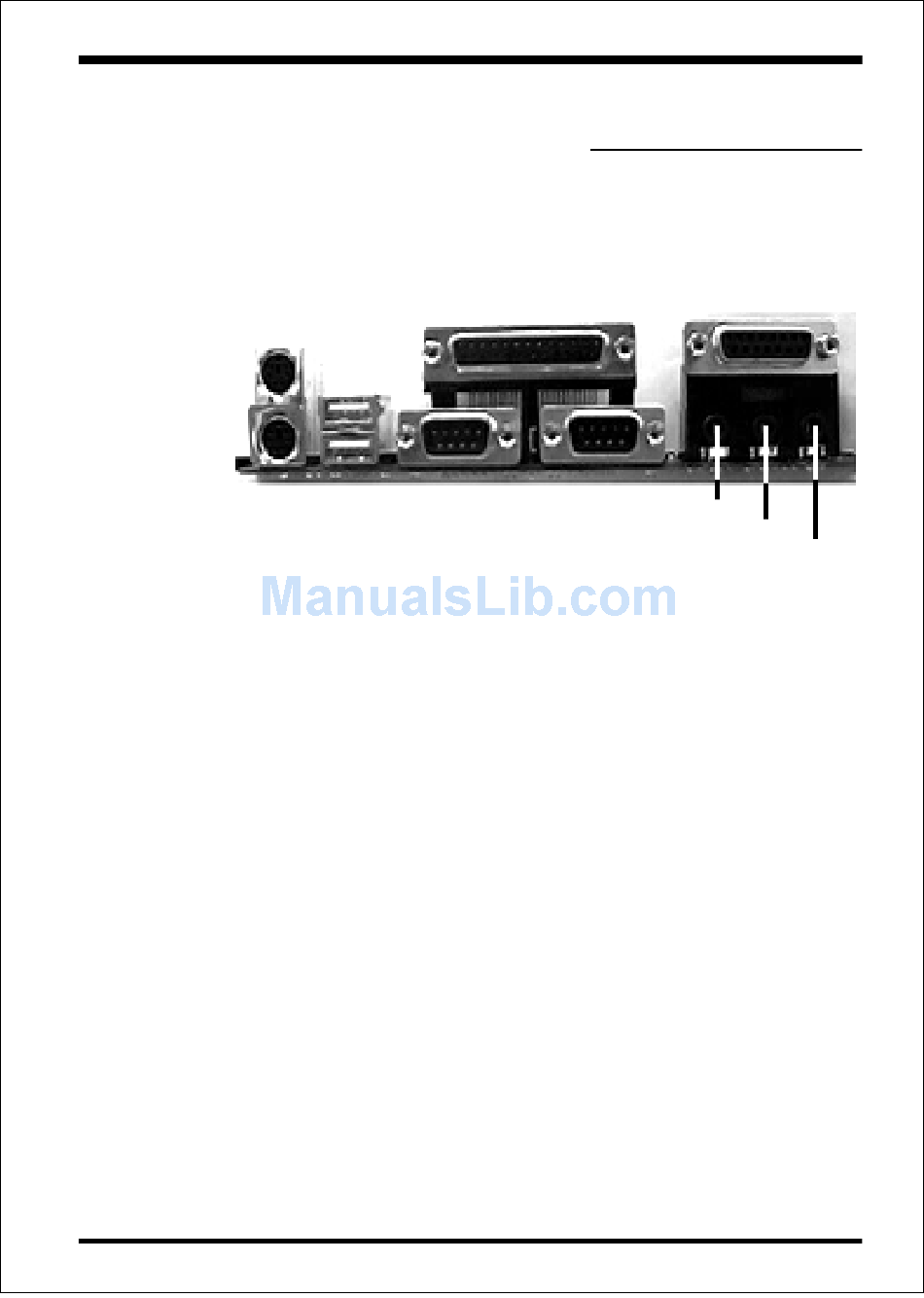

Now that your motherboard is installed you are ready to connect all your
connections (figure 6).
PS/2 Mouse
PS/2
KEYBOARD
J2:
Chassis Panel Connector
• Power LED, Speaker, Reset
J3:
Turbo LED, HDD LED, IR Conn., Sleep/Power_ON
J4:
CPU Fan Power
• A plug-in for the CPU Fan Power
J6:
Chassis Fan Power
• A plug-in for the chassis Fan Power
J7:
WOL Connector
IDE1: Primary IDE
IDE2: Secondary IDE
FDD1: Floppy Controller Connector
PW1: ATX Power Connector
• 20-pin power connector
CD1: CD Audio Connector
AUX1:AUX Audio Connector
parallel port
USB port
COM1
Figure 6
Installation
Section 3-3
Device Connectors
Joystic/Midi port
COM2
Speaker
Line_in
Page 3-7
MIC
