EPOX EP-3VBA User Manual

Isa/pci agp mainboard with onboard pci ide and super multi-i/o
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EP-3VB
EP-3VB A A A A A
EP-3VB
EP-3VB
EP-3VB

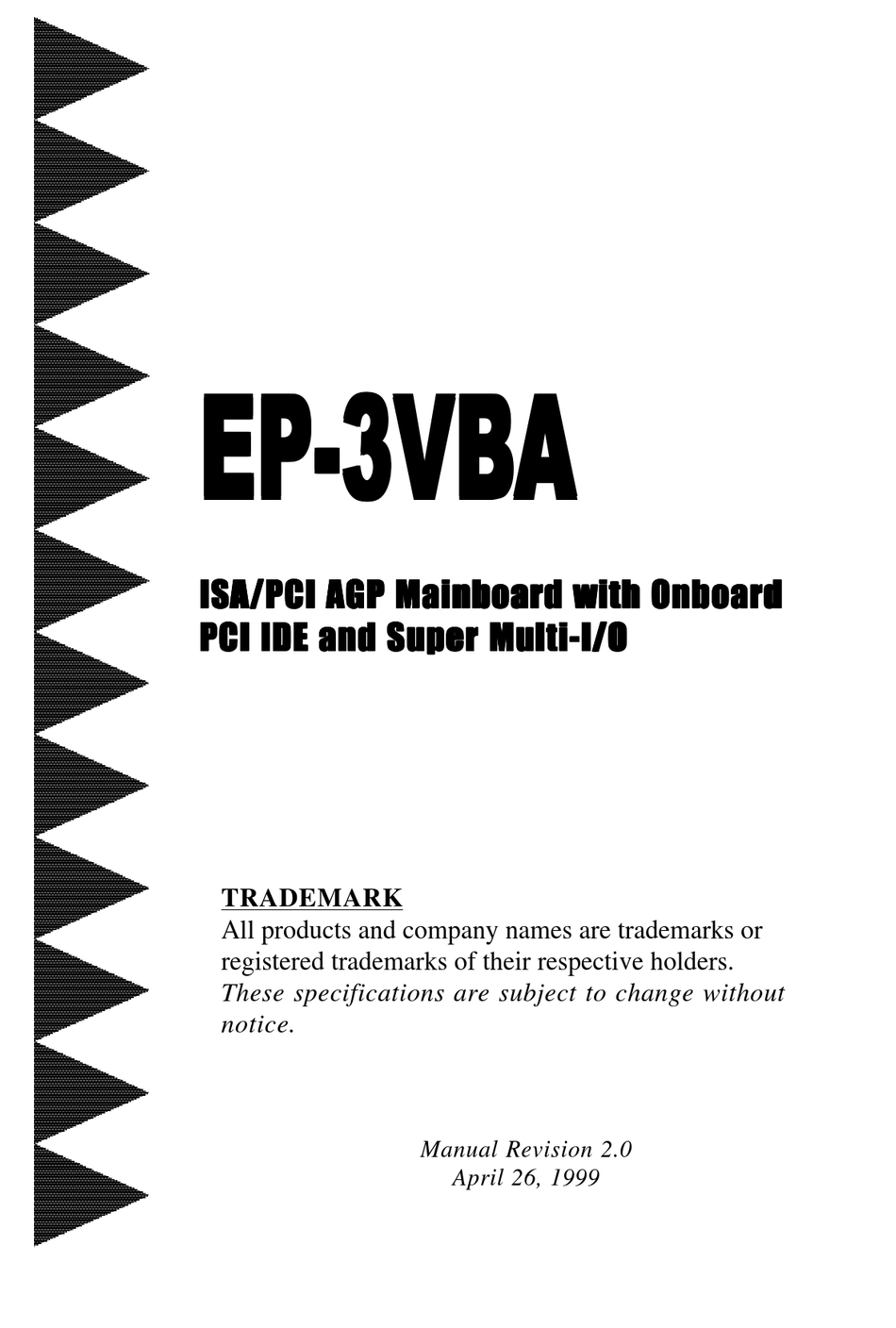

ISA/PCI AGP Mainboard with Onboard
ISA/PCI AGP Mainboard with Onboard
ISA/PCI AGP Mainboard with Onboard
ISA/PCI AGP Mainboard with Onboard
ISA/PCI AGP Mainboard with Onboard
PCI IDE and Super Multi-I/O
PCI IDE and Super Multi-I/O
PCI IDE and Super Multi-I/O
PCI IDE and Super Multi-I/O
PCI IDE and Super Multi-I/O
TRADEMARK
All products and company names are trademarks or
registered trademarks of their respective holders.
These specifications are subject to change without
notice.
Manual Revision 2.0
April 26, 1999

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP-3VBA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EPOX EP-3VBA

Summary of Contents for EPOX EP-3VBA

  • Page 1 EP-3VB EP-3VB A A A A A EP-3VB EP-3VB EP-3VB ISA/PCI AGP Mainboard with Onboard ISA/PCI AGP Mainboard with Onboard ISA/PCI AGP Mainboard with Onboard ISA/PCI AGP Mainboard with Onboard ISA/PCI AGP Mainboard with Onboard PCI IDE and Super Multi-I/O PCI IDE and Super Multi-I/O PCI IDE and Super Multi-I/O PCI IDE and Super Multi-I/O...

  • Page 2: Bios Upgrades

    If your retailer can not help, you may E- Mail us with any questions at the following address tech@epox.com Record your serial number before installing your EP-3VBA mainboard. (the serial number is located near the ISA slots at the edge of the board)

  • Page 3: User Notice

    EPoX has been advised of the possibility of such damages arising from any defect or error in the manual or product. EPoX may review this manual from time to time without notice. For updated BIOS, drivers, or product release information you may visit EPoX’s home page at: http://www.epox.com...

  • Page 4: Table Of Contents

    System Block Diagram ........1-4 Section 2 Features EP-3VBA Features ..........2-1 Section 3 Installation EP-3VBA Detailed Layout ........ 3-1 Easy Installation Procedure Configure DIP Switch........3-3 System Memory Configuration ......3-4 Device Connectors ..........3-7 External Modem Ring-in Power On and Keyboard Power On Function (KBPO) .....
  • Page 5 EP-3VBA Change Supervisor or User Password ....4-24 IDE HDD Auto Detection ........4-25 HDD Low Level Format........4-27 Save & Exit Setup ..........4-27 Exit Without Saving ........... 4-27 Section 5 Appendix Appendix A Memory Map ............. A-1 I/O Map ............. A-1 Timer &...
