10. POWER SUPPLY & AUDIO SECTION
KH4 and KS4 modules are using PowerCon connectors for power supply. It is possible, using the link connector, to have more modules
on the same power supply line. Pay attention to not exceed the maximum powercapability of PowerCon connectors. The Audio section
includes a female balanced XLR connector and a male XLR connector wired in parallel. Thanks to these connectors it is possible to feed
a module and to send the same signal to another one through the LINK connector. It is possible to connect till 30 different modules in
parallel on the same balanced line (with a source of 600 ohm
set levels. The ground lift switch can help to solve ground loop problems separating loudspeaker groud from signal cable's ground.
USER'S MANUAL
output impedance). A Level Control potentiometer (PAD) allows different

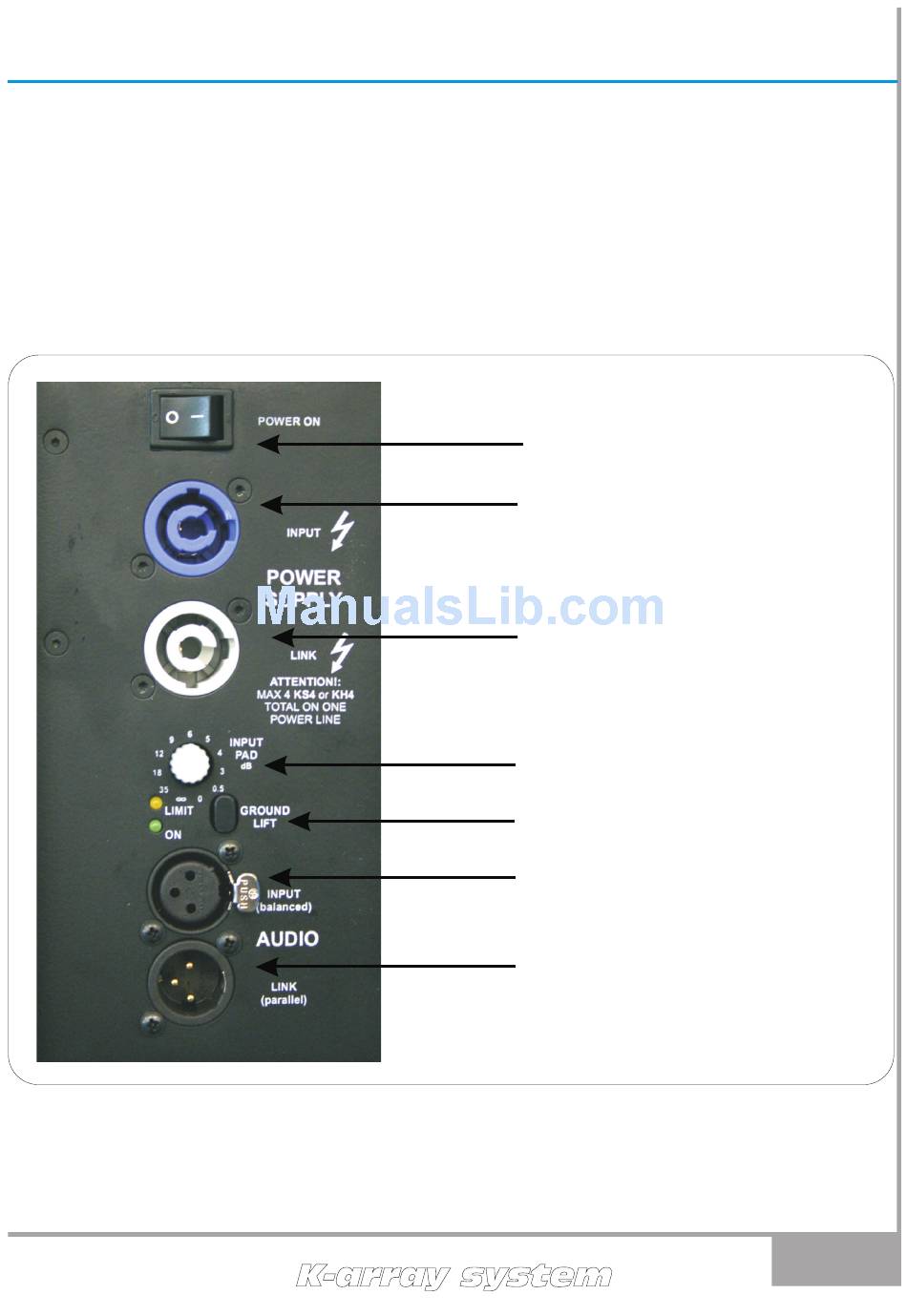

MAIN POWER SWITCH
MAIN AC POWER SUPPLY IN
MAIN AC POWER SUPPLY LINK OUT
KH4/KS4 max 6A
AUDIO LEVEL
GROUND CIRCUIT LOOP SWITCH
BALANCED AUDIO INPUT
BALANCED AUDIO PARALLEL LINK
