10. POWER SUPPLY & AUDIO SECTION
The KH15 modules are using PowerCon connectors for power supply. It is possible, using the link connector, to have more modules on
the same power supply line. Pay attention to not exceed the maximum powercapability of PowerCon connectors.
section includes a female balanced XLR connector and a male XLR connector wired in parallel. Thanks to these connectors it is possible
to feed a module and to send the same signal to another one through the LINK connector. It is possible to connect till 30 different modules
in parallel on the same balanced line (with a source of 600 ohm
set levels. The ground lift switch can help to solve ground loop problems separating loudspeaker groud from signal cable's ground.

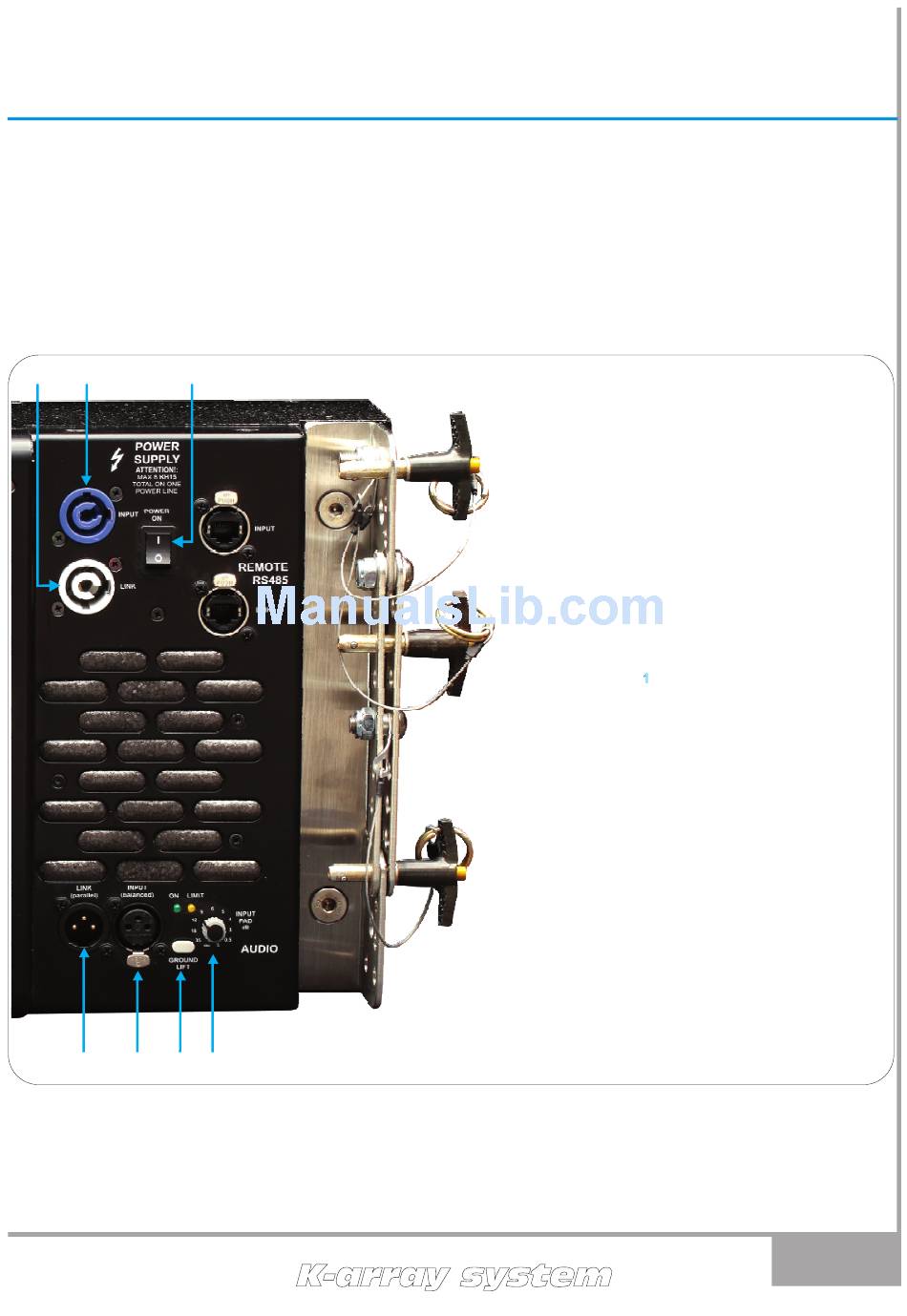

1 2
4 5 6
USER'S MANUAL
3
7
output impedance). A Level Control potentiometer (PAD) allows different
1 . Main AC power supply LINK OUT
(max 12A @ 220 Vac)
2 . Main AC power supply IN
3 . Main power switch
4 . Balanced Audio parallel link
5 . Balanced Audio Input
6 . Ground circuit loop switch
7 . Adio level
P. 15
The Audio
