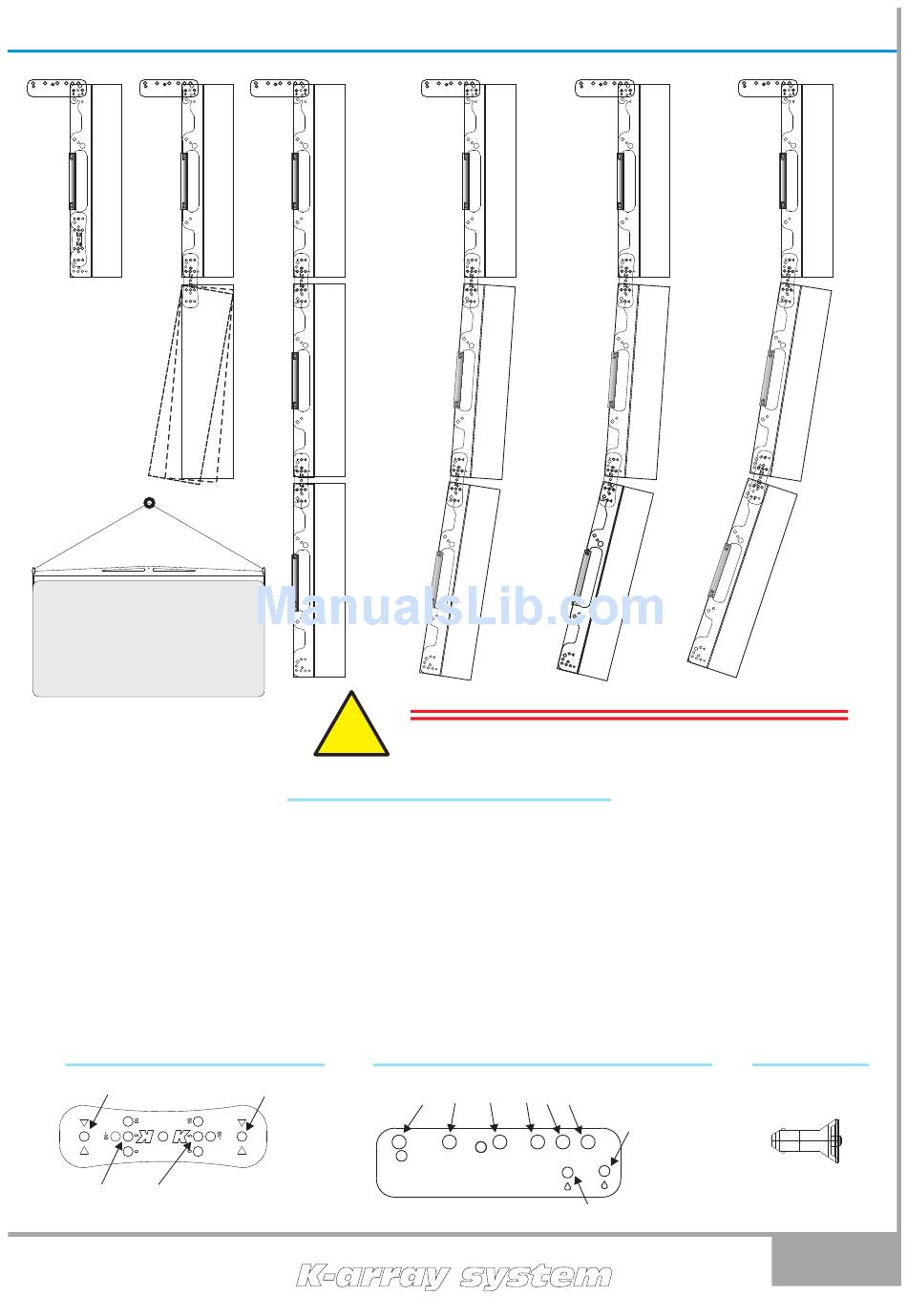

11. SYSTEM CONFIGURATION
0°
5°
10°
DS = driver slide
KH4
System
2 x KH4 + 4 x KS4
4 x KH4 + 8 x KS4
6 x KH4 + 12 x KS4
System
2 x KH4 + 4 x KS4
4 x KH4 + 8 x KS4
6 x KH4 + 12 x KS4
K4BUTTERFLY
Rotation point
Tilt degrees settings
set the same value on each speaker for the
right tilt angle
USER'S MANUAL
0°
0°
!
KH4 System Spl calculations
Vert. Coverage
From 7° to 37°
From 7° to 47°
From 7° to 57°
SPL @ 10mt SPL @ 20mt SPL @ 40mt SPL @ 80mt
128dB
134dB
138dB
K4TILTER
Rotation point
5°
DS 5
10°
5°
DS 5
DS 10
WARNING
Do not assemble more than 6 frame in the same array
SPL @1mt
140dB +/- 3dB
146dB
150dB
124dB 118dB
130dB 124dB
134dB 128dB
Array tilt points 1 - 6
to set the general array tilt
10°
5°
DS 5
DS 7
10°
DS 3
DS 10 DS 10
+/- 4dB
+/- 6dB
112dB
118dB
122dB
KPIN
Rotation point
Fixing point
DS 5
DS 5
DS 7
DS 3
