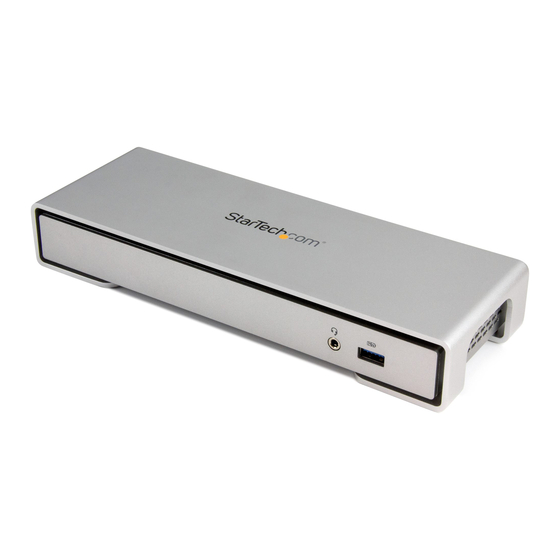

Thunderbolt™ 2 4K Laptop Docking Station w/ 4K HDMI® or
mDP, USB Fast-Charge, eSATA, Digital Audio - TB Cable Included
TB2DOCK4KDHC
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/07/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com TB2DOCK4KDHC
Summary of Contents for StarTech.com TB2DOCK4KDHC
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/07/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Front View ..............................2 Rear View ..............................2 Installation .....................3 Operation ....................3 USB 3.0 Charging Downstream/Fast-Charge and Sync Port ............. 3 First Generation Apple® iPad® Charging (30-Pin Connector) ............ 4 Supported Display Configurations and Resolutions .......4 Technical Support ..................6 Warranty Information ................6... -
Page 4: Introduction
Introduction Packaging Contents • 1x Thunderbolt 2 4K Laptop Docking Station • 1x 1m Thunderbolt Cable • 1x Universal Power Adapter • 3x Power Cords (NA/UK/EU) • 1x Instruction Manual System Requirements • Thunderbolt-enabled computer system with available Thunderbolt port (Thunderbolt 2 port required for full performance) •... -
Page 5: Product Diagram
Product Diagram Front View 3.5mm TRRS Headset Port (Audio/ Microphone) USB 3.0 Fast-Charge & Sync Port Rear View eSATA Port S/PDIF Gigabit HDMI Digital Audio Security RJ45 Port Port Out Port Lock Port USB 3.0 Thunderbolt Hub Ports 3.5mm 2 Ports Input Port Line-in / Microphone Port... -
Page 6: Installation
Installation The Thunderbolt Docking Station is natively supported when connected to a compatible operating system (OS support listed above), and should automatically detect and install the required drivers once connected to the Thunderbolt 2 Port on your Thunderbolt 2-enabled computer system. 1. -
Page 7: First Generation Apple® Ipad® Charging (30-Pin Connector)
Note: The front USB 3.0 port will only fast-charge a connected device that complies with the USB Battery Charging Specification Revision 1.2. First Generation Apple® iPad® Charging (30-Pin Connector) In certain scenarios, in order to charge the first generation Apple iPad, the iPad must be connected to the Docking Stations USB 3.0 fast-charge port following the below procedure. - Page 8 Max mDP / Max HDMI Output Video Output Configuration DP Output Resolution Resolution HDMI Only (Single Display) 3840x2160 Mini DisplayPort Only (Single Display) 3840x2160 Tested up to 2560x1440p on HDMI + Thunderbolt (Dual Display) 3840x2160p a Thunderbolt Display Instruction Manual...
-
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
