StarTech.com TB3DKM2HDL Quick Start Manual

Thunderbolt™ 3 Dual HDMI Mini Bus Powered Docking Station for Laptops | 4K 60Hz | 28 cm Cable

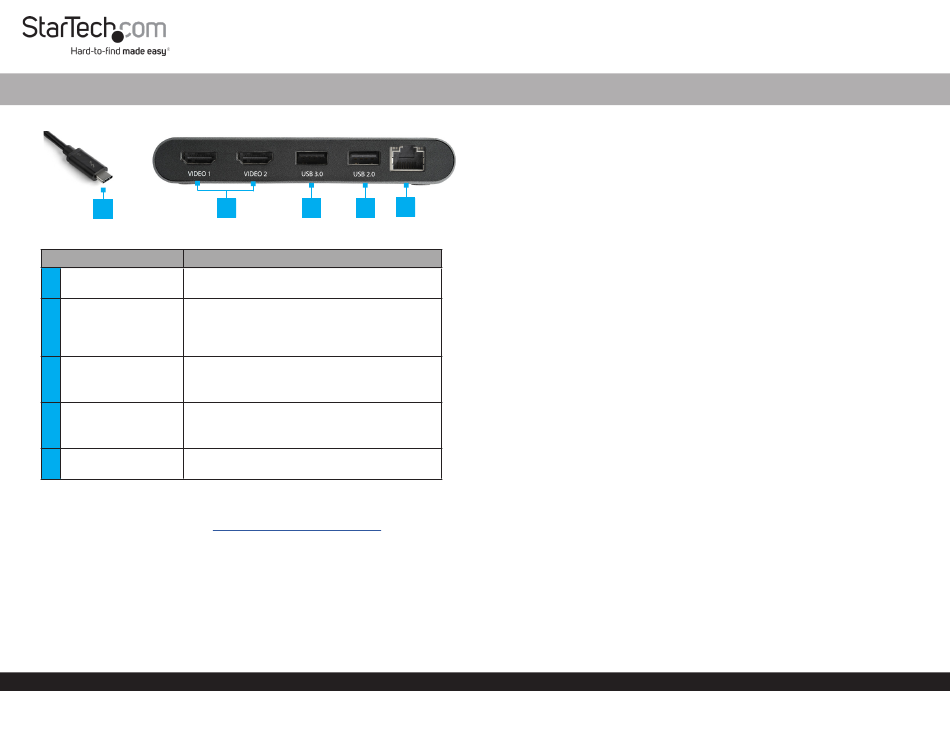

Product Diagram (TB3DKM2HDL)
1
Component
Thunderbolt 3 Host
•
1
Connector
•
HDMI Ports x 2
2
•
•
3 USB 3.0 Port
•
•
4 USB 2.0 Port
•
•
5 RJ45 Port
Requirements
For the latest requirements, please visit
Host Laptop w/ Thunderbolt 3 port x 1
•
HDMI Display Device x 2
•
Notes: A 4K-capable display is required to achieve 4096 x 2160p resolution.
Video output capabilities are dependent on the video card and hardware specifications of
your connected host laptop.
You can connect a different type of display, such as a DisplayPort or VGA monitor using
an active video adapter (sold separately):
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2 3 4
Function
Connect the Docking Station to the Host
Laptop.
Connect an HDMI Display Device to the
Docking Station.
Two HDMI or 4K Display Devices can be
connected to the Docking Station.
Connect a USB Peripheral (mouse, flash drive,
etc.) to the Docking Station.
Data transfer up to 5Gbps.
Connect a USB Peripheral (mouse, flash drive,
etc.) to the Docking Station.
Data transfer up to 480Mbps.
Connect a Network Device to the Docking
Station.
www.startech.com/TB3DKM2HDL
HDMI Cables x 2
•
Operating System:
Windows® 10, 8, and 8.1
•
macOS 10.13 and 10.12
•
Installing the Docking Station
5
When you connect the Docking Station to a computer that's running Windows 10,
Windows 8/8.1 or macOS, the required drivers are automatically installed.
Connect an HDMI Cable (sold separately) to the HDMI Port on the Docking Station
1.
and the other end to an HDMI port of a Display Device.
Repeat step 1 to connect a second Display Device.
2.
Connect a USB Peripheral Device to the USB 3.0 and USB 2.0 Ports on the
3.
Docking Station (e.g. USB devices, etc.).
Connect a CAT5e/6 Cable to the RJ45 Port on the Docking Station and the other
4.
end to an RJ45 port on a Network Device.
Connect the Thunderbolt 3 Host Connector on the Docking Station to a
5.
Thunderbolt 3 port on the Host Laptop.
Note: In Windows 10 or 8/8.1 you might see a pop-up message requesting permission
to allow the docking station to connect to your computer. If you see this pop-up
message, select Always Connect from the list and click OK. If required, follow any
other on-screen instructions to complete the installation.
Configure your display device
Use the Windows or macOS to adjust display settings for each connected monitor.
Supported Video Resolutions
Thunderbolt technology supports both video and data throughput. However, it
prioritizes video bandwidth to help ensure seamless display performance. The
performance of the remaining docking station functions depends entirely on the
display configuration you used.
Quick-Start Guide
Manual Revision: March 31, 2020 9:44 AM
