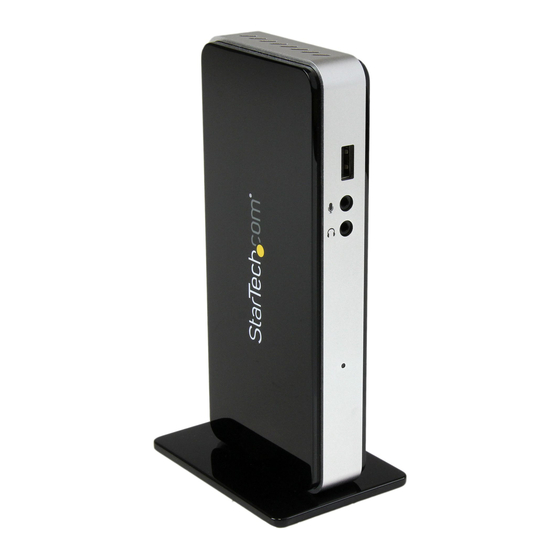

Thunderbolt™ Laptop Docking Station with HDMI®
or Mini DisplayPort and Gigabit Ethernet
TBDOCKHDPBC
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/18/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com TBDOCKHDPBC
Summary of Contents for StarTech.com TBDOCKHDPBC
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/18/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 Operation ....................5 Windows ............................... 5 Mac OS ................................8 Supported Video Resolutions ..............10 Specifications ..................10 Technical Support ..................12 Warranty Information ................12 Instruction Manual... -
Page 4: Product Diagram
Product Diagram Front View USB 3.0 3.5mm Microphone 3.5mm Headphone Rear View USB 3.0 Thunderbolt HDMI Gigabit Ethernet DC Jack Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1 x Thunderbolt Docking Station • 1 x 1m Thunderbolt Cable • 1 x Stand (w/ screws) • 4 x Rubber Feet • 1 x Universal Power Adapter (NA/UK/EU) • 1 x Installation CD • 1 x Instruction Manual System Requirements •... -
Page 6: Installation
Installation 1. Connect the included power adapter from an AC electrical outlet to the Thunderbolt Docking Station. 2. Connect the Docking Station to the computer using the included Thunderbolt cable. Both Windows and Mac systems should automatically detect and install the required drivers. - Page 7 4. Connect your LAN, audio, USB and Thunderbolt peripherals as desired. Note: After following the above connection instructions, the dock should be ready to use. In the event that some drivers are not able to auto-install on your system, please use the following instructions to complete the installation. Windows 1.
-
Page 8: Operation
Please ensure your operating system is updated to the latest package. If the drivers have not automatically installed in Mac OS 10.9 please contact StarTech.com technical support (www.startech.com/support) for further installation instructions. 1. Browse to www.startech.com/TBDOCKHDPBC 2. - Page 9 b) Right-click the DisplayLink tray icon ( ) in the system notification area. Screen Rotation 4 options are available: 0°(Normal), 90° (Left), 180° (Upside-Down), 270° (Right) when used with the Extended or Primary display modes. It is a useful function for some rotatable display devices.
- Page 10 Notebook Monitor Off Sets the monitor on the USB Docking Station to the main display and turns off the screen of the laptop. NOTE: This function works only when one add-on monitor is connected. Optimize For Video Optimize video playback when using Windows 7/8. Regular text may appear blurry while this mode is enabled.
-
Page 11: Mac Os
A red border will appear on the Extended screen that will show the size of the new Windows Desktop. Use the horizontal and vertical + and - buttons to manually adjust the size to properly fit the screen. NOTE: Holding the CTRL key while making adjustments allow for finer control. Mac OS Display Settings Configuring the image being displayed by the monitor(s) that are connected to the... - Page 12 ) in the top right corner, then select Open b. Click the Displays icon ( Displays Preferences Screen Rotation Select the desired display rotation for the connected monitor in Extend Mode here: Instruction Manual...
-
Page 13: Supported Video Resolutions
Supported Video Resolutions Resolution Refresh Rate 720 x 480 60 Hz 720 x 576 50 Hz 1280 x 720p 50/60 Hz 1920 x 1080p 50/60 Hz 2560 x 1440 50/60 Hz *(Thunderbolt / Mini-DisplayPort only) Specifications Host Interface Thunderbolt Chipset Intel - CactusRidge_4C (Thunderbolt) Intel - WGI210AT (LAN) Fresco Logic - FL1100-EX (USB 3.0) - Page 14 LED Indicator(s) 1 x Power Maximum Data Transfer Rate 5 Gbps (USB 3.0) 10 Gbps (Thunderbolt) 1 Gbps (Ethernet; Full-Duplex) Maximum Digital Resolution 2560x1440 (Thunderbolt / Mini DisplayPort) 1920x1080 (HDMI) Audio Support Yes (2-channel stereo, mic) Compatible Networks 10/100/1000 Mbps Ethernet Full Duplex Support Auto MDIX Power Adapter...
-
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 16 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
