Thunderbolt 2 Dual-Video Docking Station
- 2x DisplayPort
TB2DOCK4K2DP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/TB2DOCK4K2DP.
Manual Revision: 01/06/2016
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com TB2DOCK4K2DP
Summary of Contents for StarTech.com TB2DOCK4K2DP

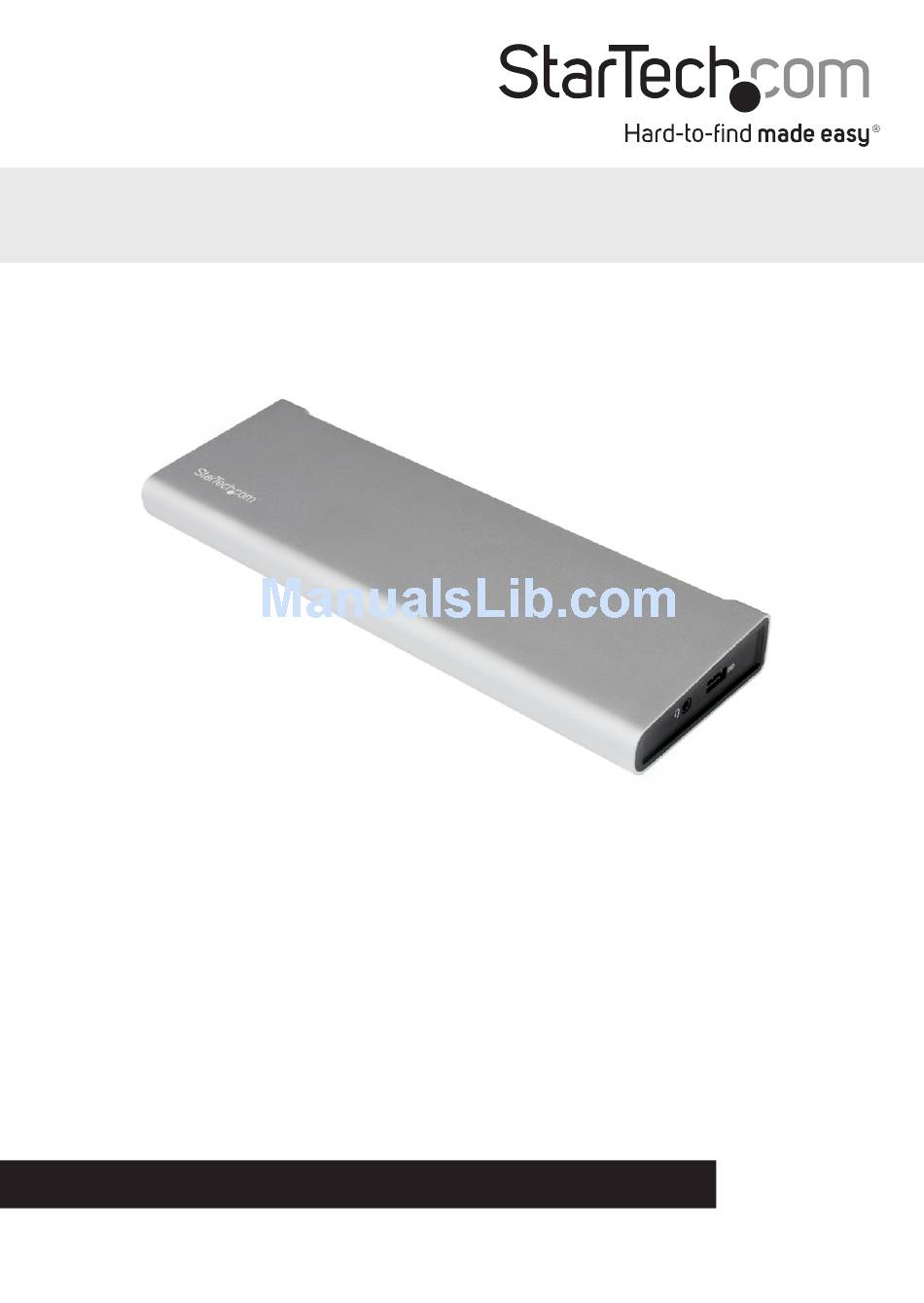

- Page 1 - 2x DisplayPort TB2DOCK4K2DP *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the latest information, technical specifications, and support for this product, please visit www.startech.com/TB2DOCK4K2DP.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ..................2 Side view ..............................2 Rear view ..............................2 About USB 3.0 and USB 3.1 Gen 1 ............3 Temperature ....................3 About installation ..................3 Install the docking station ..............3 Install the drivers ...................4 About the docking station ports ............4 Charge a device ..................4... -
Page 4: Introduction
Note: If you connect the docking station to a Thunderbolt host port, performance may be limited. A Thunderbolt 2 host port is highly recommended. Operating system requirements are subject to change. For the latest requirements, please visit http://www.startech.com/TB2DOCK4K2DP Instruction manual... -
Page 5: Product Diagram
Product diagram Side view 3.5mm TRRS USB 3.0 headset port fast-charge (audio and and sync microphone) Rear view S/PDIF port eSATA Thunderbolt (digital optical DC input port port 2 ports audio output) USB 3.0 ports 3.5 line-in/ Gigabit DisplayPort RJ45 port video ports microphone port (stereo) -
Page 6: About Usb 3.0 And Usb 3.1 Gen 1
USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard offers speeds up to 5Gbps. Any mention of USB 3.0 in this manual or the StarTech.com website for TB2DOCK4K2DP refers to the 5Gbps USB 3.1 Gen 1 standard. -
Page 7: Install The Drivers
3. Click OK. If required, follow any other on-screen instructions to complete the installation. The drivers can also be found under the Support tab on our website at http://www.startech.com/TB2DOCK4K2DP About the docking station ports The three USB ports located at the back of the docking station are standard USB 3.0 throughput ports. -
Page 8: Configure A Display Device
Configure a display device Use your Windows or Mac operating system to adjust display settings for multiple monitors. • You can set up dual displays by using the video output ports (2x DisplayPort, or 1x DisplayPort + 1x Thunderbolt/MDP). • You can set up dual displays using multiple Thunderbolt monitors in a daisy-chain configuration. - Page 9 In this scenario, DisplayPort Video 2 will be disabled: DisplayPort Video 1 - Enabled DisplayPort Video 2 - Disabled Thunderbolt - Enabled The docking station does not support three displays unless connected using a Thunderbolt daisy chain. DisplayPort DisplayPort Video Output Configuration Thunderbolt Resolution Resolution...
-
Page 10: Technical Support
