Thunderbolt™ 3 Dual DisplayPort Mini Bus Powered
Docking Station for Laptops - 4K 60Hz - GbE - USB-3.0
TB3DKM2DP
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/TB32DKM2DP
Manual Revision: 01/08/2018
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com TB3DKM2DP
Summary of Contents for StarTech.com TB3DKM2DP
- Page 1 Thunderbolt™ 3 Dual DisplayPort Mini Bus Powered Docking Station for Laptops - 4K 60Hz - GbE - USB-3.0 TB3DKM2DP *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................1 Package contents ............................1 Requirements ............................. 1 Product diagram ....................2 About Thunderbolt 3 ..................3 Thunderbolt temperature ........................3 About USB 3.0 and USB 3.1 Gen 1 ..............3 Install the docking station ................4 Connect peripherals to the docking station ................... -
Page 4: Introduction
• macOS 10.12 (Sierra) • macOS 10.13 (High Sierra) • Video output capabilities are dependent on the video card and hardware specifications of your connected host laptop Requirements are subject to change. For the latest requirements, please visit: www.StarTech.com/TB3DKM2DP. Instruction manual... -
Page 5: Product Diagram

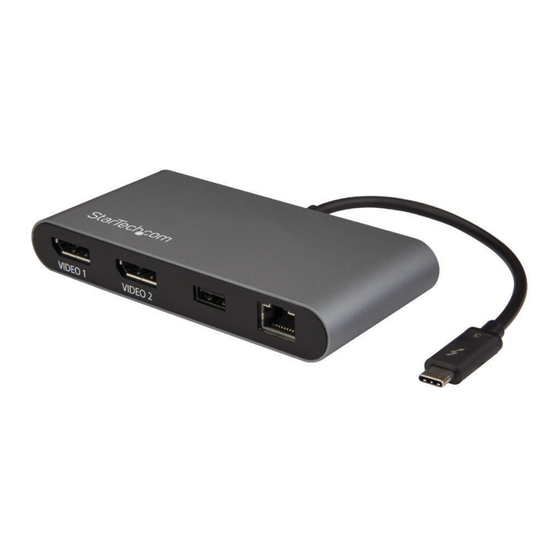

Product diagram DisplayPort USB 3.0 video Type-A outputs port Gigabit (5Gbps) RJ45 port Thunderbolt 3 host port Instruction manual... -
Page 6: About Thunderbolt 3
5Gbps. Any mention of USB 3.0 in this manual or on the StarTech.com website for TB3DKM2DP refers to the 5Gbps USB 3.1 Gen 1 standard. Any mention of USB 3.1 Gen 2 refers to the 10Gbps Gen 2 standard. -
Page 7: Install The Docking Station
Install the docking station The docking station is natively supported when connected to a computer running Windows 10, Windows 8 / 8.1 or macOS operating systems. In these operating systems, the docking station will automatically detect and install the required drivers once connected to a Thunderbolt 3 port on your host laptop. -
Page 8: Connect An Active Video Adapter To The Displayport Port
DisplayPort to DVI Adapter (DP2DVIS) DisplayPort to VGA Adapter (DP2VGA2) Visit www.StarTech.com for of active DisplayPort adapters and cables. Notes: • The docking station lets you connect two 4K displays. • Video adapters sometimes limit the maximum available resolution. Check the documentation of the video adapter to determine its maximum supported resolution. -
Page 9: Supported Video Resolutions
Supported video resolutions Thunderbolt technology supports both video and data throughput. However, it prioritizes video bandwidth to help ensure seamless display performance. The performance of the remaining dock functions depends entirely on the display configuration you used. The docking station supports the follow maximum resolutions: Number of Ports Maximum Resolution... -
Page 10: Troubleshooting
Troubleshooting If you are experiencing issues, there are some quick tests that you can complete to narrow down the source of the issue. Update your computer to use Thunderbolt 3 Visit http://thunderbolttechnology.net/updates and look for your computer in the list of affected computers. -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
