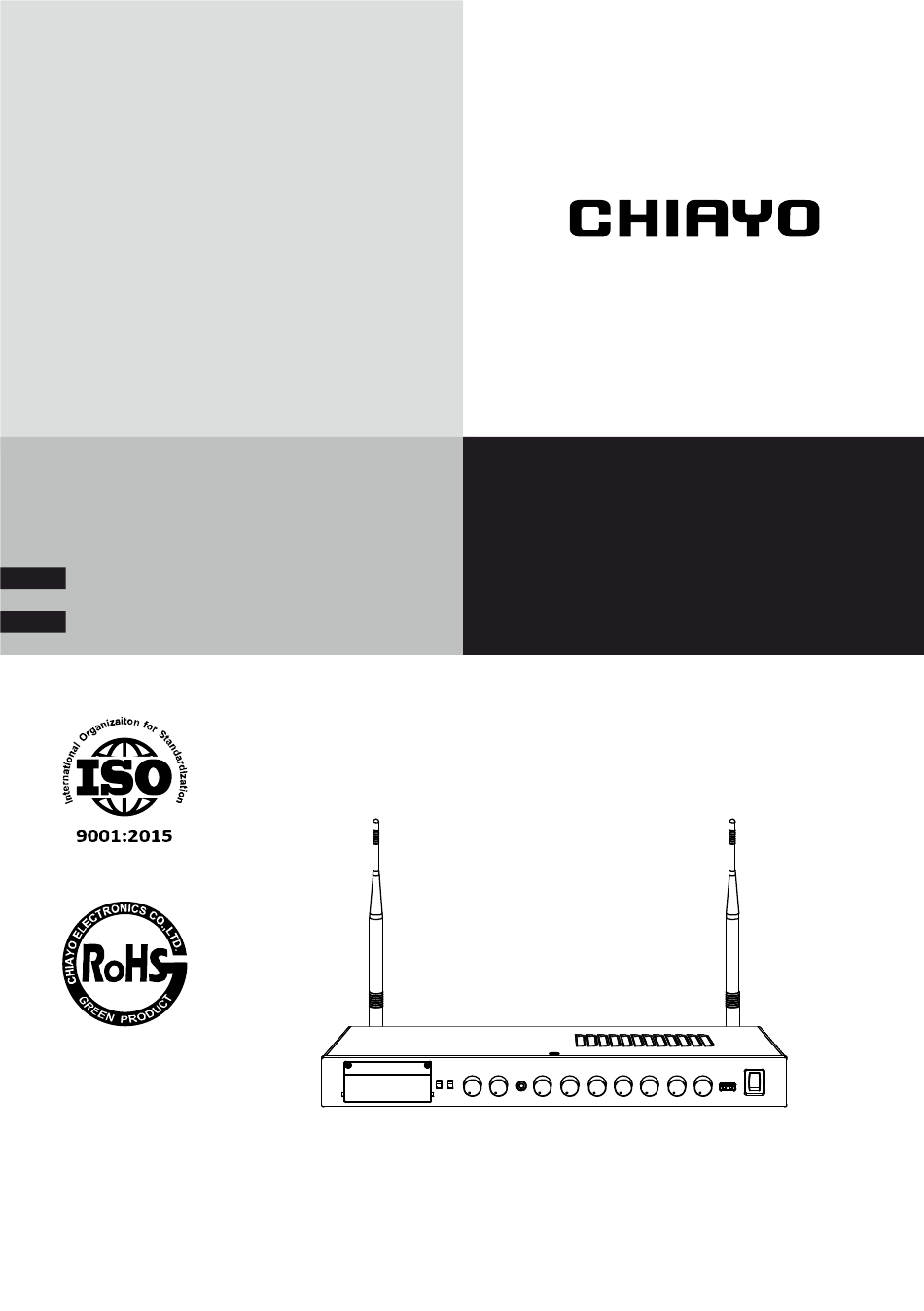

- Page 1 MMA-3000N Operation manual 2.1-Channel Multi-Media Mixer Amplifier CHIAYO ELECTRONICS CO., LTD.
-
Page 2: Table Of Contents
MMA-3000N 2.1-Channel Multi-Media Mixer Amplifier INDEX 1. Instruction ..........................2 1-1. In the box ..........................2 1-2. Optional related products ....................2 1-3. Parts and functions ......................3 2. Settings and Operations ......................4 2-1. Using the wired microphone (INPUT 1 / INPUT 2) ............4 2-2. -
Page 3: Instruction
Congratulations and thank you for purchasing this 2.1-channel multi-media mixer amplifier. To ensure a trouble-free operation, please read the manual thoroughly to fully understand its controls and functions. 1-1. In the box MMA-3000N amplifier handheld or belt-pack transmitter a pair of antennas (optional) -
Page 4: Parts And Functions
MMA-3000N 2.1-Channel Multi-Media Mixer Amplifier 1-3. Parts and functions 13 14 2 3 4 front 1. Receiver / MP3 recorder / Bluetooth module 7. Line in volume control (stereo, 3.5mm) slot 8. LINE IN volume control (RCA R 2. MUSIC / VOICE mode switch for slot ①... -
Page 5: Settings And Operations
Using the wired microphone (INPUT 1 / INPUT 2) 2. Settings and Operations 2-1. Using the wired microphone (INPUT 1 / INPUT 2) Plug a wired microphone with a 6.3mm or XLR connector to INPUT 1 or INPUT 2 on the rear panel. -
Page 6: Using The Wireless Receiver
MMA-3000N 2.1-Channel Multi-Media Mixer Amplifier 2-2. Using the wireless receiver 2-2-1. Parts and functions Diversity A/B Transmitter battery antenna power RF signal meter Channel Audio signal meter IR sensor area SYNC Power switch / PWR/VOL volume control SET button IrDA synchronization... -
Page 7: Channel Scanning
Using the wireless receiver 2-2-2. Channel scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. To operate the scanning: Press ▼(down) or ▲(up) button to make Hold SET button until this icon the frequency icon appear on the flashes to denote readiness for setting. -
Page 8: Volume And Other Settings
MMA-3000N 2.1-Channel Multi-Media Mixer Amplifier 2-2-4. Volume and other settings Turn on master POWER and then adjust its individual volume control to a desired level. SYNC PWR/VOL BASS / TREBLE equalizer (refer to P.11) can be adjusted individually. -
Page 9: Using An Electronic Instrument (Input 1 / Input 2)
Using an electronic instrument (INPUT 1 / INPUT 2) 2-3. Using an electronic instrument (INPUT 1 / INPUT 2) Plug an electronic guitar or keyboard with a 6.3mm plug or XLR connector to INPUT 1 or INPUT 2 on the rear panel. Slide the switch to LINE level. -
Page 10: Music Audio Input - Mp3/Mp4/Phone (Input 3)
MMA-3000N 2.1-Channel Multi-Media Mixer Amplifier 2-4. Music audio input - MP3/MP4/phone (INPUT 3) Plug the audio cable with a 3.5mm phone plug to INPUT 3’s 3.5mm stereo jack. Turn on the power and then adjust INPUT 3 volume control on the front panel to a desired level. -
Page 11: Music Audio Input - Dvd Player (Input 4)
Music audio input - DVD player (INPUT 4) 2-5. Music audio input - DVD player (INPUT 4) Plug the audio cable with RCA R/L plugs to the INPUT 4’s RCA R/L jacks on the rear panel. Turn on the power and then adjust INPUT 4 volume control on the front panel to a desired level. -
Page 12: Equalizer For Wired And Wireless Microphone And Music
MMA-3000N 2.1-Channel Multi-Media Mixer Amplifier 2-6. EQUALIZER for WIRED and WIRELESS MICROPHONE and MUSIC EQUALIZER adjustment is actually used to increase or reduce the high/low frequency component of the speaker's restored sound. It is so-called raising or attenuating TREBLE/BASS via frequency-specific volume knobs to improve human voices or make musical instruments’... -
Page 13: Application
Connecting MONO/SUBWOOFER speaker (SUB/MONO OUTPUT) 3. Application 3-1. Connecting MONO/SUBWOOFER speaker (SUB/MONO OUTPUT) Plug the external speaker’s audio cable to the 6.3mm or 2P PHOENIX jack on the rear panel. The speaker’s impedance must be 4Ω or more. When using 2P PHOENIX for connection, please accord with the positive (+) and negative (-) polarities. -
Page 14: Connecting L/R Stereo Speakers (Speaker Outputs)
MMA-3000N 2.1-Channel Multi-Media Mixer Amplifier 3-2. Connecting L/R stereo speakers (SPEAKER OUTPUTS) Plug the external speaker’s audio cable to the 6.3mm or 4P PHOENIX jacks on the rear panel. The speaker’s impedance must be 4Ω or more. When using 4P PHOENIX for connection, please accord with the positive (+) and negative (-) polarities. -
Page 15: Connecting Desktop / Computer Speaker (Line Out)
Connecting desktop / computer speaker (LINE OUT) 3-3. Connecting desktop / computer speaker (LINE OUT) Plug the audio cable with 3.5mm plug from the LINE OUT’s 3.5mm jack on the rear panel to the desktop / computer speaker. Turn on the power and then adjust LINE OUT volume control on the rear panel to a desired level. - Page 16 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
