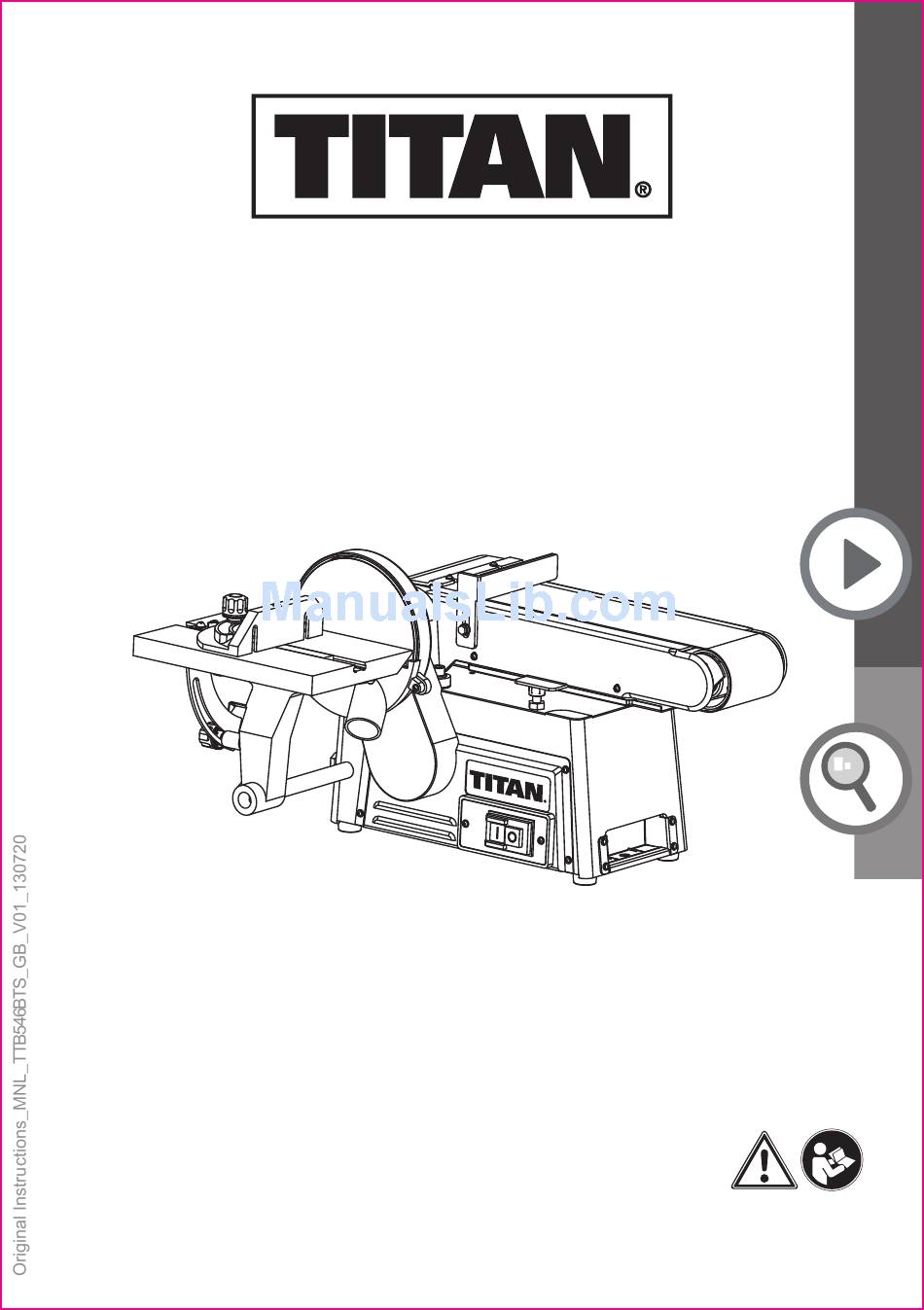

- Page 1 4” x 6” Belt & Disc Sander TTB546BTS Barcode: 5052931253647 WARNING! Read the instructions before using the product!
- Page 2 GUARANTEE This TITAN product carries a 2 year guarantee. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.
-
Page 3: Table Of Contents
TTB546BTS by TITAN Let’s get started… These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start detail... more Product functions... -
Page 4: Your Product
Your product TTB546BTS by TITAN Your product 16 15 1. Sanding belt 9. Rubber foot 2. Work support 10. Spanner 3. Sanding disc 11. Table lock knob 4. Mitre gauge 12. Bevel gauge 5. Worktable 13. Dust outlet 6. Worktable rod 14. -
Page 5: Technical And Legal Information
Technical and legal TTB546BTS by TITAN information Technical specifications General > Input Voltage 230-240V~50Hz > Power Input 500W > Disc No Load Speed 2400min > Belt No Load Speed 452m/min > Disc Size 152mm > Table Size 158x225mm > Belt Size 100x914mm >... - Page 6 Technical and legal TTB546BTS by TITAN information Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.
-
Page 7: Safety Warnings
Technical and legal TTB546BTS by TITAN information Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. - Page 8 Technical and legal TTB546BTS by TITAN information SAVE THESE INSTRUCTIONS 1. Keep the work area clean. > Cluttered and dark areas invite accidents. 2. Consider work area environment. > Do not expose power tools to rain. Do not use power tools in damp or wet locations.
- Page 9 Technical and legal TTB546BTS by TITAN information > Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubrication and changing accessories. Inspect tool cord periodically and if damaged have them replaced by an authorised service facility. Inspect extension cords periodically and replace if damaged.
- Page 10 Technical and legal TTB546BTS by TITAN information You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure. You should: - Work in a well-ventilated area. - Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles.
- Page 11 Technical and legal TTB546BTS by TITAN information > Do not sand pieces of material that are too small to be safely supported. > Avoid awkward hand positions where a sudden slip could cause a hand to move into the sanding belt or disc.
-
Page 12: Before You Start
Before you start TTB546BTS by TITAN Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. -
Page 13: Before You Start
Before you start TTB546BTS by TITAN Fig. 1 Fig. 2 Mounting the base plate of the machine > Remove the machine from packaging. Fig. 3 > Put a big flat washer M5 (15) onto the screw M5 x 12mm (19), then tighten it with the 4mm hex key. - Page 14 Before you start TTB546BTS by TITAN Mounting the cord wraps > Loosen two fixing screws (20) and flat washers, then take them out. (Fig. 6) Fig. 6 > Mount the two cord wraps (14) with two fixing screws (20) and flat washers, then tighten the two fixing screws with a phillips screwdriver.
- Page 15 Before you start TTB546BTS by TITAN Installing disc guard with dust outlet > Position disc guard (21) against the lower one-third of the disc, aligning two holes as shown in figure 9. > Using the two screws M4 x 14mm (22) and flat washers M4 (23) securely tighten the disc guard (21) into place.
- Page 16 Before you start TTB546BTS by TITAN > Insert the other end of the worktable rod (6) into the hole on the body as shown in figure 11. > Position the worktable not further than 1.6mm from the sanding surface. Fig. 11 >...
- Page 17 Before you start TTB546BTS by TITAN Mounting the worktable for use with the belt sander To use the worktable for vertical sanding. • Disassemble the work support > Loosen with 10mm spanner and remove the head screw (27) and the washer.
- Page 18 Before you start TTB546BTS by TITAN • Mounting the worktable > Loosen the fixing screw (29) with the 6mm hex key provided. Place the belt sanding body to a vertical position then tighten the fixing screw (29). (Fig 17) Fig. 17 >...
-
Page 19: Sanding Disc
Before you start TTB546BTS by TITAN WARNING! Before performing any adjustment, make sure the belt/ disc sander is unplugged from the power supply and the switch is in the OFF position. Failure to note this warning could result in serious personal injury. - Page 20 Before you start TTB546BTS by TITAN > If the worktable is not 90° with the disc, loosen the table lock knob (11) and tilt the table. > Adjust worktable square to the sanding disc and tighten the table lock knob (11) again.
-
Page 21: In More Detail
TTB546BTS by TITAN more detail… Product functions Care and maintenance Recycling and disposal EC declaration of conformity... - Page 22 Product functions TTB546BTS by TITAN NOTE: Before using the tool, read the instruction book carefully. Bevel sanding The worktable can be tilted from 0 to 45 degree for bevel sanding. To tilt the worktable: > Loosen the table lock knob (11) by turning it counterclockwise.
-
Page 23: Product Functions
Product functions TTB546BTS by TITAN Fig. 26 Vertical sanding Your machine can sand vertically. Depending on the workpiece, the work support can be removed for the vertical sanding operation. Important: Make sure the fixing screw (29) is tightened fully. (see Fig 17) NOTE: Sanding long workpiece with the sanding belt in the vertical by moving the work evenly across the sanding belt. - Page 24 Product functions TTB546BTS by TITAN Surface sanding on the sanding belt > Hold the workpiece firmly, keeping fingers away from the sanding belt. > Keep the end pressed firmly against the work support moving work evenly across the sanding belt.
- Page 25 Product functions TTB546BTS by TITAN Fig. 29...
- Page 26 Care and maintenance Care and maintenance TTB546BTS by TITAN TTB546BTS by TITAN The golden rules for care WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! >...
-
Page 27: Care And Maintenance
Care and maintenance TTB546BTS by TITAN Replacing sanding belt > Pull the tension lever (15) from left to right to release the belt tension. (Fig. 30) Fig. 30 > Loosen and remove the four screws (32) on the fixed guard (33). Remove the fixed guard (33). - Page 28 Care and maintenance TTB546BTS by TITAN > Loosen the fixing screw (29) with the 6mm hex key. (Fig. 17) > Then place the belt sanding body to a vertical position. > Remove the lower belt cover (35). (Fig. 34) > Pull out the old sanding belt (1) and replace a new one. (Fig. 35)
- Page 29 Care and maintenance TTB546BTS by TITAN Fig. 36 Fig. 37 Replacing drive belt > Remove the circular sanding disc to gain access to the allen bolt that secures the aluminium sanding plate. > Remove the allen bolt (36) and washer with 4mm hex key (Fig. 38), followed by the bolt cup (37) (Fig.
- Page 30 Care and maintenance TTB546BTS by TITAN Fig. 41 Fig. 42 > Remove the old belt. > Fit the new belt over the lower motor spindle pulley and over the top pulley as in Fig. 43. To help engage the belt pulley with the top pulley teeth, rotate the motor spindle counter-clockwise while applying horizontal pressure to the belt at the top pulley (Fig.
-
Page 31: Power Cord
Care and maintenance TTB546BTS by TITAN Fig. 45 Fig. 46 NOTE: When you are satisfied the belt tension is correct, turn the belt through a couple of revolutions to ensure belt, pulleys etc. all turn freely. > Re-assembly is a reversal of procedures 1-3. - Page 32 Care and maintenance TTB546BTS by TITAN As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured green & yellow must be connected to the terminal which is marked with E or .
- Page 33 Care and maintenance TTB546BTS by TITAN Storage > Clean the product as described above. > Store the product and its accessories in a dry, frost-free place. > Always store the product in place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C.
-
Page 34: Recycling And Disposal
Recycling and disposal TTB546BTS by TITAN Recycling and disposal > Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. -
Page 35: Declaration Of Conformity
EN55014-2 EN61000-3-2 EN61000-3-3 Authorised Signatory and technical file holder Date : 20/07/2013 Signature:_________________ Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 4” X 6” BELT & DISC SANDER TTB546BTS... - Page 36 Titan Power Tools (UK) Ltd Trade House, Mead Avenue, BA22 8RT...
