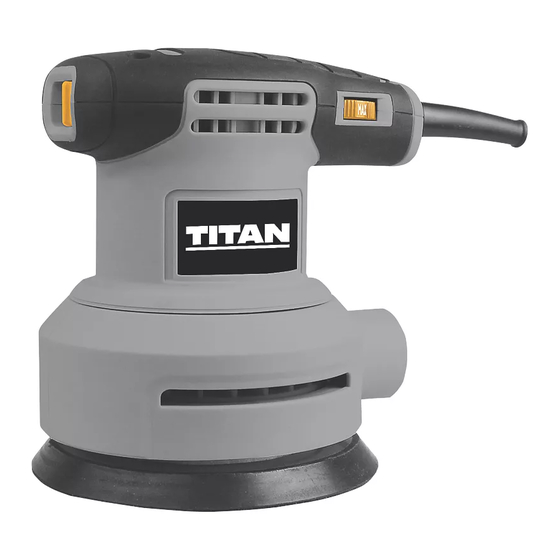

TTB888SDR
WARNING: Read the instructions before using the product!
V11121 / BX220IM
MNL_300W Random Orbit Sander_MROS300_IMGB_V1_211231.indd 1
12/31/21 11:46 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTB888SDR and is the answer not in the manual?

Questions and answers

Related Manuals for Titan TTB888SDR

Summary of Contents for Titan TTB888SDR

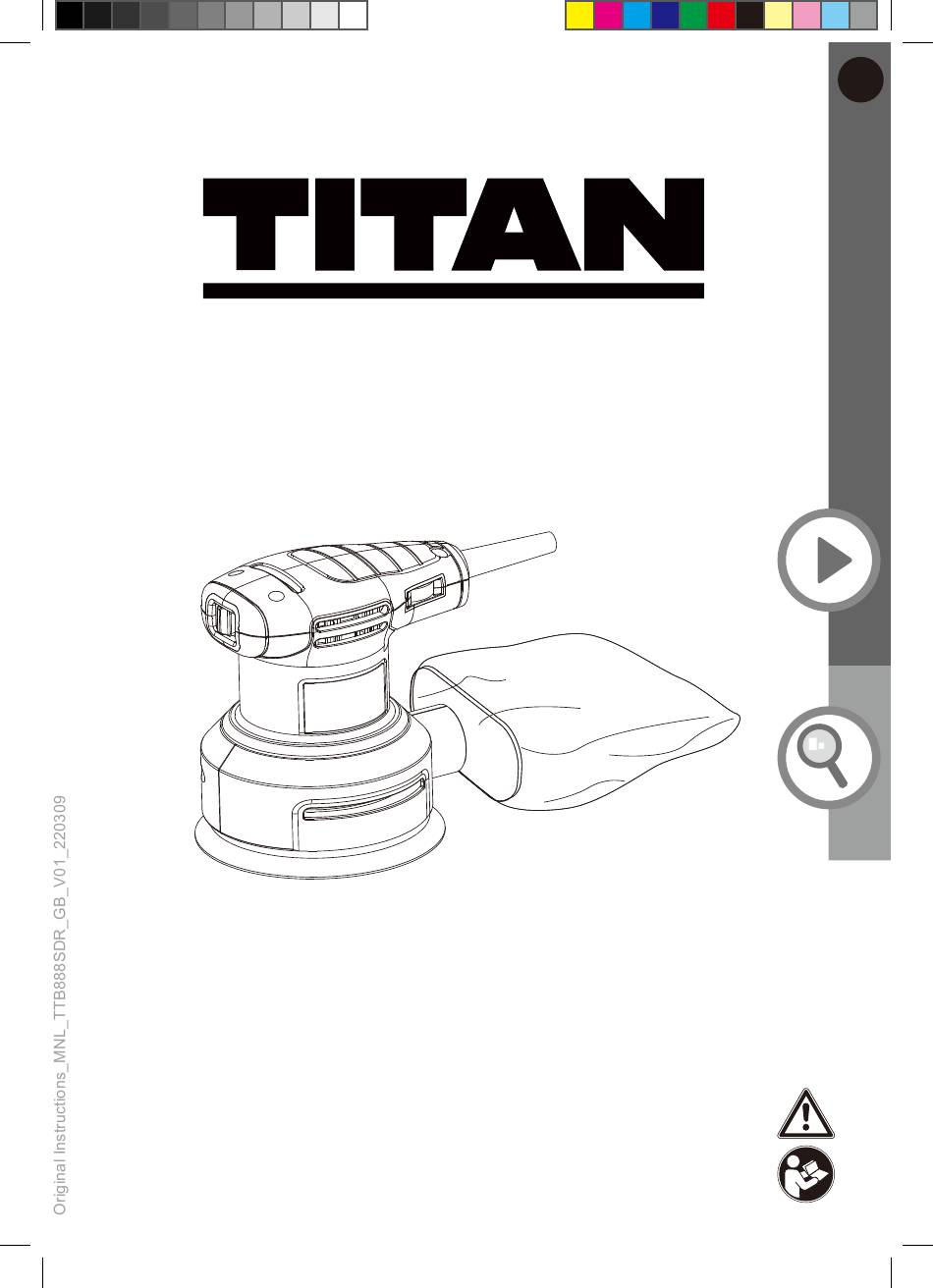

  • Page 1 TTB888SDR WARNING: Read the instructions before using the product! V11121 / BX220IM MNL_300W Random Orbit Sander_MROS300_IMGB_V1_211231.indd 1 12/31/21 11:46 AM...

  • Page 2: Table Of Contents

    Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity...

  • Page 3: Safety Information

    TTB888SDR Safety information Safety warnings General power tool safety warnings WARNING! Read safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 4 TTB888SDR Safety information Safety warnings b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions.
  • Page 5 TTB888SDR Safety information c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. switch or energising power tools that have the switch on invites accidents.
  • Page 6 TTB888SDR Safety information Safety warnings c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  • Page 7 TTB888SDR Safety information 5) Service repair person using only identical replacement parts. This will ensure that safety of the power tool is maintained. Safety warnings for sander a) Take special care to protect yourself and people around against dusts, including the following: •...
  • Page 8 TTB888SDR Safety information Safety warnings f) Double check that the accessories and attachments load condition will be helpful to identify any problems. g) Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
  • Page 9 TTB888SDR Safety information The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts. Construction workers are one of the at- risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...
  • Page 10 TTB888SDR Safety information Safety warnings b) Use a less powerful tool e.g. a block cutter instead of angle grinder. c) Using a different method of work altogether – e.g. using a nail gun to direct fasten cable trays instead of...
  • Page 11 TTB888SDR Safety information VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to...
  • Page 12 TTB888SDR Safety information Safety warnings WARNING! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used: • How the materials are grinded, cut or drilled.
  • Page 13 TTB888SDR Safety information WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 14 TTB888SDR Safety information Safety warnings c) Use correct attachments for the product and ensure they are in good condition. d) Keep tight grip on the handles/grip surface. e) Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
  • Page 15 TTB888SDR Safety information Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:...

  • Page 16: Your Product

    TTB888SDR Your product Your product 1. On / off switch 6. Dust collection bag 2. Main handle 7. Air vents 3. Speed dial 8. Base plate 4. Dust collection outlet 9. Sanding paper(P80) 5. Dust extraction connector 10. Dust extraction adaptor NOTE: Parts marked with * are not shown in this overview.
  • Page 17 TTB888SDR Your product General > Rated voltage, frequency : 220-240 V~, 50 Hz > Rated input power : 300W > Rated no load speed n : 4000-13000 min > Protection class : Il > : hook&loop > Weight : approx. 1.6 kg >...
  • Page 18 TTB888SDR Your product Rating label explanation TTB888SDR = Model number TT = TITAN B = 220-240V ~ 888 = Serial Number SDR = Orbit Sander Symbols others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
  • Page 19 TTB888SDR Your product The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.

  • Page 20: Before You Start

    TTB888SDR Before you start Setup WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product!
  • Page 21 TTB888SDR Before you start Changing/attaching sanding paper with hook-and-loop system 1. With the hook-and-loop system, sanding paper is simply removed by 2. pulling off. 3. Align the hole pattern of the new sanding paper (9) with the one in the base plate (8) (Fig.1)
  • Page 22 TTB888SDR Before you start Dust extraction Fig. 2 Fig. 3 Fig. 4 External dust extraction device 1. Attach an external dust extraction device, e.g. a suitable vacuum cleaner attachment (Ø35mm), to the dust extraction adaptor (10) and then attach to dust extraction outlet (4).
  • Page 23 TTB888SDR Before you start Fig. 5 Fig. 6 2. To remove the dust extraction adaptor, rotate the dust collection adaptor (10) counterclockwise Fig. 6 and pull the dust extraction adaptor off. Fig. 7 Fig. 7 Connection to power supply 1. Make sure the on/off switch (1) is in its off position.

  • Page 24: In More Detail

    TTB888SDR more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity MNL_300W Random Orbit Sander_MROS300_IMGB_V1_211231.indd 24 12/31/21 11:46 AM...
  • Page 25 TTB888SDR Product functions Intended use This Random Orbit Sander MAC MROS300 is designated with a rated input of 300 Watts. surfaces. This product should not be used on other materials or those harmful to health. It is to be used for dry operation only without water or other cooling liquids.
  • Page 26 TTB888SDR Product functions / Operation Switching on/off “I” appears on the switch. “0” appears on the switch. Fig. 10 Fig. 11 General operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.
  • Page 27 TTB888SDR Operation Sanding WARNING! Always use a dust extraction system and wear a dust mask to protect WARNING! Sound level may exceed 80 dB (A). Therefore always wear ear defenders when sanding. 1. Ensure the workpiece is free of obstacles like nails or screws before operation.
  • Page 28 TTB888SDR Care and maintenance The golden rules for care WARNING! Always switch the product off, disconnect the plug from the power supply. Let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage.
  • Page 29 TTB888SDR Care and maintenance Power cord If the supply cord is damaged, it must be replaced by a specially prepared cord available through the service organization. UK plug (for UK only) IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
  • Page 30 TTB888SDR Care and maintenance Repair This product does not contain any parts that can be repaired by the consumer. checked and repaired. Storage 1. Switch the product off and disconnect it from the power supply. 2. Clean the product as described above.

  • Page 31: Troubleshooting

    TTB888SDR Troubleshooting Troubleshooting Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed cannot solve the problem yourself!

  • Page 32: Recycling And Disposal

    TTB888SDR Recycling and disposal Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. The product comes in a package that protects it against damage during shipping.

  • Page 33: Guarantee

    TTB888SDR Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITIAN Orbit Sander) manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
  • Page 34 TTB888SDR Declaration of conformity (UK) DECLARATION OF CONFORMITY Product • Orbit Sander • TTB888SDR • Serial number: from 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.

  • Page 35: Declaration Of Conformity

    (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Producto/Produto • Orbit Sander/Ponceuse excentrique/Lijadora excéntrica/Lixadora excêntrica • TTB888SDR • SN: 000001-999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nombre y dirección del fabricante o de su representante autorizado:...
  • Page 36 TTB888SDR Declaration of conformity 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2011/65/UE relative à...
  • Page 37 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.screwfix.com To view instruction manuals online, visit www.screwfix.ie www.kingfisher.com/products www.bricodepot.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.bricodepot.es...

This manual is also suitable for:
