Summary of Contents for Titan SF280E

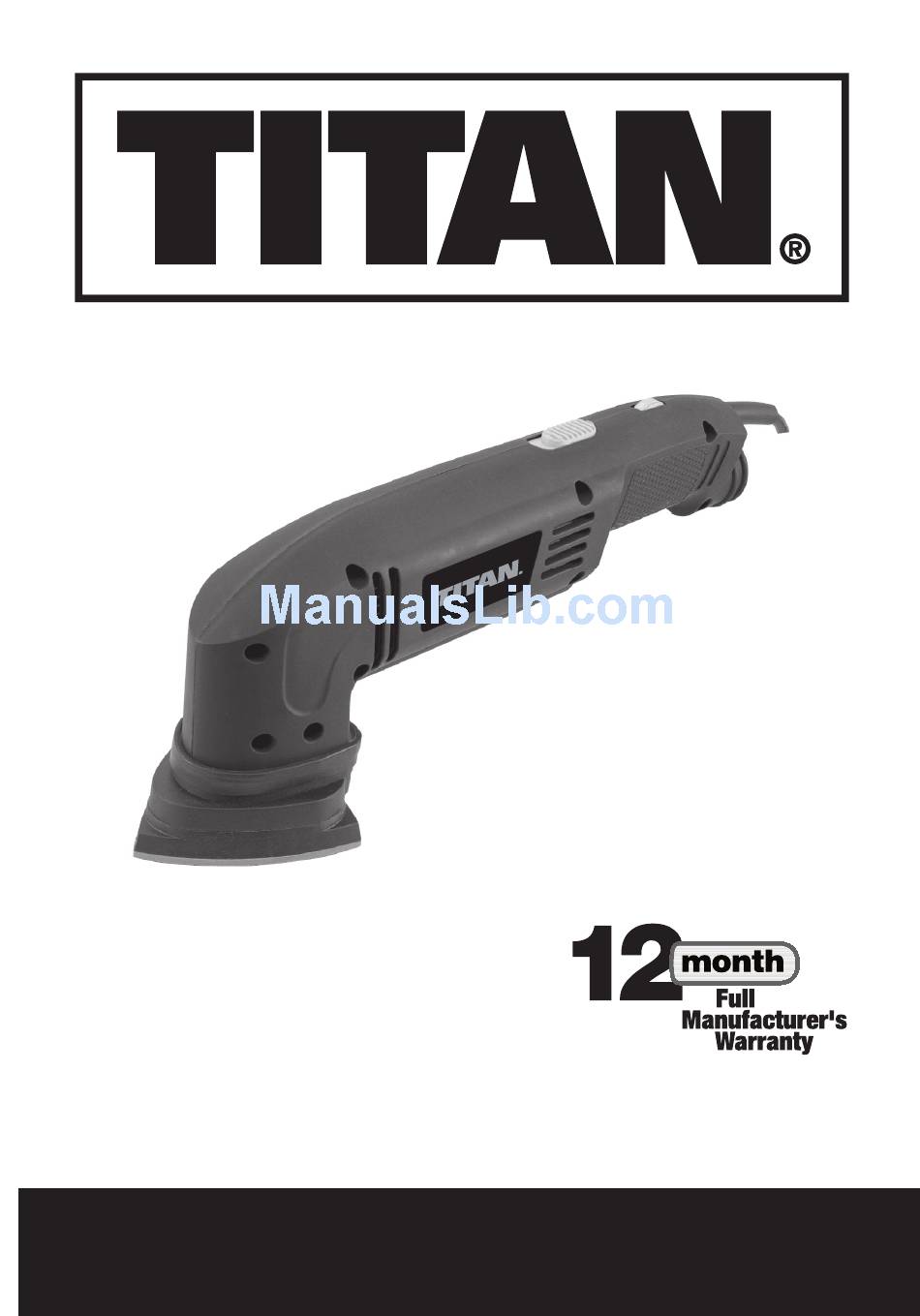

- Page 1 SAFETY AND OPERATING MANUAL 280W DETAIL SANDER SF280E...
- Page 2 Congratulations on your purchase of a power tool from Screwfix Direct Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future. Your power tool comes with a 12-month guarantee,so should it develop a fault within this period contact Screwfix Direct Ltd on Freephone 0500 41...
-
Page 3: Safety Instructions
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f. Dress properly. Do not wear loose clothing or jewellery. Keep your 280W DETAIL SANDER SF280E... - Page 4 hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards.
- Page 5 Ensure your mains supply voltage is the same as your tool rating plate voltage. Remove the main plug from socket before carrying out any adjustment or servicing. SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection Conforms to relevant safety standards 280W DETAIL SANDER SF280E...
- Page 6 1. ON/OFF SWITCH 2. VARIABLE SPEED SELECTOR WHEEL 3. CONNECTION TO DUST EXTRACTION 4. GRIP (HANDLE) 5. SANDER BASE 6. SANDING SHEET...
-
Page 7: Technical Data
Base size: 90 x 90 x 90mm Double insulation: Weight: 1.41kg NOISE AND VIBRATION DATA Sound pressure level: 83.6dB (A) Sound power level: 94.6dB (A) Vibration level: 3.7m/s ACCESSORIES Sanding paper 2pcs (80 and 120 Grit) 280W DETAIL SANDER SF280E... -
Page 8: Operation Instructions
OPERATION INSTRUCTIONS Warning! Before using your sander be sure to read the instruction manual carefully. 1. FITTING THE SANDING PAPER (See Fig2) (a)Make sure the plug is disconnected from the mains supply. (b)Align the dust extraction holes in the sanding pad with the holes in the base and press firmly together (see fig2). -
Page 9: Maintenance
3. Always use only a soft, dry cloth to clean your sander. 4. Always keep the dust extraction holes in the vibrating plate free of dirt or other obstructions. 5. Water must never come into contact with the sander. 280W DETAIL SANDER SF280E... -
Page 10: Troubleshooting
TROUBLESHOOTING Although your new sander is really very simple to operate, if you do experience problems, check the following: If your tool can not work, please check the plug and fuse first. Sander will not start Check that there is “mains” at the socket. Check the connections in the plug;... - Page 11 L. A 13AMP (BS1363 or BS1363/A) plug must be used and a 5 AMP fuse must be fitted. 5 AMP FUSE BLUE N (NEUTRAL) BROWN L (LIVE) OUTER SLEEVE CABLE GRIP 280W DETAIL SANDER SF280E...
-
Page 12: Declaration Of Conformity
Houndstone Business Park Yeovil BA 22 8RT Declare that the product 280W DETAIL SANDER SF280E Complies with the essential health and safety requirements of the following directives: 89/336/EEC, 93/68/EEC – EMC Directive. 73/23/EEC, 93/68/EEC – Low Voltage Directive. 98/37/EC – Machinery Directive.
