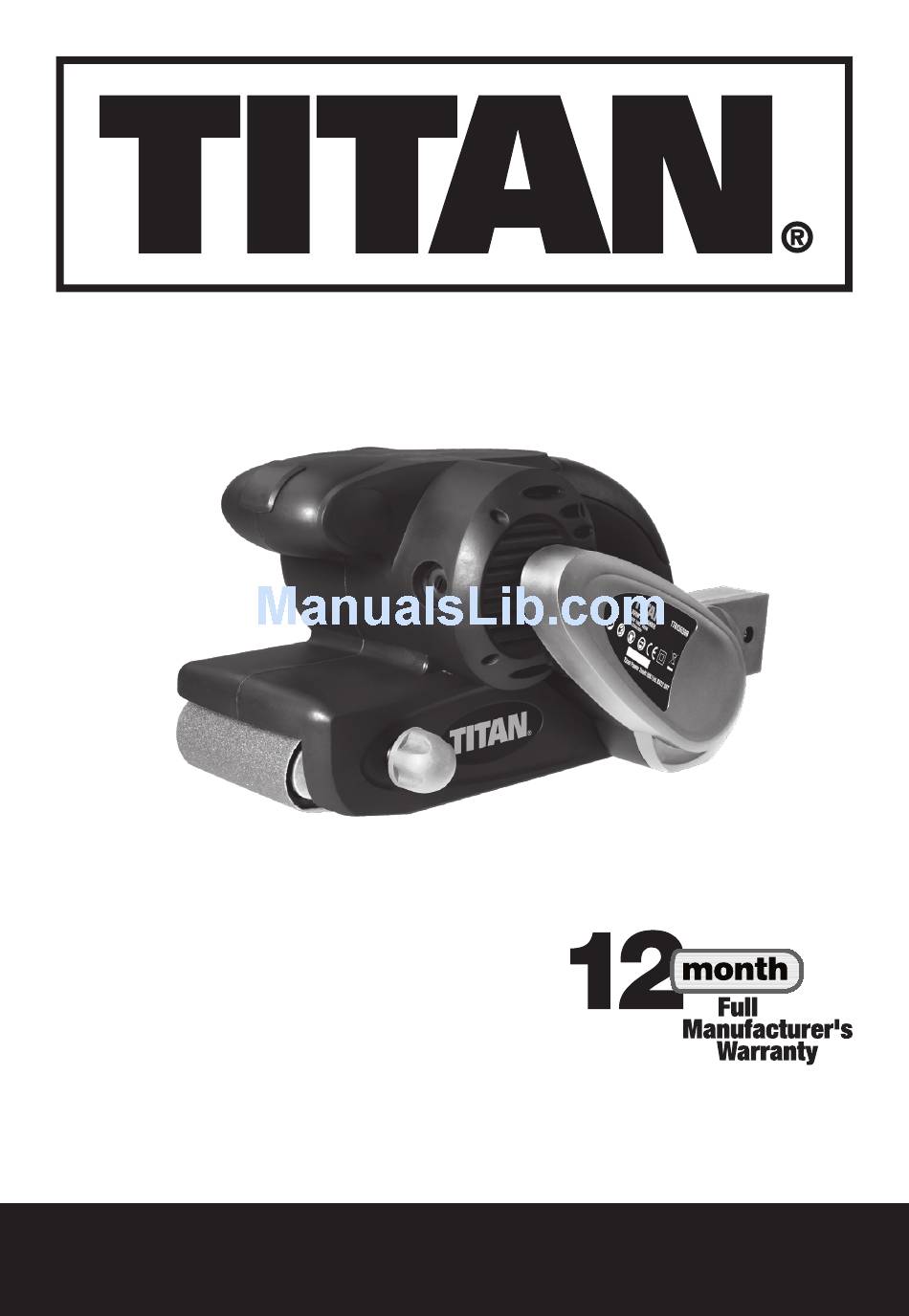

- Page 1 SAFETY AND OPERATING MANUAL 800W BELT SANDER TTB136SDR...
- Page 3 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on.
-
Page 6: Health Advice
HEALTH ADVICE WARNING! When drilling, sanding, sawing or grinding, dust particles will be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful to you (e.g. lead from old gloss paint). You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure. - Page 7 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
-
Page 8: Double Insulation
(where appropriate) Avoid using tools in temperatures of 10°C or less Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. - Page 9 1 FRONT HANDLE 2 ON/OFF SWITCH 3 SWITCH LOCK-ON BUTTON 4 HAND GRIP AREA 5 DUST COLLECTION BAG 6 DUST OUTLET 7 DRIVING BELT COVER 8 BELT CENTRING CONTROL KNOB 9 SANDING BELT LEVEL 800W BELT SANDER TTB136SDR...
-
Page 10: Technical Data
TECHNICAL DATA Rated Voltage 230V~50Hz Rated Power 800W No load belt speed 420 m/min Belt Size 76 x 533mm Protection class weight 3.05kg NOISE AND VIBRATION DATA Sound pressure level 80.2dB(A) Kpa=3 dB(A) Sound power level 91.2dB(A) Kwa=3 dB(A) Wear ear protection when sound pressure is over 85 dB ACCESSORIES Sanding belt 80#(1pc on machine)) 2pcs... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. 1. INSTALLING THE SANDING BELT (See Fig. A, B) WARNING! Remove the main plug from the socket before changing sanding belt. Fig A Pull the lever to release the belt tension. Remove and fit a new belt over both rollers. - Page 12 3. DUST BAG (See Fig. D, E) You must use the dust bag provided to collect the dust produced during sanding. To attach, insert the dust bag into the dust extraction outlet. Make sure the dots of the outlet are locked n the slot of the dust bag (see Fig D).
- Page 13 6. REPLACING CARBON BRUSHES (See Fig. H) Remove and check the carbon brushes regularly. When they are worn to length of about 6mm, both carbon brushes should be replaced with new ones at the same time. When changing worn carbon brushes, use a slotted screwdriver to remove the brush holder caps.
-
Page 14: Maintenance
WORKING HINTS YOUR SANDER 1. Your sander is useful for working on wood, metal, painted surface. It will smooth surfaces prior to painting, even where fillers have been used and left proud. 2. Your sander is best suited to large flat areas such as doors but can also be used on skirting boards, windows, etc, provided they are accessible. -
Page 15: Troubleshooting
TROUBLESHOOTING 1. If your sander will not operate, check the power at the mains plug. 2. If the sander does not abrade surface, checking the sanding belt. If the sanding belt have been worn, replace the new sanding belt and try again. The sanding belt must be kept in a dry place. -
Page 16: Plug Replacement
PLUG REPLACEMENT(UK and Ireland) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug,... -
Page 17: Declaration Of Conformity
Declaration of Conformity We, Importer Titan Power Tools (UK) Ltd BA22 8RT Declare that the product TTB136SDR 800W BELT SANDER Complies with the essential health and safety requirements of the following directives: 2004/108/EC EMC Directive. 2006/95/EC Low Voltage Directive. 98/37/EC until December 28th 2009 and then with 2006/42/EC from 29th December 2009 Machinery Directive. - Page 19 800W BELT SANDER TTB136SDR...
