Summary of Contents for Titan TTB891SDR

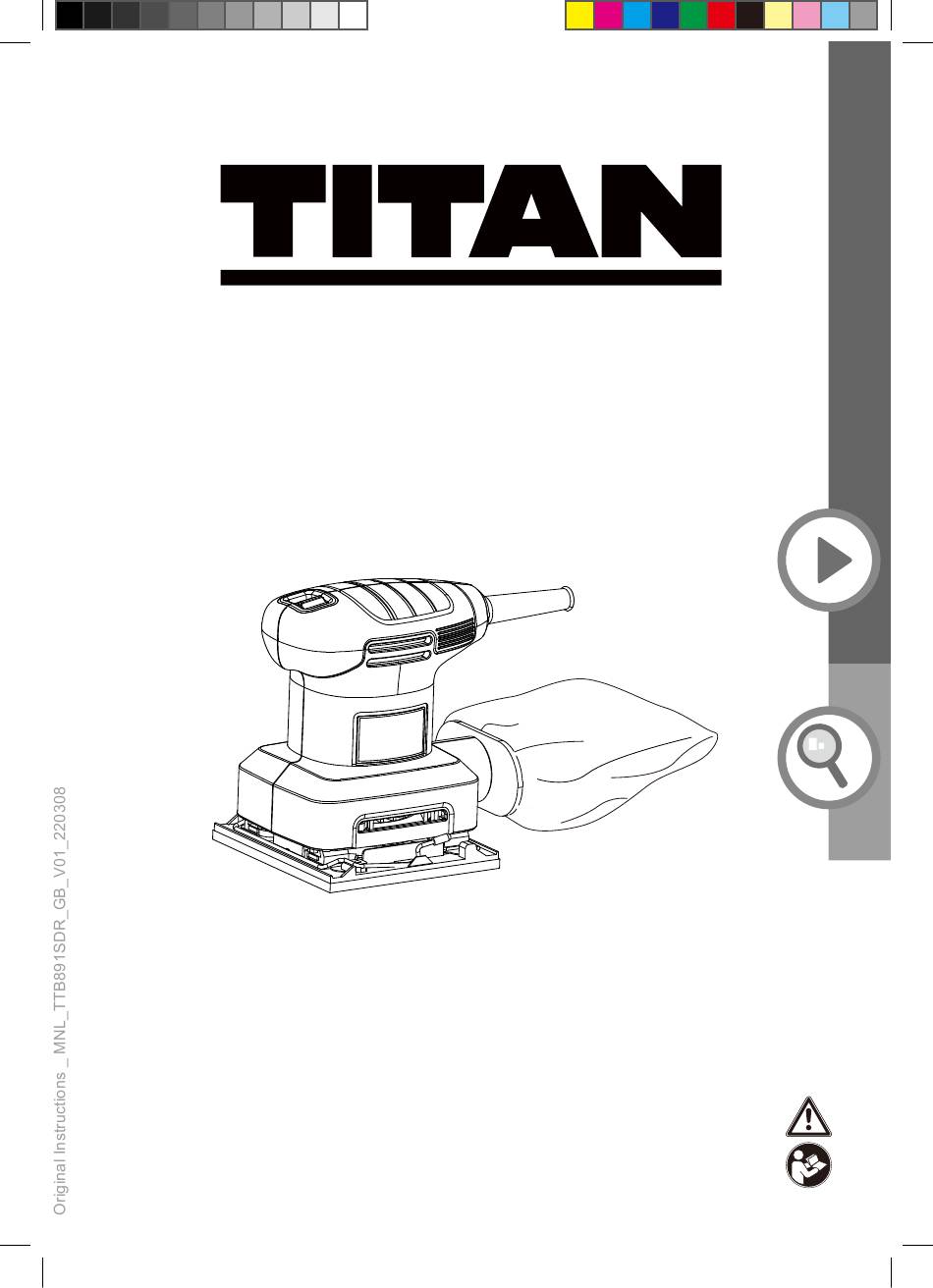

- Page 1 TTB891SDR WARNING: Read the instructions before using the product!
- Page 2 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity...
- Page 3 TTB891SDR Safety information Safety warnings General power tool safety warnings WARNING!Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
- Page 4 TTB891SDR Safety information Safety warnings >Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. >Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
- Page 5 TTB891SDR Safety information the tool. switch or energising power tools that have the switch on invites accidents. >Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 6 TTB891SDR Safety information Safety warnings >Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Page 7 TTB891SDR Safety information >Take special care to guard against these dusts, including the following: • All persons entering the work area must wear an appropriate dust mask specially designed for protection against harmful / toxic dusts, in addition to using the dust extraction facility, and keeping work area well ventilated.
- Page 8 TTB891SDR Safety information Safety warnings >Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate). >Plan your work schedule to spread any high vibration tool use across a longer period of time. Emergency Familiarise yourself with the use of this product by means of this instruction manual.
- Page 9 TTB891SDR Safety information WARNING! This product produces an electromagnetic circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer...
- Page 10 TTB891SDR Safety information Safety warnings > Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance; it is a real risk to your lungs! > Silica is a natural mineral present in large amounts in things like sand, sandstone and granite.
- Page 11 TTB891SDR Safety information Use a less powerful tool e.g. a block cutter instead of angle grinder. Using a different method of work altogether – e.g. using a nail gun to direct fasten cable trays instead of drilling holes first. Please always work with approved safety equipment,...
- Page 12 TTB891SDR Safety information Safety warnings VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 13 TTB891SDR Safety information The tool being in good condition and well maintained. The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles. And the tool is being used as intended by its design and these instructions.
- Page 14 TTB891SDR Safety information Symbols others the following symbols and abbreviations. Familiarize yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) mm Millimetre Hertz Kilogram Watt dB(A) Decibel (A-rated) /min or min Per minute m/s²...
- Page 15 TTB891SDR Your product Your product 1. On/off switch 7. Dust extraction outlet 2. Gripping surface a. Groove* 3. Air vents 8. Base plate 4. Power cord with plug 9. Clamp lever (x 2) 5. Vacuum adaptor 10. Clamp bar (x 2) a.
- Page 16 (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). RATING LABEL EXPLANATION TTB891SDR = Model number TT = TITAN B = 220-240V ~ 891 = Serial Number...
- Page 17 TTB891SDR Before you start Unpacking > > Remove all packing materials and shipping devices, if applicable. > Make sure the delivery contents are complete and free of any damage. If you your dealer. Using an incomplete or damaged product represents a hazard to people and property.
- Page 18 TTB891SDR Before you start Sanding paper Choosing the right sanding paper Sanding papers are available with different grain sizes (grit). The grain size is indicated with a number on the back side of the sanding paper, the higher the coarse <...
- Page 19 TTB891SDR Before you start Removing/Replacing > Grip one corner of the sanding paper (11) and pull it off the base plate (8) (Fig. 2). > Attach a new sanding paper as required. Fig. 2 Clamp system With the clamp system, standard non hook-and-loop type sanding paper can be held by clamp bars (10) at the front and rear of the product.
- Page 20 TTB891SDR Before you start Sanding paper > Align one end of the sanding paper (11) to one of the clamp bars (10) and hold it in position (Fig. 5). Fig. 5 > Pull the clamp lever (9) upwards along the base plate (8) and then press it down to engage it (Fig.
- Page 21 TTB891SDR Before you start WARNING! Always ensure the sanding paper is fully clamped and Punching Punch sanding papers without a hole pattern with the provided hole punch (12) after attaching it to the base plate (follow the clamping procedure above).
- Page 22 TTB891SDR Before you start Dust extraction WARNING! Attach the dust bag or a dust extraction device when using this product to sand wood in order to keep the working area clean! Wear a dust mask when operating this product! Dust can be harmful to health! Especially dust and chips of wood that has been treated, e.
- Page 23 TTB891SDR Before you start > Re-fit the dust bag(6a)to the connector(6c), ensuring that the elasticated collar is correctly located (Fig.11) and re-attach it to the product. Fig. 11 NOTE: lowers the performance of the product. Dust extraction > Align the tongues (5a) with the grooves (7a) and then insert the vacuum adaptor (5) into the dust extraction outlet (7) all the way to the stop (Fig.
- Page 24 TTB891SDR Before you start > Attach a dust extraction device e.g. a suitable vacuum cleaner to the vacuum adaptor (5) (Fig. 13). Fig. 13 > Turn the vacuum adaptor (5) anticlockwise to release and remove it. Connection to power supply >...
- Page 25 TTB891SDR more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity...
- Page 26 TTB891SDR Product functions Intended use This product is intended for sanding the following materials: wood, plastic, metal, materials or those harmful to health. It is to be used for dry operation only without water or other cooling liquids. operation and to observe all the instructions therein.
- Page 27 TTB891SDR Operation General operation > Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. > > Always hold the product on its gripping surface. Keep the gripping surface dry to ensure safe support.
- Page 28 TTB891SDR Operation / Care and maintenance Sanding Fig. 16 Fig. 17 > Switch the product on and wait until it runs at full speed before placing it on the workpiece. > Move the product back and forth with slow even speed.
- Page 29 TTB891SDR Care and maintenance > Regular and proper cleaning will help ensure safe use and prolong the life of the product. > Inspect the product before each use for worn and damaged parts. Do not WARNING! Only perform repairs and maintenance work according to...
- Page 30 TTB891SDR Care and maintenance UK plug IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows.
- Page 31 TTB891SDR Care and maintenance / Troubleshooting Storage > Switch the product off and disconnect it from the power supply. > Clean the product as described above. > Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
- Page 32 TTB891SDR Troubleshooting / Recycling and disposal Troubleshooting Problem Possible Cause Solution 2. Product does 2.1 Extension cord not 2.1 Use a proper extension not reach full suitable for operation cord power with this product 2.2 Power source (e. g. 2.2 Connect to another...
- Page 33 TTB891SDR Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN sheet sander) manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
- Page 34 TTB891SDR Declaration of conformity (UK) DECLARATION OF CONFORMITY Product • 1/4 sheet sander • TTB891SDR • Serial number: from 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 35 (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Producto/Produto • 1/4 sheet sander/Ponceuse vibrante 1/4/Lijadora orbital de 1/4/Lixadora orbital 1/4 • TTB891SDR • SN: 000001-999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nombre y dirección del fabricante o de su representante autorizado:...
- Page 36 TTB891SDR Declaration of conformity 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2011/65/UE relative à...
- Page 37 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.screwfix.com To view instruction manuals online, visit www.screwfix.ie www.kingfisher.com/products www.bricodepot.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.bricodepot.es...
