TTB890SDR
WARNING: Read the instructions before using the product!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTB890SDR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan TTB890SDR

Summary of Contents for Titan TTB890SDR

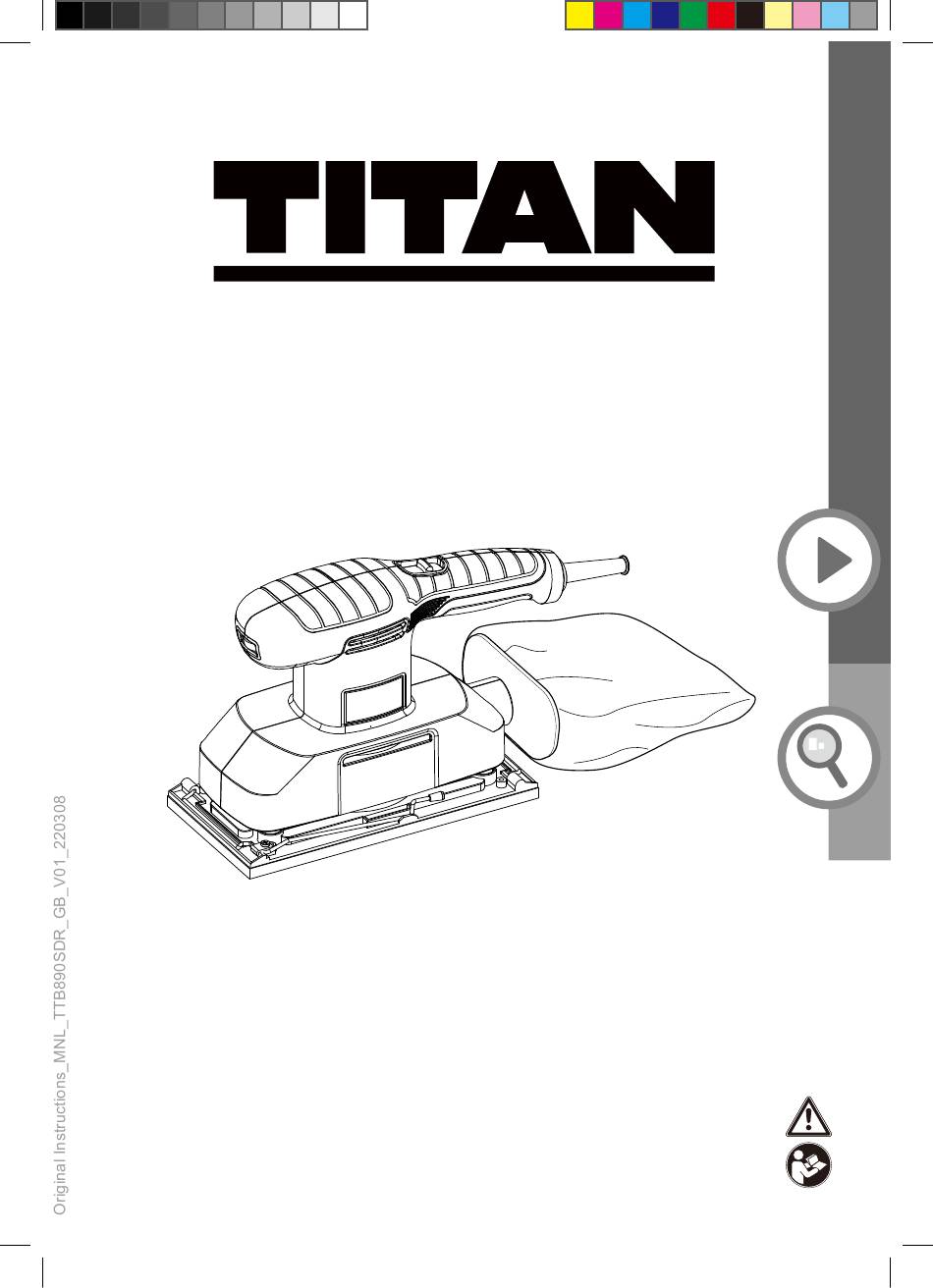

  • Page 1 TTB890SDR WARNING: Read the instructions before using the product!

  • Page 2: Table Of Contents

    Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee Declaration of conformity...
  • Page 3 TTB890SDR Safety information Safety warnings General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

  • Page 4: Safety Information

    TTB890SDR Safety information > Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, > pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
  • Page 5 TTB890SDR Safety information > Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. > Do not overreach. Keep proper footing and balance at all times.
  • Page 6 TTB890SDR Safety information > Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
  • Page 7 TTB890SDR Safety information >Take special care to guard against these dusts, including the following: • All persons entering the work area must wear an appropriate dust mask specially designed for protection against harmful / toxic dusts, in addition to using the dust extraction facility, and keeping work area well ventilated.
  • Page 8 TTB890SDR Safety information Safety warnings >Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate). >Plan your work schedule to spread any high vibration tool use across a longer period of time. Emergency Familiarise yourself with the use of this product by means of this instruction manual.
  • Page 9 TTB890SDR Safety information WARNING! This product produces an electromagnetic circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer...
  • Page 10 TTB890SDR Safety information Safety warnings > Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance; it is a real risk to your lungs! > Silica is a natural mineral present in large amounts in things like sand, sandstone and granite.
  • Page 11 TTB890SDR Safety information Use a less powerful tool e.g. a block cutter instead of angle grinder. Using a different method of work altogether – e.g. using a nail gun to direct fasten cable trays instead of drilling holes first. Please always work with approved safety equipment,...
  • Page 12 TTB890SDR Safety information Safety warnings VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
  • Page 13 TTB890SDR Safety information The tool being in good condition and well maintained. The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles. And the tool is being used as intended by its design and these instructions.
  • Page 14 TTB890SDR Safety information Symbols others the following symbols and abbreviations. Familiarize yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) mm Millimetre Hertz Kilogram Watt dB(A) Decibel (A-rated) /min or min Per minute m/s²...

  • Page 15: Your Product

    TTB890SDR Your product Your product 1. Speed dial b. Tongue 2. Gripping surface c. Connector 3. Air vents 9. Dust extraction outlet 4. On/off switch a. Groove* 5. Handle 10. Base plate 6. Power cord with plug 11. Clamp lever (x 2) 7.
  • Page 16 (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). RATING LABEL EXPLANATION TTB890SDR = Model number TT = TITAN B = 220-240V ~ 890 = Serial Number...

  • Page 17: Before You Start

    TTB890SDR Before you start Unpacking > > Remove all packing materials and shipping devices, if applicable. > Make sure the delivery contents are complete and free of any damage. If you your dealer. Using an incomplete or damaged product represents a hazard to people and property.
  • Page 18 TTB890SDR Before you start Sanding paper Choosing the right sanding paper Sanding papers are available with different grain sizes (grit). The grain size is indicated with a number on the back side of the sanding paper, the higher the coarse <...
  • Page 19 TTB890SDR Before you start Removing / Replacing > Grip one corner of the sanding paper (13) and pull it off the base plate (10) (Fig. 2). > Attach a new sanding paper as required. Fig. 2 Clamp system With the clamp system, standard non hook-and-loop type sanding paper can be held by clamp bars (12) at the front and rear of the product.
  • Page 20 TTB890SDR Before you start Sanding paper > Align one end of the sanding paper (13) to one of the clamp bars (12) and hold it in position (Fig. 5). Fig. 5 > Pull the clamp lever (11) upwards along the base plate (10) and then press it down to engage it (Fig.
  • Page 21 TTB890SDR Before you start WARNING! Always ensure the sanding paper is fully clamped and Punching Punch sanding papers without a hole pattern with the provided hole punch (14) after attaching it to the base plate (follow the clamping procedure above).
  • Page 22 TTB890SDR Before you start Dust extraction WARNING! Attach the dust bag or a dust extraction device when using this product to sand wood in order to keep the working area clean! Wear a dust mask when operating this product! Dust can be harmful to health! Especially dust and chips of wood that has been treated, e.
  • Page 23 TTB890SDR Before you start > Re-fit the dust bag (8a) to the connector (8c) , ensuring that the elasticated collar is correctly located (Fig.11) and re-attach it to the product. Fig. 11 NOTE: lowers the performance of the product. Dust extraction >...
  • Page 24 TTB890SDR Before you start Dust extraction > Attach a dust extraction device e. g. a suitable vacuum cleaner to the vacuum adaptor (7) (Fig. 13). > Turn the vacuum adaptor (7) anticlockwise and remove it (7). Fig. 13 Connection to power supply >...

  • Page 25: In More Detail

    TTB890SDR more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee Declaration of conformity...
  • Page 26 TTB890SDR Product functions Intended use This product is intended for sanding the following materials: wood, plastic, metal, materials or those harmful to health. It is to be used for dry operation only without water or other cooling liquids. operation and to observe all the instructions therein.
  • Page 27 TTB890SDR Product functions / Operation Fig. 16 “I” - On Fig. 17 “O” - Off General operation > Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.
  • Page 28 TTB890SDR Operation Sanding WARNING! working area! Always use a dust extraction system and wear a dust mask to protect WARNING! Sound level may exceed 80dB (A). Therefore always wear ear defenders when sanding. > Ensure the workpiece is free of obstacles like nails or screws before operation.
  • Page 29 TTB890SDR Care and maintenance The golden rules for care WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove debris from it after each use and before storage.
  • Page 30 TTB890SDR Care and maintenance Power cord If the supply cord of this power tool is damaged, it must be replaced by a specially prepared supply cord available through the service organization. UK plug IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...

  • Page 31: Troubleshooting

    TTB890SDR Care and maintenance / Troubleshooting Repair This product does not contain any parts that can be repaired by the consumer. checked and repaired. Storage > Switch the product off and disconnect it from the power supply. > Clean the product as described above.

  • Page 32: Recycling And Disposal

    TTB890SDR Troubleshooting / Recycling and disposal Troubleshooting Problem Possible Cause Solution 1. Product does 1.1 Not connected to power 1.1 Connect to power not start supply supply 1.2 Power cord or plug is 1.2 Check by a specialist defective electrician 1.3 Other electrical defect to...
  • Page 33 TTB890SDR Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN sheet sander) manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
  • Page 34 TTB890SDR Declaration of conformity (UK) DECLARATION OF CONFORMITY Product • 1/2 sheet sander • TTB890SDR • Serial number: from 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.

  • Page 35: Declaration Of Conformity

    (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Producto/Produto • 1/2 sheet sander/Ponceuse vibrante 1/2/Lijadora orbital de 1/2/Lixadora orbital 1/2 • TTB890SDR • SN: 000001-999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nombre y dirección del fabricante o de su representante autorizado:...
  • Page 36 TTB890SDR Declaration of conformity 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2011/65/UE relative à...
  • Page 37 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.screwfix.com To view instruction manuals online, visit www.screwfix.ie www.kingfisher.com/products www.bricodepot.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.bricodepot.es...
