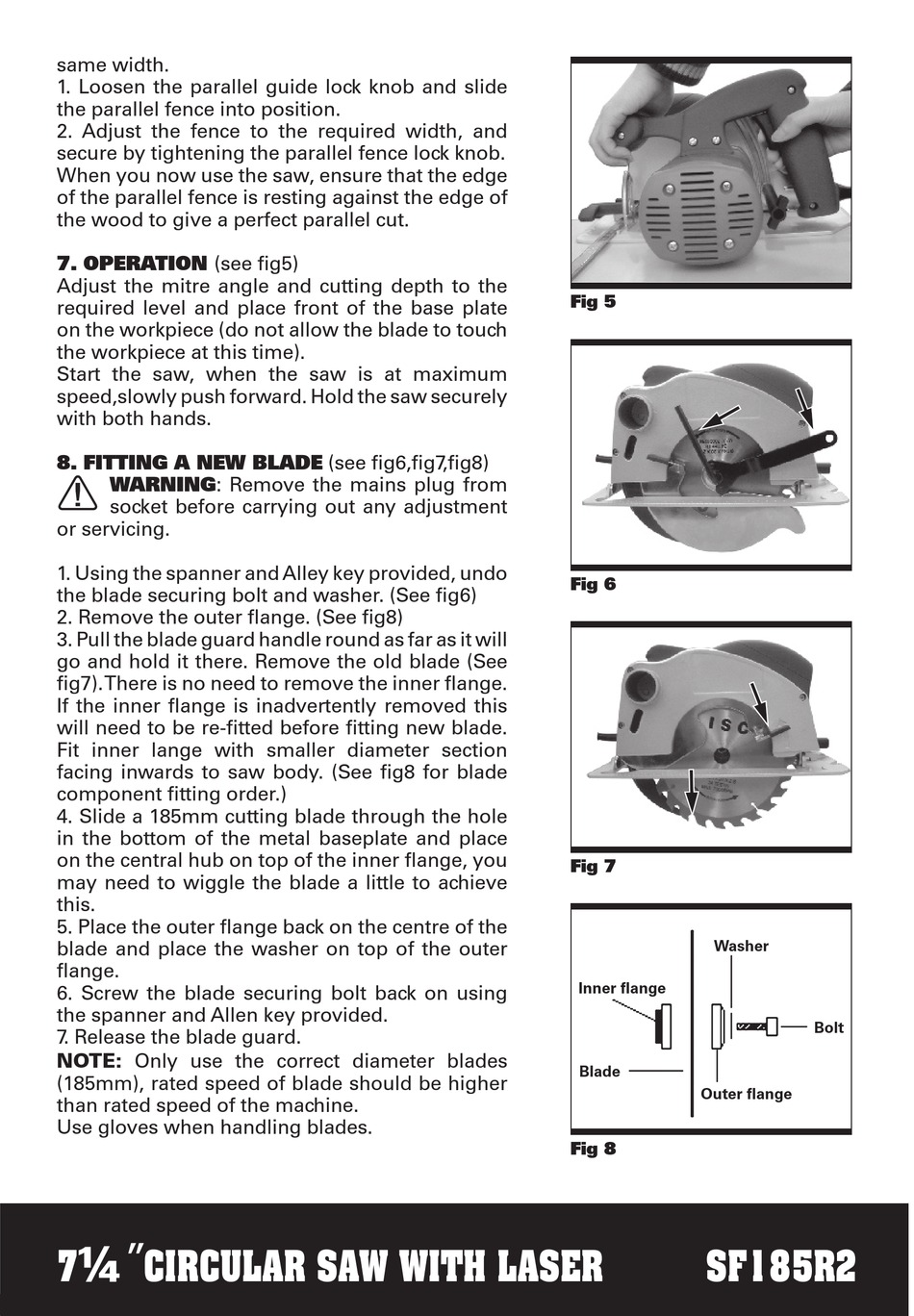

Titan SF185R2 Safety And Operating Manual page 11

same width.
1. Loosen the parallel guide lock knob and slide
the parallel fence into position.
2. Adjust the fence to the required width, and
secure by tightening the parallel fence lock knob.
When you now use the saw, ensure that the edge
of the parallel fence is resting against the edge of
the wood to give a perfect parallel cut.
7. OPERATION (see fig5)
Adjust the mitre angle and cutting depth to the
required level and place front of the base plate
on the workpiece (do not allow the blade to touch
the workpiece at this time).
Start the saw, when the saw is at maximum
speed,slowly push forward. Hold the saw securely
with both hands.
8. FITTING A NEW BLADE (see fig6,fig7 ,fig8)
WARNING: Remove the mains plug from
socket before carrying out any adjustment
or servicing.
1. Using the spanner and Alley key provided, undo
the blade securing bolt and washer. (See fig6)
2. Remove the outer flange. (See fig8)
3. Pull the blade guard handle round as far as it will
go and hold it there. Remove the old blade (See
fig7).There is no need to remove the inner flange.
If the inner flange is inadvertently removed this
will need to be re-fitted before fitting new blade.
Fit inner lange with smaller diameter section
facing inwards to saw body. (See fig8 for blade
component fitting order.)
4. Slide a 185mm cutting blade through the hole
in the bottom of the metal baseplate and place
on the central hub on top of the inner flange, you
may need to wiggle the blade a little to achieve
this.
5. Place the outer flange back on the centre of the
blade and place the washer on top of the outer
flange.
6. Screw the blade securing bolt back on using
the spanner and Allen key provided.
7. Release the blade guard.
NOTE: Only use the correct diameter blades
(185mm), rated speed of blade should be higher
than rated speed of the machine.
Use gloves when handling blades.
7 CIRCULAR SAW WITH LASER
Fig 5
Fig 6
Fig 7
Fig 8
SF185R2
