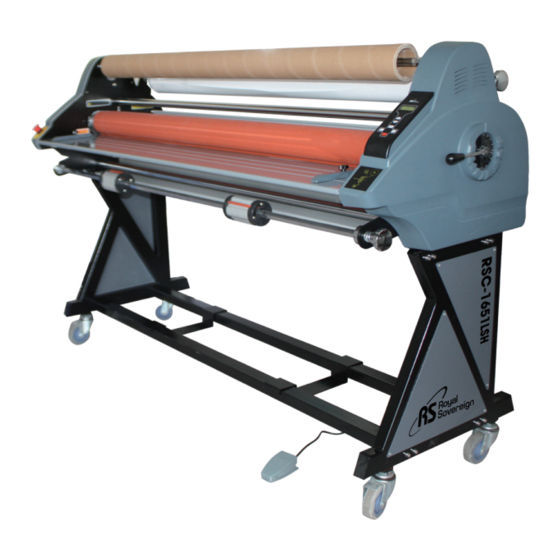

Royal Sovereign RSC-LS series Owner's Manual

Royal Sovereign RSC-LS series Owner's Manual

Hide thumbs Also See for RSC-LS series:

Advertisement

OWNER'S MANUAL
RSC-LS/LSH/CW/HW SERIES Laminators
Read all instructions carefully before use.
For any Customer Support needs please choose the
Customer Support tab
on www.royalsovereign.com
Royal Sovereign International Inc.
www.royalsovereign.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSC-LS series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Royal Sovereign RSC-LS series

  • Page 1 OWNER'S MANUAL RSC-LS/LSH/CW/HW SERIES Laminators Read all instructions carefully before use. For any Customer Support needs please choose the Customer Support tab on www.royalsovereign.com Royal Sovereign International Inc. www.royalsovereign.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS TOPIC PAGE 1. Introduction ......................3 2. Safety Precautions ....................3 3. Installation ......................4 4. Included with Laminator ..................5 5. Product Identification ................... 6 6. Control Panel ...................... 7 7. Roller Nip Settings ....................8 8.
  • Page 3: Introduction

    RSC-LS/LSH/CW/HW SERIES 1. INTRODUCTION Thank you for choosing a Royal Sovereign laminator. It has been designed and manufactured to provide years of continuous service. For complete operating and maintenance information please read this manual thoroughly. Upon receipt of your laminator, please inspect the box, the machine and all other contents for shipping damage.
  • Page 4: Installation

    (“OFF” position) when moving to a different location. ELECTRICAL REQUIREMENTS Royal Sovereign recommends that a licensed electrician ensures proper power installation to your laminator in accordance with electrical codes in your area. The laminator should have a dedicated power line.
  • Page 5: Included With Laminator

    RSC-LS/LSH/CW/HW SERIES 4. INCLUDED WITH LAMINATOR Thoroughly inspect the parts and the unit. It is imperative that any missing parts are reported and a claim is filed with the reseller immediately upon receipt of shipment. Quantity Picture Part Name Laminator Owner's Manual 3´´...
  • Page 6: Product Identification

    5. PRODUCT IDENTIFICATION PART NAME EMERGENCY SWITCH FEED TABLE MAIN ROLLER ASSEMBLY STAND FOOT PEDAL TENSION CONTROL KNOBS PRESSURE LEVER CONTROL PANEL UPPER IDLE BAR RELEASE LINER TAKE UP LASER SYSTEM FOR SAFETY REMOTE CONTROL FILM SUPPORT Except US, CA Option (RSC-LS/LSH) REAR-REWINDER Standard (RSC-CW/HW)
  • Page 7: Control Panel

    RSC-LS/LSH/CW/HW SERIES 6. CONTROL PANEL When the machine is initially turned on, the LED display window will show the speed set at 1. RSC-LSH/HW SERIES RSC-LS/CW SERIES Control Buttons 1. SPEED DISPLAY: Display’s current Speed. 2. SPEED BUTTON: Adjusting the speed of the rollers. To change the speed of the rollers, press the up or down arrow button.
  • Page 8: Roller Nip Settings

    7. ROLLER NIP SETTING It is important to adjust the roller nip settings to the appropriate thickness of the board being used. Use the guide below to adjust to the correct position. Metric Inches (mm) Lamination Lamination 1/25˝ 3/6˝~1/4˝ 3/8˝~1/2˝ 10~13 3/5˝~18/25˝...
  • Page 9: Using Cross Cutter

    Figure 2 Figure 3 10. LOADING FILM Royal Sovereign films are wound with the adhesive side facing the inside of the roll (adhesive in). Loading films to upper and lower film shafts: (See page 5 for assistance with parts identification.) 1.
  • Page 10: Threading Film

    11. THREADING FILM TAKE UP DEVICE COLD FILM PAPER BACK HOT ROLLER UPPER IDLE BAR BACKING PAPER BASE FILM LOEWER IDLE BAR 11.1. Decaling 1. Turn the power switch on (“I” position). The Power switch is located on the rear left side of the unit. 2.
  • Page 11 RSC-LS/LSH/CW/HW SERIES 9. Cut and separate the release liner and the film. (Figure 3) Figure 3 10. Thread the craft paper behind the Lower Idle Bar to the top film that is resting on the main roller (do not use the Lower Idle Bar for Mounting). (Figure 4) 11.
  • Page 12: Mounting

    11.2 Mounting 1. Lay the decaled image face down on a flat surface. Carefully peel back and put a crease along the edge of the release liner (Approximately 1 inch or 25mm, Figure 1). Figure 1 2. With the image facing up, align the image onto the board. Press firmly from the center out (Figure 2).
  • Page 13: Installation Of The Front Feed And Rear Rewind Options

    RSC-LS/LSH/CW/HW SERIES 12. INSTALLATION OF FRONT FEEDER and REAR REWINDER OPTIONS NOTE: Below options are to be installed by an authorized RS reseller. Installation of the Front Feeder Option (Includes 2 brackets, one spindle, and mounting hardware). 1. Install the Front Feeder to the inside of the front frames using Figure 1 four 1/4"...
  • Page 14: Maintenance

    13. MAINTENANCE Cleaning the Body of the laminator 1.To clean the machine body, dampen a cloth with water only and gently wipe the machine clean. Removing Adhesive Build Up 1. Remove the film from the laminator. 2. Use a damp (water only) cloth and a rubber gum eraser to remove the adhesive on the Teflon (metal) and silicone rollers.
  • Page 15: Specifications

    RSC-LS/LSH/CW/HW SERIES 15. SPECIFICATIONS DESCRIPTION RSC-1401LS/LSH RSC-1402CW/HW RSC-1651LS/LSH Power supply AC100V, 200V, 220~240V 50/60Hz AC120V 60Hz 100W(Others) Power Consumption 100W 1500W 1500W 100W 1500W 160W(US,CA) Roller Diameter ø82 ø82 ø95 Safety System Laser system for safety Laminating Speed (max) 5m/min 5m/min 5m/min Laminating Width...
  • Page 16: Warranty

    Royal Sovereign International and cannot be modified or amended. Royal Sovereign’s sole and exclusive liability and the customer’s sole and exclusive remedy under this warranty shall be, at Royal Sovereign’s option, to repair or replace any such defective part or product. These remedies are only available if Royal Sovereign’s examination of the product discloses to Royal Sovereign’s satisfaction that such defects...
