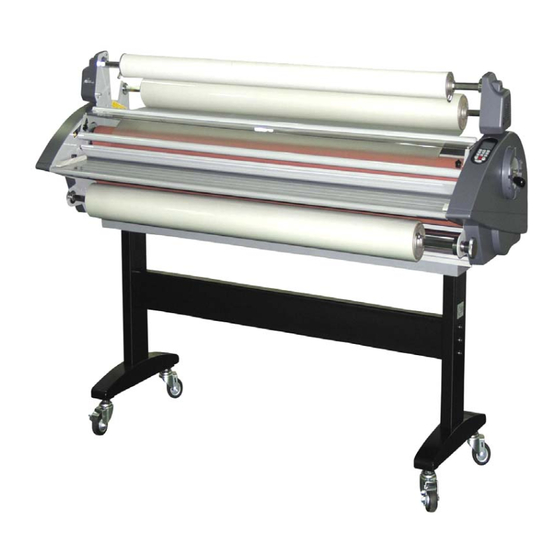

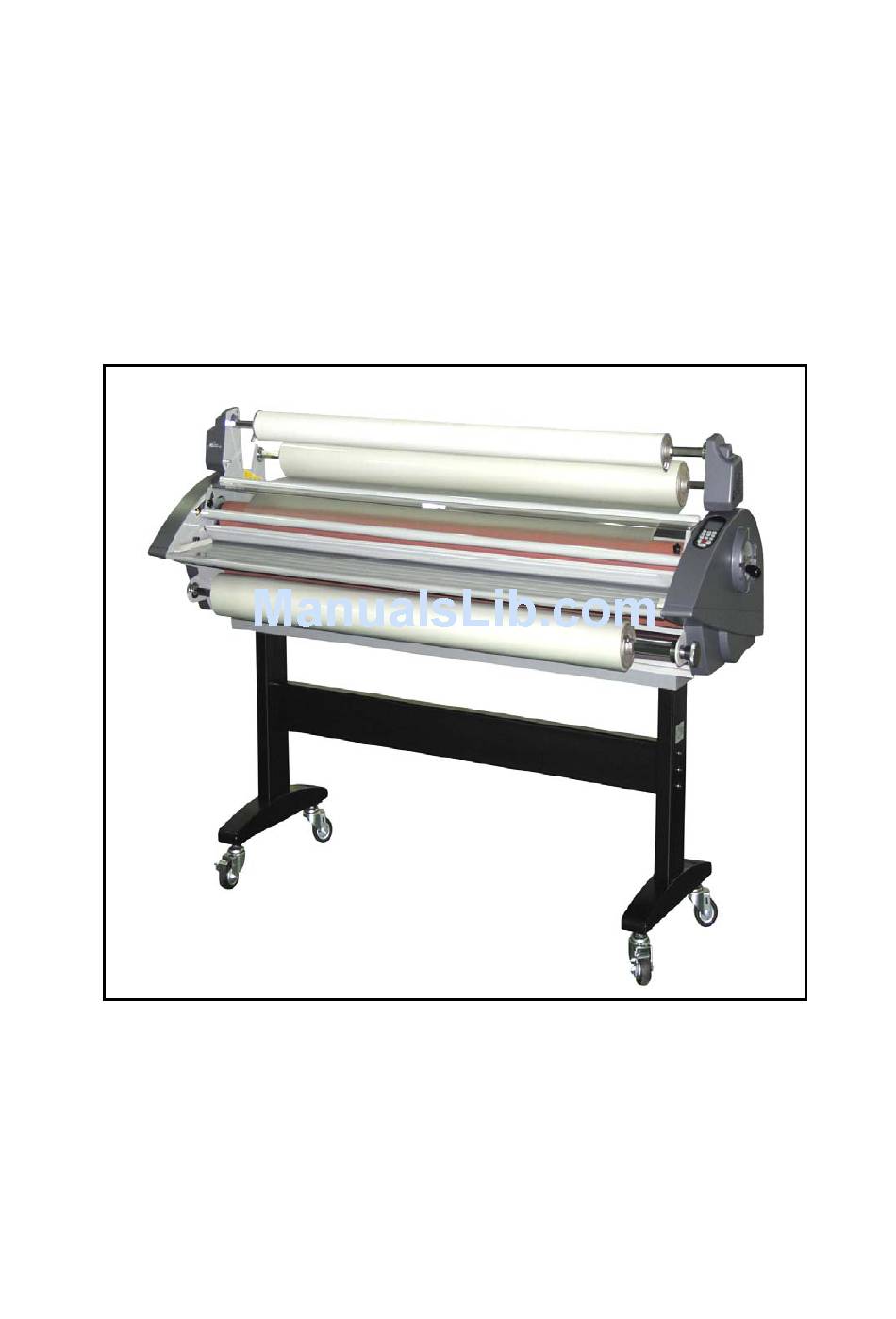

- Page 1 LAMINATORS Royal Sovereign OWNER'S MANUAL RSC-1650H/1650C PLEASE READ AND SAVE INSTRUCTIONS - 1 -...
-
Page 2: Table Of Contents
TOPICS INSTRUCTION --------------------------------------------------------------- SAFETY PRECAUTIONS CHARACTERISTICS SPECIFICATIONS --------------------------------------------------------------- NAMES OF MAJOR PARTS OF MACHINE------------------------------------ SETTING UP FILM ------------------------------------------------------------- HANGING FILM ---------------------------------------------------------------- CONTROL OF ROLLER PRESSURE INSTRUCTIONS FOR CONTROL PANEL 1.FUNCTIONS OF CONTROL PANEL ---------------------------------- 2.HOW TO USE BUTTONS LAMINATING STEPS METHOD FOR USING CUTTER ------------------------------------------------ 1.CROSS CUTTER ------------------------------------------------------------ IMPORTANT SAFETY CONCERNS... -
Page 3: Instruction
Thank you for purchasing a Royal Sovereign Roll Laminator. It has been designed and manufactured to provide years of continuous service in the professional environment. To insure high quality lamination, please read this instruction manual thoroughly. This manual will provide you with complete operating and maintenance information. -
Page 4: Characteristics
RS Roll Laminator Line is advanced laminators with time transcendental design, utilizing the latest in laminating technology. It is designed for you to set temperature and speed as necessary. Also you can laminate anything at high speed,regardless of thickness of material and type of film.It is also designed for convenient use by anyone through the simple procedure of adjusting film tension in accordance with the thickness of film and materials to be laminated. -
Page 5: Names Of Major Parts Of Machine
NAMES OF MAJOR PARTS OF MACHINE PART NAME FRAME-GUIDE,PAPER TAKE-UP SWITCH TAKE-UP BOBBIN IDLE BAR TABLE-FRONT HOT ROLLER ASS'Y-STAND CONTROL PANEL PRESSURE LEVER TENSION CONTROL KNOB SAFETY COVER FOOT SWITCH REMOCON SWITCH RSC-1650H UPPER ROLLER - 5 - RSC-1650H ○ ○... -
Page 6: Setting Up Film
주 주 름 름 방 방 지 지 부 부 표 시 창 1. Set the glossy side of upper/lower film to face the heat. ( Glossy side is PET film and matte side is thermal polymer laminating film.) 2. Like picture 1, insert core into the left side of upper/lower film shaft. 3. -
Page 7: Hanging Film
TAKE UP DEVICE PAPER BACK HOT ROLLER PAPER BACK 1. Set up cold film below the upper bar of the machine. (Set the same as methord of the HOT film for protect paper of lower part) 2. Set the pressure lever to the 15mm, open mode. 3. -
Page 8: Control Of Roller Pressure
***Methods of controlling pressure of the roller** 1. For setting, pull the pressure lever out and turn the lever to following the indication 2. OPEN/15mm(Board) : For laminating 15mm thick board (RSC-1650H/1650C) 3. 10~13mm(Board) : For laminating 10~13mm thick board 4. -
Page 9: Instructions For Control Panel
INSTRUCTIONS FOR CONTROL PANEL We designed this machine standing by user’s convenience. You can manipulate speed and temperature . ***Terms*** - 9 -... -
Page 10: Functions Of Control Panel
1. FUNCTIONS OF CONTROL PANEL RUN/STOP BUTTON SPEED BUTTON LED OF SPEED : Display or speed LED OF TEMP. TEMP.BUTTON REVERSE BUTTON 2.HOW TO USE BUTTONS RUN / STOP BUTTON Push the button to stop it. SPEED BUTTON Push the SPEED button button to decrease the speed. -
Page 11: Laminating Steps
1. Put cold roll film on upper bar.(Set the same as methord of the HOT film for protect paper of lower part) 2. Pull COLD film, and fix it so that backside protecting paper can be wound on take-up mandrel clockwise. -
Page 12: Method For Using Cutter
METHOD FOR USING CUTTER **Cross Cutter** 1. It is on the back side of the machine. 2. After lamination, move cutter to a point about 1/3 of the width of lamination. 3. Grasp film with one hand and press the cutter, cutter downward and slide it to the direction intending to cut with another hand. -
Page 13: Important Safety Concerns
IMPORTANT SAFETY CONCERNS 1.Please be cautious that neck tie, necklace, long hair, clothes are kept well away while operation. 2.Prevent children from accessing the machine Extreme Heat Will Cause Injury 3.Place the machines on the plated place in order to prevent the machine from damage. 4.Make certain that the machine is connecterd to an adequate power souce. -
Page 14: It's Not Out Of Order
It's not out of order Cause ON mode. tight. ASSEMBLY PARTS MODEL RSC-1650H RSC-1650C - 14 - CHECK POINT 1. Check the power cord. 2. Check if the switch is on. 3. Check if the emergency switch is off. 4. Check the s/w of safety cover is right. -
Page 15: Warranty
1. For six month from the date of purchase, Royal Sovereign International Corporation or its authorized service center will repair this product free of charge if it is defective in material or workmanship. 2. This Limited Warranty does not include cleaning, or damage caused by accident, neglect, misuse or...
