Elba EBO-D7080D(SS) Owner's Manual
  1. Manuals
  2. Brands
  3. Elba Manuals
  4. Oven
  5. EBO-D7080D(SS)
  6. Owner's manual
Elba EBO-D7080D(SS) Owner's Manual

Elba EBO-D7080D(SS) Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

BUILT-IN OVEN
MODEL: EBO-D7080D(SS)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBO-D7080D(SS) and is the answer not in the manual?

Questions and answers

Related Manuals for Elba EBO-D7080D(SS)

Summary of Contents for Elba EBO-D7080D(SS)

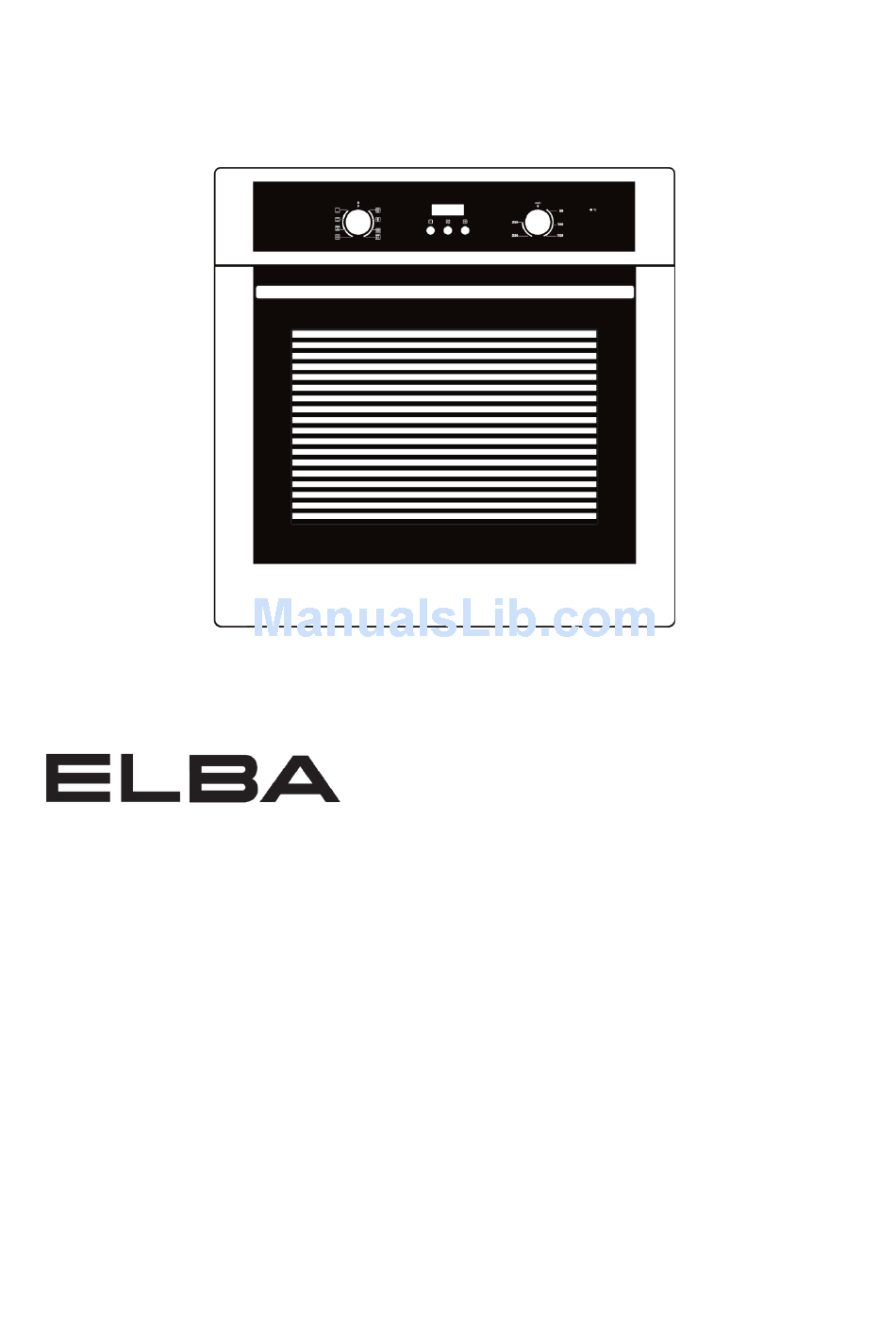

  • Page 1 BUILT-IN OVEN MODEL: EBO-D7080D(SS) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS …………..…………………………………………………………………………………………….3 ATTENTIONS …………………………………………………………………………………………………………………………4 INSTALLATION …………………..…………………………………………………………………………………………….4 BEFORE THE INSTALLATION………………………………………………………………………………………………4 INSTALLATION OF BUILT-IN OVEN…………………………………………………………………………………………5 SECURING THE OVEN TO THE CABINET…………………………………………………………………………………5 ACCESSORIES………………………………………………………………………………………………………………………6 CONNECTION OF THE APPLIANCE …………………………………………………………………………………………7 FITTING ON A POWER SUPPLY CABLE……………………………………………………………………………………7 CONNECTING THE SUPPLY CABLE TO THE MAINS…………………………………………………………………7 HOW TO USE YOUR OVEN ……………………………………………………………………………………………………….8 PRODUCT DESCRIPTION...

  • Page 3: Safety Precautions

    We recommend that you read the instructions in this owner’s manual carefully before using it for the best performance and to extend the lifespan of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance. 1.

  • Page 4: Attentions

     In order to avoid electric shock, please make sure the oven has been shut off before carrying out the maintenance.  Use only original accessories provided by ELBA or its authorized service center.  Do not use wet parts of body to touch the oven.

  • Page 5: Installation Of Built-In Oven

    3.2 Installation of Built-in Oven The material of the cabinet should be insulated, and the clearance between the edge of the cabinet and the oven should be over 100mm for ventilation. 3.3 Securing the Oven to the Cabinet 1. Fit oven into the cabinet recess. 2.

  • Page 6: Accessories

    3.4 Accessories Grilling Rack For roasting and grilling. Baking Tray For cooking large quantity of food such as cakes, patries, frozen food and etc. For use in collecting fat/spillage and meat juices. Shelves Positioning To ensure the appliance to operate safely, correct placement of the shelves on the side rails is required.

  • Page 7: Connection Of The Appliance

    Note: Please do not use the handle to carry or move the oven during installation or handling. The panels of the adjacent cabinets must be made of heat-resistant material which can withstand temperatures of up to 100℃. In compliance with current safety standards, contact with the electrical parts of the oven must not be possible once it has been installed.

  • Page 8: How To Use Your Oven

    Before making the connection, check that:  The electrical safety of this appliance can only be guaranteed if the appliance is correctly and efficiently earthed, in compliance with regulations on electrical safety.  Always ensure that the earthling is connected. If you have any doubts please contact a qualified technician to check the connection.

  • Page 9: Product Description

    6. PRODUCT DESCRIPTION Symbol Function Descriptions Oven Lamp: Enables the user to observe the progress of cooking without opening the door. Defrost: The circulation of air at room temperature enables quicker thawing of frozen food (without the use of any heat). It is a gentle but quick way to speed up the defrosting time and thawing of ready-made and cream filled dishes.

  • Page 10: Programme And Functions

    7. PROGRAMME AND FUNCTIONS 7.1 Current Time Setting When the oven is first connected to the electrical supply, the display automatically shows “12.30” with a beep sound once and the “.” flashes. Ensure the correct time of the day is set before using the oven.

  • Page 11: Manual Mode

    7.5 Manual Mode In manual mode, only the time of the day and the symbol “ ” lights up. The cooking duration has to be controlled by the user. If the oven is not operated after 5 hours, the timer will flash every second to alert.

  • Page 12: Cleaning And Maintenance

    8. CLEANING AND MAINTENANCE Before cleaning or performing maintenance on your oven, disconnect the oven from the power supply. To extend the lifespan of your oven, it must be cleaned frequently. The enamel or stainless steel parts should be cleaned with lukewarm water without using any abrasive powders or corrosive substances which could damage the surface.

  • Page 13: Technical Specification

    9. TECHNICAL SPECIFICATION Model EBO-D7080D(SS) Capacity 220 – 240V Voltage Frequency 50/60Hz Rated Power Max 3000W Energy Class Energy Efficiency Index 106.0 Energy Consumption 0.89kWh/cycle (Air Force Mode) Energy Consumption 0.99kWh/cycle (Conventional Mode) Product Dimension (mm) 595 (W) x 595 (H) x 575 (D) Built-in Dimension (mm) 560 (W) x 600 (H) x 570 (D) Carton Dimension (mm)

Table of Contents
