CONNECTING THE 2X1 DVIKVM DL SWITCH
1.
Connect the included dual-link DVI cables between the DVI outputs of each
computer to the DVI input connectors on the 2X1 DVIKVM DL Switch.
2.
Connect the included USB cables from each computer to the USB In ports
on the 2X1 DVIKVM DL Switch.
3.
Connect the included 3.5mm mini-stereo cables from each computer / audio
source to the 3.5mm mini-stereo input jacks on the 2X1 DVIKVM DL Switch.
4.
Connect the DVI output on the 2X1 DVIKVM DL Switch to an HDTV display
using a DVI cable.
5.
Connect a 3.5mm mini-stereo cable from the Audio Out of the 2X1 DVIKVM
DL Switch to the audio/video device or a set of powered speakers.
6.
Connect the included 5V DC power supply to the 2X1 DVIKVM DL Switch.
Plug the AC power cord from the power supply to an available electrical
outlet.

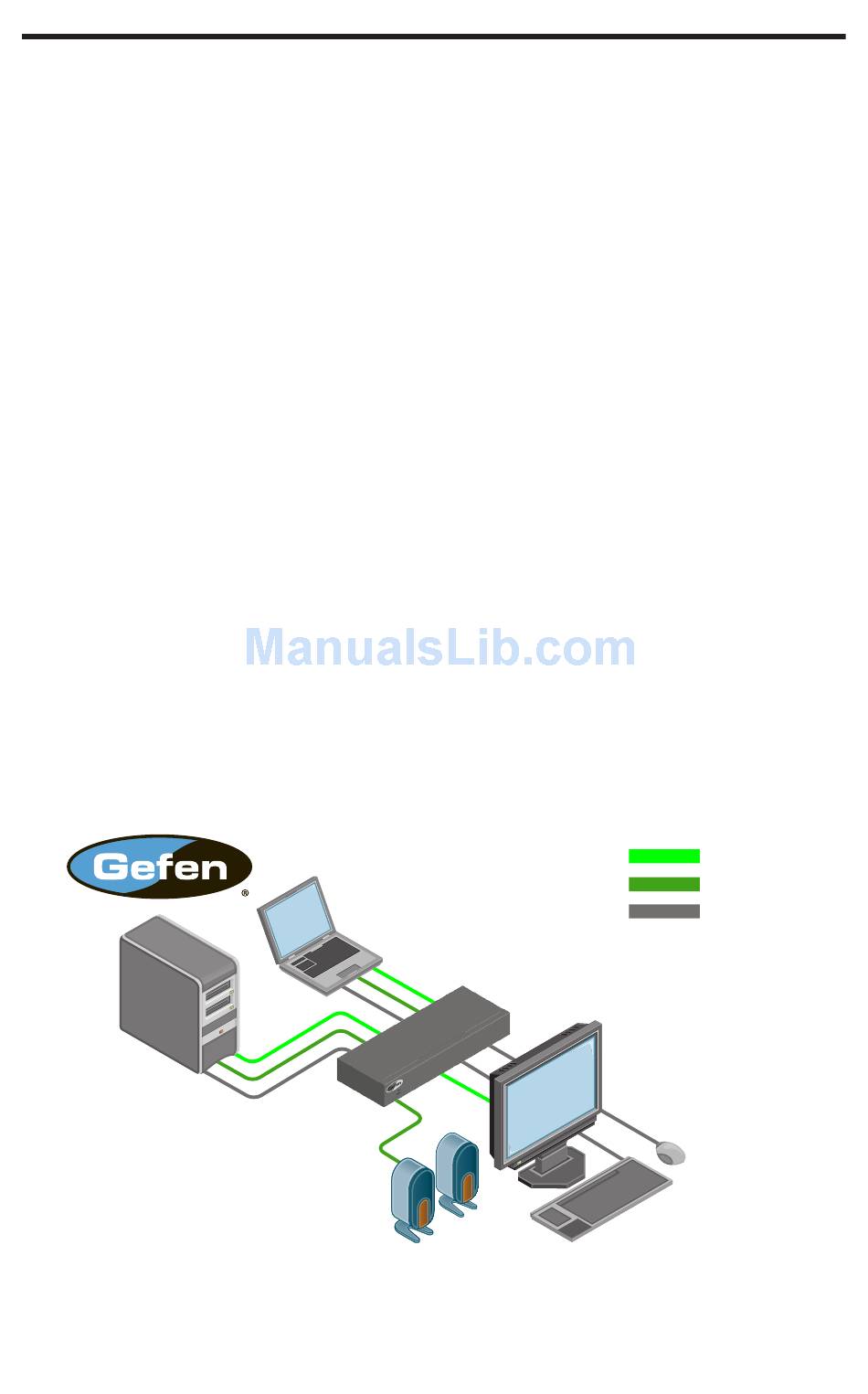

Wiring Diagram for the 2X1 DVIKVM DL Switch
Computer
How to Connect the 2X1 DVIKVM DL Switch
DVI KVM Switcher
DVI (SL /DL) CABLE
MINI STEREO AUDIO CABLE
USB CABLE
Computer
Powered
Speakers
8
Display
w/USB & Audio
EXT-DVIKVM-241DL
