Summary of Contents for Gefen DL

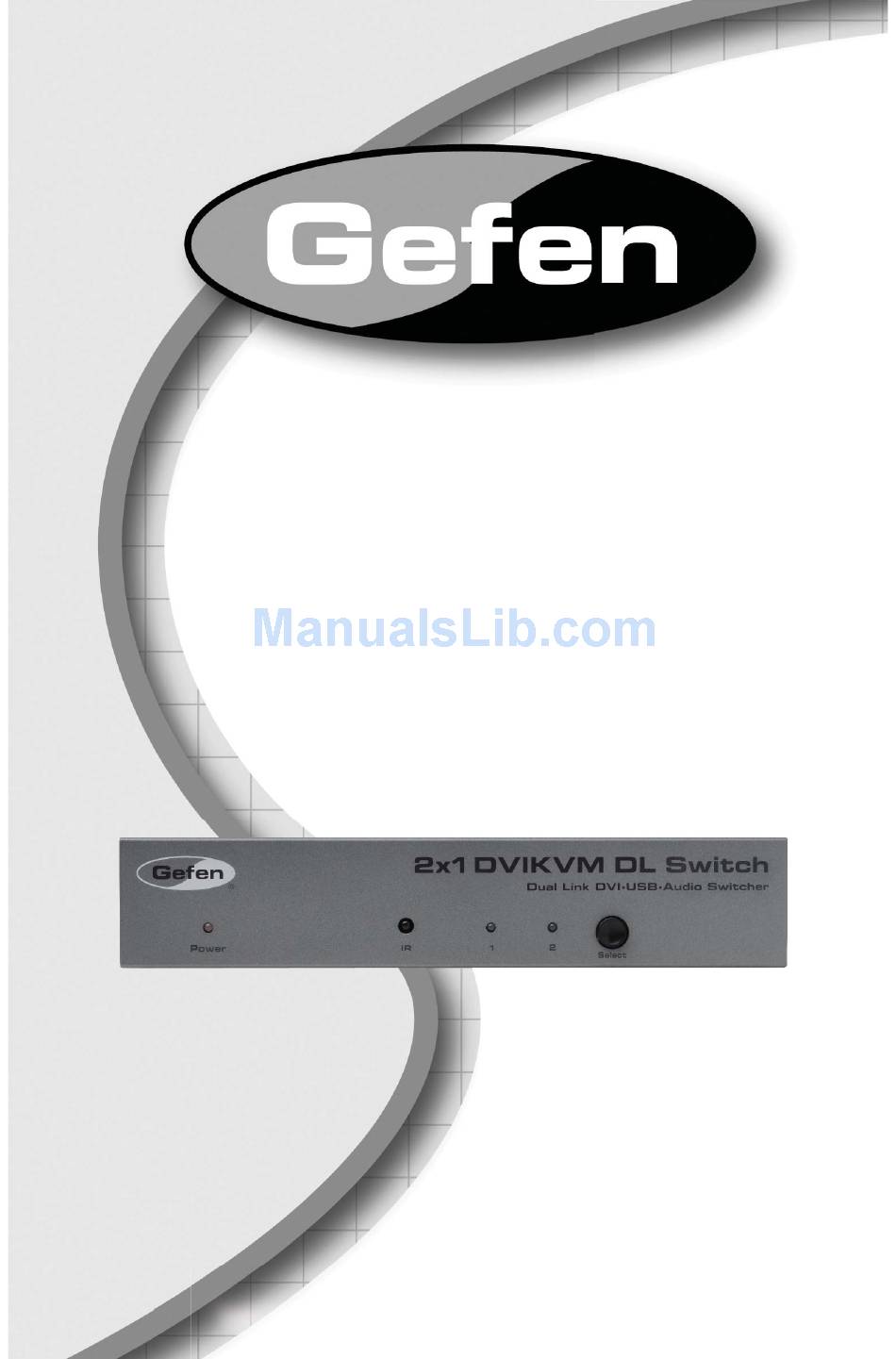

- Page 1 ® 2x1 DVI Dual Link KVM Switcher E X T - D V I K V M - 2 4 1 D L U S E R M A N U A L www.gefen.com...
-
Page 2: Asking For Assistance
Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen, LLC. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 2X1 DVI KVM DL Switcher © 2011 Gefen, LLC., All Rights Reserved... -
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the DL Switcher Operation Notes RMT2-IR Installation IR Code Confl icts / IR Extender Installation Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
DVI & USB 2.0 equipped computers (PC or Mac) - using only one keyboard, display and mouse. The 2X1 DL cross platform switcher saves space - there’s no need to work on a desk crowded with double displays, keyboards and mouse devices. It saves time - there’s no need to move from one monitor to another to access different... -
Page 5: Features
• Auto EQ feature compensates for poor quality cables when necessary • Switches between two dual link DVI, USB 2.0 and Audio Sources • Discrete IR Remote control Includes: (1) 2x1 DVI DL Switcher (1) 5V DC Power Supply (1) RMT2-IR Remote Control (2) 6ft Dual Link DVI cables... -
Page 6: Panel Descriptions
Power Indicator Audio In 1 5V DC Input DVI In 1 PANEL DESCRIPTIONS Infrared Indicates which input is selected Audio In 2 Audio Out DVI Out DVI In 2 Source Selector Contact Closure Interface for optional wired remote control (see p.2 bottom) USB In 1 USB In 2 Output... - Page 7 CONNECTING AND OPERATING THE 2x1 DVI DL SWITCHER How to Connect the DL Switcher to your devices Connect the supplied cables from your fi rst computer into the DVI In 1, USB In 1, and Audio In 1 connection in the back of the DVI Switcher.
-
Page 8: Operation Notes
2x1 DVI DL OPERATION NOTES Operation Notes When turning on or rebooting your computers, the DVI DL Switcher must be select- ed to the computer that is booting until the computer completes the boot cycle. This step can be eliminated using the Gefen DVI Detective, which stores the displays EDID. -
Page 9: Rmt2-Ir Installation
Remove battery cover from the back of the RMT2-IR remote. Verify that dip switches 1 & 2 are in the down (OFF) position. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. Test the RMT2-IR remote by pressing ONLY one button at a time. -
Page 10: Ir Code Conflicts
Dip Switches 1 and 2 in the RMT 2-IR correspond with Dip Switches 1 and 2 on the bottom (underneath a piece of metallic tape) of the 2X1 DVI DL Switcher respectively. Flip the switches on the outside of the 2x1 DVI DL Switcher to match the same Remote Channel as the RMT 2-IR. -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 2x 165 MHz Input Video Signal ... 1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Dual Link Maximum Resolution / Max. Range ... 3840 x 2400 DVI Input/Output Connector Type ... DVI-I 29 pin female (digital only) USB 2.0 Input Connection ... -
Page 12: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 14 Rev A2 20600 Nordhoff Street, Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
