Summary of Contents for Gefen EXT-DVIKVM-241
- Page 1 ® 2x1 DVI KVM Swithcer EXT-DVIKVM-241 User Manual...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. 2x1 DVI KVM Switcher is a trademark of Gefen, LLC © 2012 Gefen, LLC. All rights reserved.
-
Page 3: Table Of Contents
CONTENTS Introduction Features Connect and Operating the 2X1 DVI KVM Switcher Panel Descriptions Specifi cations Warranty... -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the Gefen 2x1 DVI KVM Switcher. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Features
FEATURES Features • Switches easily between any two DVI computers with USB 2.0 and audio • Maintains highest resolution single link video • Saves time and increase your productivity • Use either PC or Mac USB 2.0 keyboard/mouse • Independent EQ adjustments that compensate •... -
Page 6: Connect And Operating The 2X1 Dvi Kvm Switcher
This step can be eliminated using the Gefen DVI Detective. If you lose your picture when switching from source 1 to source 2 or vice-versa you will require a DVI Detective. -
Page 7: Panel Descriptions

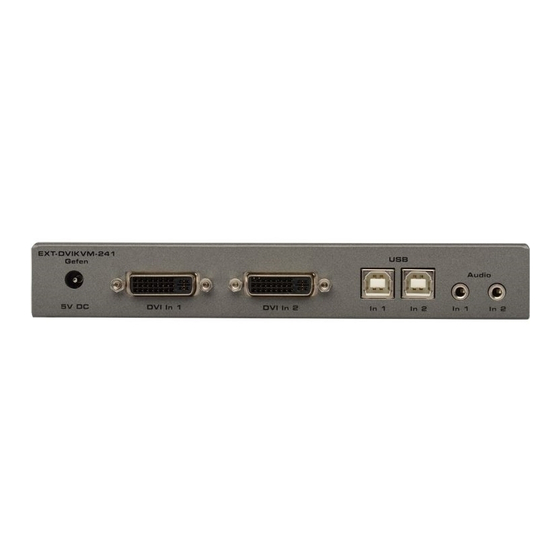

PANEL DESCRIPTIONS Front Speaker jack Power RMT-2 wired remote jack Source Selector Computer Source DVI Display Button Selection LED Output Indicators Connector USB Key- board/Mouse Jacks Back Audio Inputs USB Inputs +5V DC power DVI Inputs... -
Page 8: Specifi Cations
SPECIFICATIONS Maximum Pixel Clock................165 MHz Video Input Connectors......(2) DVI-I 29 pin, female (digital only) Video Output Connector......(1) DVI-I 29 pin, female (digital only) Audio Input Connectors........... (2) 3.5 mm mini-stereo jack Audio Output Connector..........(1) 3.5 mm mini-stereo jack USB Host Connectors........... -
Page 9: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 10 Rev A5 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
