Summary of Contents for Huka Copilot 3

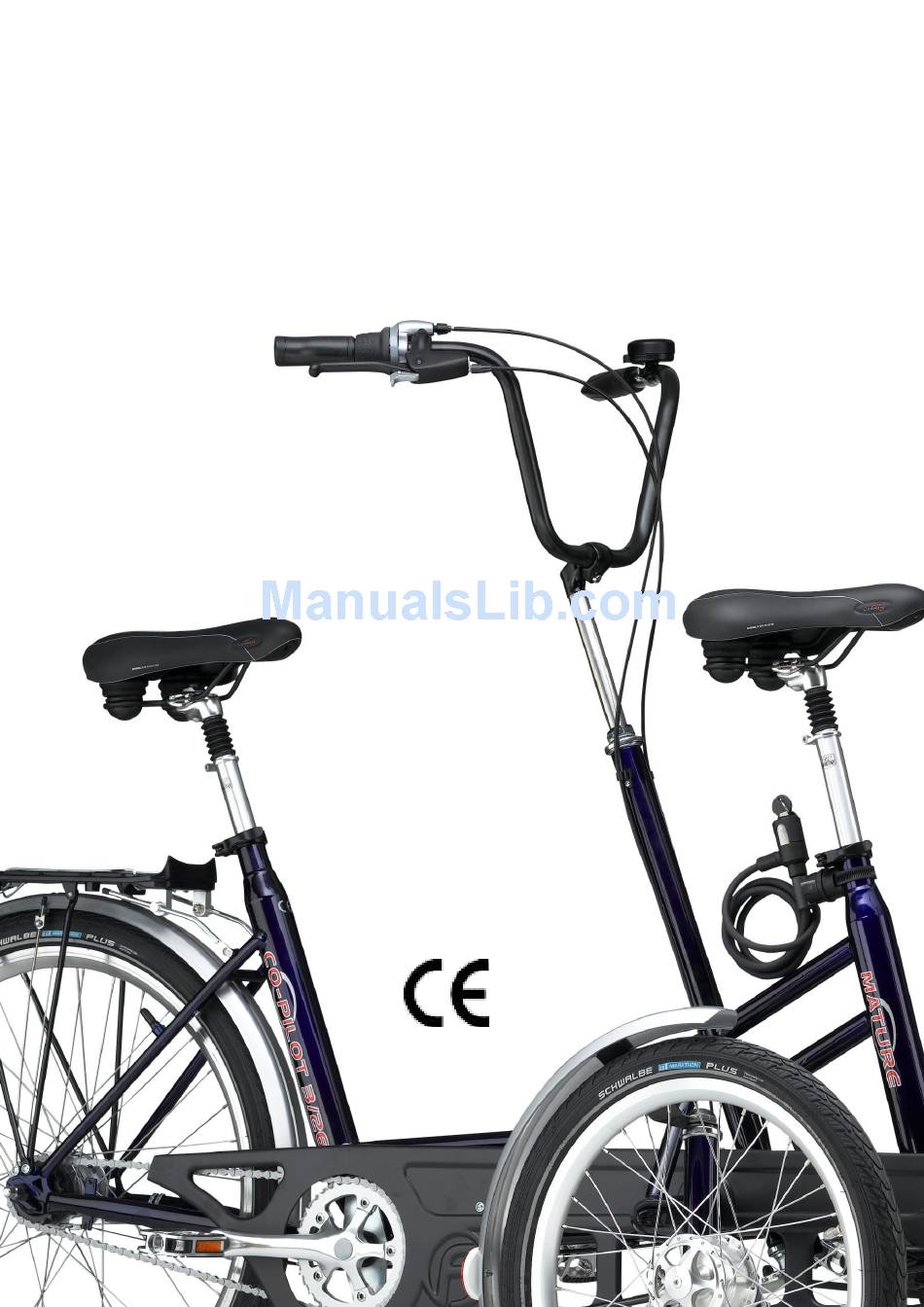

- Page 1 User manual Copilot 3 2012-1...
- Page 3 Introduction Pg. 1 Product description Pg. 2 - 6 Commissioning Pg. 7 - 10 Usage Pg. 11- 13 Maintenance Pg. 14 - 15...
-
Page 5: Table Of Contents
3.6.2 Spokes 3.6.3 Hubs 3.7 The drive 3.7.1 Crankshafts, crank and pedal 3.7.2 The chain 4. Usage 4.1 Riding the Copilot 3 4.2 Users environment 4.3 Familiar user errors 4.4 Brakes 4.4.1 Parking brake 4.5 The lighting 4.6 Safety lock 4.7 Lifting... - Page 7 Your supplier will carry out this guarantee. The guarantee does not apply to damage or faults of the tandem caused by wrong or improper use. The evaluation of it is the privilege of Huka or a representative to be appointed by Huka.
-
Page 8: Introduction
When supplying your new Huka tandem, in principle all described components are adjusted well and / or are turned to you wishes. But no matter how modern, even a Huka tandem is not completely free of maintenance. There are some things that require attention from time to time. -
Page 9: Product Description
The Huka-tandem is a cycle for handicapped children and adults. The range of sizes of the Huka-tandems includes a great overlapping area of successive sizes (see figure 1). In this way it is easier to choose a cycle with the right size for the user, which... -
Page 10: Safety And Driving Behaviour
1. The "captain" must be at least 16 years old. 2. The COPILOT 3 has to be checked for roadworthy condition before use. Particularly, check the front handle bar for stiffness. 3. The road traffic act and all traffic laws are to be obeyed on all journeys on public roads. -
Page 11: The Drive
2.4 Drive 2.4.1 Tandem Standard Parallel cranks, "copilot" has to pedal 2.4.2 Freewheel system in the front "Copilot" can freewheel (like regular bike) 2.4.3 Idle motion in the front, shiftable "Captain" determines via a shifter whether the "copilot" pedals or not. Warning: Do not switch under load! 2.4.4 'e-bike' (power assisted) Motor 24 V hub motor, 250 W... -
Page 12: Requirements Of Operation
• Every operation not described in this manual is forbidden. • COPILOT 3 may not be ridden from the front seat alone. From the rear seat it may be operated by one person. In this case be aware of different driving conditions due to less weight! •... -
Page 13: Accessories
2.8 Accessories A series of accessories can be supplied for the range of the Huka-tandems. The possibilities are listed in the overview. Almost all accessories can be provided for each type of tandem. Ask your dealer if the respective accessory can also be supplied for your type of tandem. -
Page 14: Commissioning
3. COMMISSIONING 3.1 Saddle height The optimum saddle height depends on the body size and the eventually existing handicap. Adjust a height, where you can reach the ground with your toes while sitting on the saddle. Please note the eventually existing mark on the seat post, which should be inserted at least 7 cm in the frame tube ! 3.1.2 The position of the saddle The saddle is mounted on the seat post. -
Page 15: The Position Of The Handle Bar
3.5 The position of the handle bar Adjustment in height and tilt angle is by means of Allen screws (size 5) on the handlebar assemblies (6a and 6b). Handlebar grips should be readily accessible for both the "copilot" and the "captain", Make sure that your knees –... -
Page 16: Spokes
Then your Huka-dealer adjusts the spokes tot the correct tension. In case it happens that a spoke breaks or is sitting loose then your Huka- dealer will of course put this right. 3.6.3 Hubs The hubs of the wheels should be adjusted accurately. -
Page 17: The Chain
When the chain pressure is correct your tandem pedals lightly and you will not hear the chain. When your tandem is delivered the chain will be well adjusted by your Huka-dealer. Your tandem is provided with a gear and two chains. -
Page 18: Usage
The mechanical parking brake is used by turning the lever on the handlebar. 4.2 User environment The Huka tandems are suitable for use on roads with firm underground. The tandem can be used into all weather, but avoid when possible contact with salt water because of the influence of the metal parts. -
Page 19: Brakes
4.4 Brakes 4.4.1 Parking brake All tandems are equipped with a parking brake. This brake takes care that the tandem stays firmly at its position when mounting or dismounting the tandem. The operation of the parking brake takes place by means of a lever that is present on the handlebar axle, closely underneath the handlebars themselves. -
Page 20: Safety
Every user must act in such a way that no other person can be jeopardized, damaged or hindered. 3. Please wear a helmet every time using the copilot 3. 4. Caution on journeys on wet, slanting, uneven and slippery road surfaces or on tram rails. -
Page 21: Maintenance
5. MAINTENANCE 5.1 Cleaning The metal parts, the plastic parts and the soft parts, like saddle, can be best cleaned with a soft, moisten cloth. Here you can use soap. Use never aggressive or scratching cleaning agents. The different mechanisms should regularly controlled on impurities such as grain of sand etc. -
Page 22: Repair
5.4 Repair 5.4.1 Authorized dealers for repair The dealer, which sold or delivered you the tandem, is authorized by Huka BV to execute necessary repairs. If you desire another dealer, you can contact us: Huka BV Tel: +31 (0)541 572 472... - Page 24 Your dealer: Huka BV P.O. Box 194, 7570 AD Oldenzaal Tel.: +31 (0)541 572 472 . e-mail: sales@huka.nl www.huka.nl...
