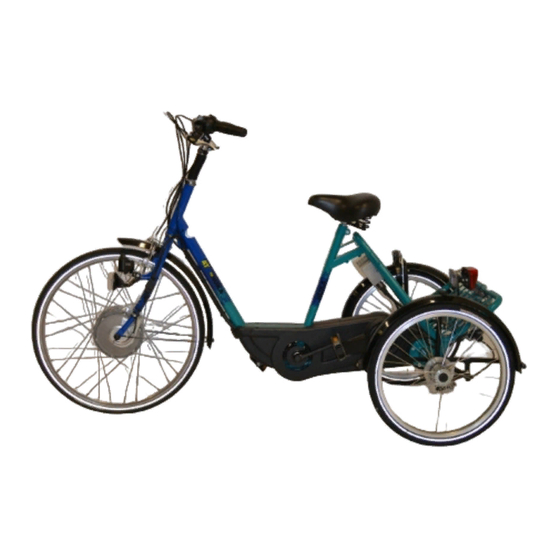

Huka ATD User Manual
  1. Manuals
  2. Brands
  3. Huka Manuals
  4. Bicycle
  5. ATD
  6. User manual

Huka ATD User Manual

At series
Hide thumbs
Table of Contents

Advertisement

Quick Links

U
s
e
r
m
a
n
u
a
l
U
s
e
r
m
a
n
u
a
l
A
T
s
e
r
i
e
s
A
T
s
e
r
i
e
s
V2012-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATD and is the answer not in the manual?

Questions and answers

Related Manuals for Huka ATD

Summary of Contents for Huka ATD

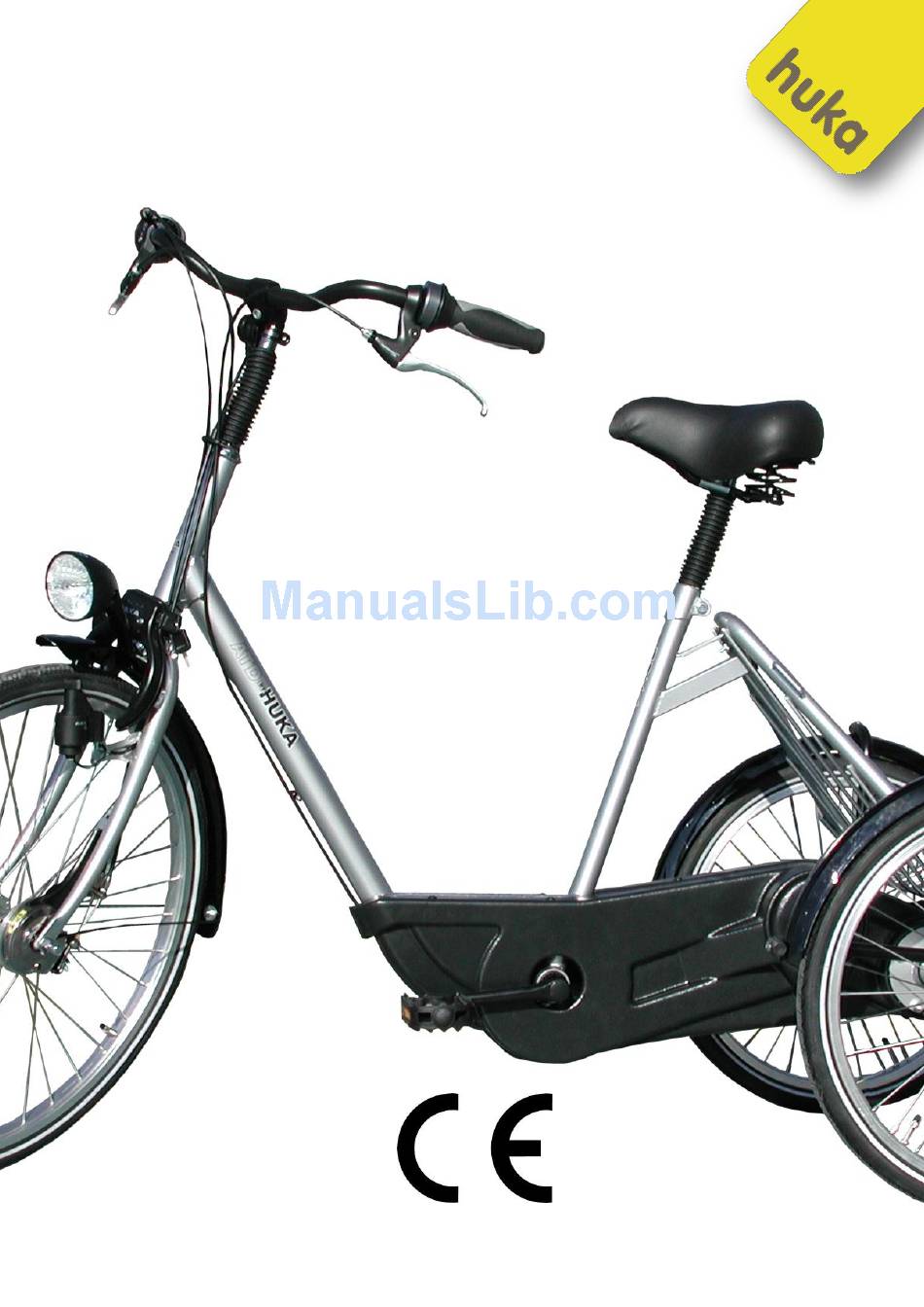

  • Page 1 V2012-1...
  • Page 3 Introduction Pg. 1 Product description Pg. 2 - 3 Commissioning Pg. 4 - 8 Usage Pg. 9 - 11 Maintenance Pg. 12 - 13 Technical description Pg. 14 - 15...

  • Page 4: Table Of Contents

    Contents 1. Introduction 2. Product description 2.1 Purpose of use 2.2 Safety and driving behaviour 2.3 Prevention of theft 2.4 The drive 2.5 Accessories 3. Commissioning 3.1 The height of the saddle 3.2 The position of the handlebars 3.3 The wheels 3.3.1 Pressure and valve 3.3.2 Spokes 3.3.3 Hubs...
  • Page 6 The warranty does not apply to damage or faults of the tricycle caused by wrong or improper use. The evaluation of it is the privilege of Huka or a representative to be appointed by Huka. N.B. This warranty does not apply to components susceptible to wear.

  • Page 7: Introduction

    When supplying your new Huka tricycle, in principle all described components are adjusted well and / or are turned to you wishes. But no matter how modern, even a Huka tricycle is not completely free of maintenance. There are some things that require attention from time to time.

  • Page 8: Product Description

    2. PRODUCT DESCRIPTION 2.1 Purpose of use The Huka-tricycle is a cycle for handicapped children and adults. The range of sizes of the Huka-AT tricycles includes a great overlapping area of successive sizes (see figure 1). In this way it is easier to choose a cycle with the right size for the user, which can be used for a maximum length of time in the case of growing children.

  • Page 9: Prevention Of Theft

    (see figure 2). 2.5 Accessories A series of accessories can be supplied for the range of the Huka-tricycles. The possibilities are listed in the overview. Almost all accessories can be provided for each type of tricycle.

  • Page 10: Commissioning

    3. COMMISSIONING The HUKA-tricycles are designed in such a flexible manner that the user can choose between various positions of the body on the bike because of the adjustment possibilities of the handlebars and saddle, which varies from a sporty to a comfortable posture.

  • Page 11: The Position Of The Handlebars

    But make sure that the pin stays in the frame over a distance of at least 6 cm. Thus the safety marking should not be visible. Figure 4: Adjusting the saddle forwards and backwards and tilting: 1) Unscrew both bolts of the saddle strap with an open-end or a ring spanner in order that you can move the saddle.

  • Page 12: The Wheels

    (see figure 6). Although Huka take great care in mounting the handles it is possible that they can loosen in time because of the influence of sunlight, temperature variations or ageing. Therefore check regularly that they are still tight by trying to turn the handles.

  • Page 13: Spokes

    Because new spokes always have to stabilise to some extent, the wheels of your tricycle have to be checked after a couple of weeks. Then your Huka-dealer adjusts the spokes tot the correct tension. In case it happens that a spoke breaks or is sitting loose then your Huka- dealer will of course put this right.

  • Page 14: The Chain

    If you have chosen a tricycle with gear there will be an additional hub between the pedals and the drive axle. This is a standard gear hub from Sram, which is adapted for use on the Huka- tricycle. Your Huka-dealer has checked the gear on delivery and has adjusted it correctly. There...

  • Page 15: Usage

    4.2 User environment The Huka tricycles are suitable for use on roads with firm underground. The tricycle can be used into all weather, but avoid when possible contact with salt water because of the influence of the metal parts.

  • Page 16: Brakes

    4.4 Brakes 4.4.1 Rollerbrakes Your Huka-tricycle is equipped with a reliable brake system, which functions well if the brakes have been adjusted in the correct manner. As is standard, your tricycle is equipped with rollerbrakes. Rollerbrakes do not require much maintenance. The brake cable should be re- tensioned if the brake handles almost touch the handlebars.

  • Page 17: The Lighting

    4.5 The lighting Your tricycle is provided with a safe and reliable lighting. Always check that all lights are working when you have the lighting on. It is highly dangerous when you ride in the dark, in the twilight or in the mist without lights.

  • Page 18: Maintenance

    It is sufficient enough to dry the tricycle, after it became wet. There are no necessary special protecting measures. 5.3 Repair 5.3.1 Authorized dealers for repair The dealer, which sold or delivered you the tricycle, is authorized by Huka BV to execute necessary repairs. If you desire another dealer, you can contact us: Huka BV...

  • Page 19: Spare Parts

    5.3.2 Spare parts Each spare part of the Huka tricycles is separately available by your authorized dealer. Huka BV can supply these parts on request of your dealer. 5.3.3 Self-execution of repairs It is not allowed to execute repairs yourself. By doing so your warranty claim and the warranty at the product will expire.
  • Page 24 Your supplier: Huka BV P.O. Box 194, 7570 AD Oldenzaal Tel.: +31 (0)541 572 472 . e-mail: sales@huka.nl www.huka.nl...
