Summary of Contents for Huka Tandem Copilot 3

  • Page 1 MANUAL Tandem Tandem Copilot 3 Copilot 3 Huka makes your world easier www.huka.nl/en version 04/21...
  • Page 2 Your notes Extend your standard WARRANTLY to 10 YEARS VIA WWW.HUKA.NL/ en/warranty...
  • Page 3: Best Maintenance Copilot

    We would like to hear about your experiences and where you like to cycle. Would you like to share it with us on Facebook? We love to hear from you! We wish you lots of cycling fun! Kind Regards, Milan Leussink Maker of the Copilot 3 www.huka.nl/en...
  • Page 4: Table Of Contents

    Contents General Indication & application Warranty EU Declaratian of conformity First bike ride on the Copilot 3 Safe on the road Boarding & cycling Brakes Cycling with pedal assistance Battery indication Moving and carrying the tandem Product description Bicycle frame Drive unit Wheels and tyres Spokes...
  • Page 5 Wheels Typre pressure Best maintenance Copilot 3 Cleaning Tyre pressure & tread Bonding Spokes Brakes Chain Lighting Charging the battery Replacing components Specifications Copilot 3/24 Copilot 3/26 Other Contact details Huka Changes Removal of product Selling the Copilot 3 www.huka.nl/en...
  • Page 6: General

    (audio) visual impairment. Warranty Huka applies a standard 5 year guarantee to the frame and the fork of your Copilot 3. Besides that you have a 2 year guarantee on the battery and other parts. All warranties will be executed by your Huka dealer.
  • Page 7 • The warranty and product liability in general may expire if instructions in this manual have not been followed, if maintenance activities, technical alterations or additions to the bicycle have been carried out with non-original Huka parts without Huka's permission. Also, the CE-marking will become void. The absence of a CE-declaration can lead to problems with the insurance of the bicycle and with possible damage or liability.
  • Page 8: Eu Declaratian Of Conformity

    And equipped with the CE mark that can be identified by the: labels on the tricycle's main frame and illustrated in the Warranty section of this manual. Signed on behalf of Huka, R. Lotgerink, Managing Director Date: 15 April 2021...
  • Page 9 www.huka.nl/en...
  • Page 10: First Bike Ride On The Copilot 3

    The time has come. Your first experience on your own Copilot 3! Whatever bike ride you do, your safety comes first! If it is your first time cycling on a Huka tandem, you might have to get used to it. The most important tip we can give you is that you have to relax as much as possible while cycling.
  • Page 11: Boarding & Cycling

    Cycling into corners takes some getting used to. In order to maintain stability, lean your body slightly towards the inside of the bend. Be careful when making short turns. Adjust your speed. Avoid sudden and violent steering movements. In this way, you can avoid accidents and damage. www.huka.nl/en...
  • Page 12: Brakes

    ADVICE FROM MILAN When changing gears, make sure you stop pedalling and select the desired gear. Do not continue pedalling when changing gears. This can damage the gear-shifting mechanism. Damage to the gear hub as a result of abuse is not covered by the warranty. Brakes Depending on the chosen braking system, we give some instructions on the different braking possibilities.
  • Page 13 The motor will then drive up to 6 km/h Heinzmann control buttons without you having to cycle. When you release the arrow button, the propel will stop immediately. Bafang control buttons www.huka.nl/en...
  • Page 14: Battery Indication

    With a Bafang system this works differently. You activate the start help by pressing the - button until the bicycle symbol appears. Then keep the - button pressed while the bicycle symbol is shown. The start help will now be activated. As soon as you release the button, the drive aide will stop immediately with driving.
  • Page 15: Moving And Carrying The Tandem

    We recommend that you lift the tandem with at least two people. Also hold the handlebars while lifting to prevent the front wheel and handlebars from turning and possibly causing injury. www.huka.nl/en...

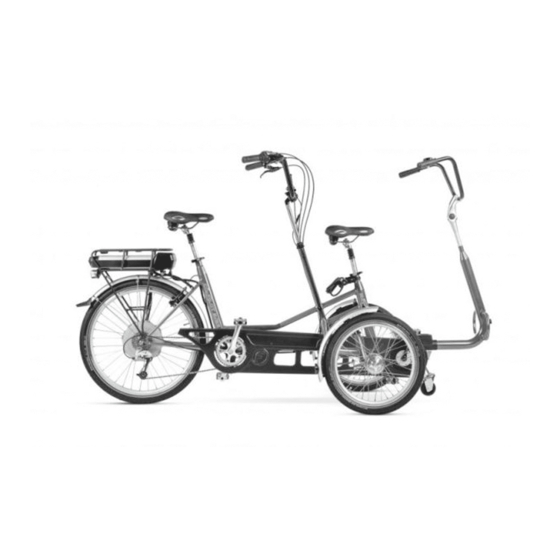

  • Page 16: Product Description

    Product description Your Copilot 3 consists of several parts. The most important parts are described in this chapter. Bicycle frame The frame of the Copilot 3 consists of a tubular metal construction complemented by aluminium and stainless steel components. Most of the metal parts are phosphated and then provided with an impact-resistant powder coating.
  • Page 17: Spokes

    Copilot 3 need to be checked after 200 kilometres or 2 months. Your Huka dealer can take care of that. Should a spoke break or come loose, consult your Huka dealer as well.
  • Page 18: Gears

    Nexus. If your Copilot is equipped with electric pedal assistance, a derailleur type gear is used. The tandem can also be delivered in combination with a back-pedal brake. Upon delivery your Huka dealer has checked and adjusted the gears. The explanation of the gear hub can be found in the Shimano manual.
  • Page 19: Handlebars

    The carrier is made of steel. There are several possibilities to carry the luggage. Ask your Huka dealer about this, so that the right materials can be used and the whole thing can be assembled safely. For a Copilot 3 with electrical assistance, the battery-pack is mounted under this carrier.
  • Page 20: Electric Pedal Support

    Always ensure that the lights and reflectors are clearly visible. The luggage must also be properly secured. Luggage that is not properly secured can be dangerous in participating traffic. Straps or belts should be properly secured to prevent them from getting into the wheel. Electric pedal assistance The Copilot 3 can be fitted with electric pedal assistance.
  • Page 21: Securing Compontents

    Your Copilot 3 can be expanded with various accessories. Think of a trunk support, footrest etc. More about these options can be found on the price list on our website www.huka.nl or contact your Huka dealer. Securing components It is important that crucial components of the tandem are tightened correctly.
  • Page 22: Optimal Use

    Optimal use When you deliver your new Huka, the parts have been adjusted to your body and to your wishes. To make sure you sit comfortably, there are adjustment possibilities for the saddle and handlebars. Adjusting the saddle height 1. Pull back the quick release lever.
  • Page 23: Adjusting The Handlebar Height

    3. Tighten the stem bolt again securely according to the specified torque on page 19. When adjusting the height, make sure that the handlebar stem retains enough of its position in the frame so that the safety marking ''MIN'' is not visible. www.huka.nl/en...
  • Page 24: Adjusting The Handlebar Angle (Main Driver)

    Adjusting steering angle (main driver) 1. Use a size 6 Allen key to loosen the angle adjustment bolt slightly so that the handlebars can turn. 2. Now turn the handlebar to the desired angle. 3. Tighten the angle adjustment bolt again securely according to the specified torque on page 19.
  • Page 25: Typre Pressure

    ADVICE FROM MILAN Before you start cycling, check that the wheels run smoothly and do not creak when you ride. Squeaking noises often indicate a loose spoke or a defective bearing. Contact your Huka dealer if this is the case. Tyre pressure Always inflate the tyres properly.
  • Page 26: Cleaning

    Optimal riding comfort is created by properly maintaining the tandem. In this chapter we show you how you can do this best. We also advise you to have your annual maintenance done by your Huka dealer. They will check the Copilot 3 for functionality, safety and possible wear and tear.
  • Page 27: Bonding

    Bonding Have you discovered that one of your Copilot 3 tyres has a flat tyre? Your Huka dealer can of course fix it. But if you want to do it yourself, here are the instructions: You will need: a repair kit (with tyre levers, glue, stickers and sandpaper), a jack, scissors, a bicycle pump and a bucket of water.
  • Page 28: Spokes

    The spoke The spoke check is easy to perform by strumming your finger along the spokes like a guitar. A spoke with a different tone will probably be loose. Your Huka dealer can do the repair for you. Chain The chain should be cleaned and lubricated every quarter.
  • Page 29: Charging The Battery

    3 and 6 hours. Always use the original battery charger supplied. ADVICE FROM MILAN Low ambient temperatures have an adverse effect on the charging of the battery. At temperatures below 10 degrees, it is best to take the battery inside and charge it at room temperature. www.huka.nl/en...
  • Page 30: Replacing Components

    Replacement compontents Is your Copilot 3 broken or do components need to be replaced? We advise you to have this done by your Huka dealer. This is one of the ways to prevent the factory warranty from expiring. The following sizes must be used to replace the inner tube and/or outer tube: Copilot 3/24 •...
  • Page 31 www.huka.nl/en...
  • Page 32: Specifications

    Specifications Copilot 3/24 Standard version Front Rear 2040 2080 Material frame anti-corrosion treated steel Total length in mm (H) 1700 Length to coupling point in mm (J) Coating outside quality epoxy powder coating white (RAL9016) or pearl grey (RAL9023) Width total in mm Color Weight in kg (total) double-butted, alu rim with stainless steel spokes...
  • Page 33 Rear brakes coaster brake 8-speed hub with coaster brake, Shimano Speed hub Pedal drive simultaneous pedaling, other options possible Key lock cable lock Front construction removable by quick coupling see price list for different options Options www.huka.nl/en...
  • Page 34: Contact Details Huka

    The Netherlands +31 541-572472 info@huka.nl www.huka.nl/en For questions about the maintenance of your Copilot 3 we refer you to your Huka dealer. Changes Huka uses the philosophy of continuous product development and improvement. That is why the product delivered may deviate from the illustrations shown. Huka BV reserves the right to make changes to the product as described in this manual.
  • Page 35: Selling The Copilot 3

    Do you want to buy a used Huka bicycle? Then we advise you to have it checked by your Huka dealer. They can check for wear and tear and/or hidden defects.
  • Page 36 Our bikes can be used by anyone. Unlimited. If you like it and it offers you the functionality you are looking for, then a Huka fits you. Our team works together with visible pleasure on (new) solutions. That is what we go for every day.
