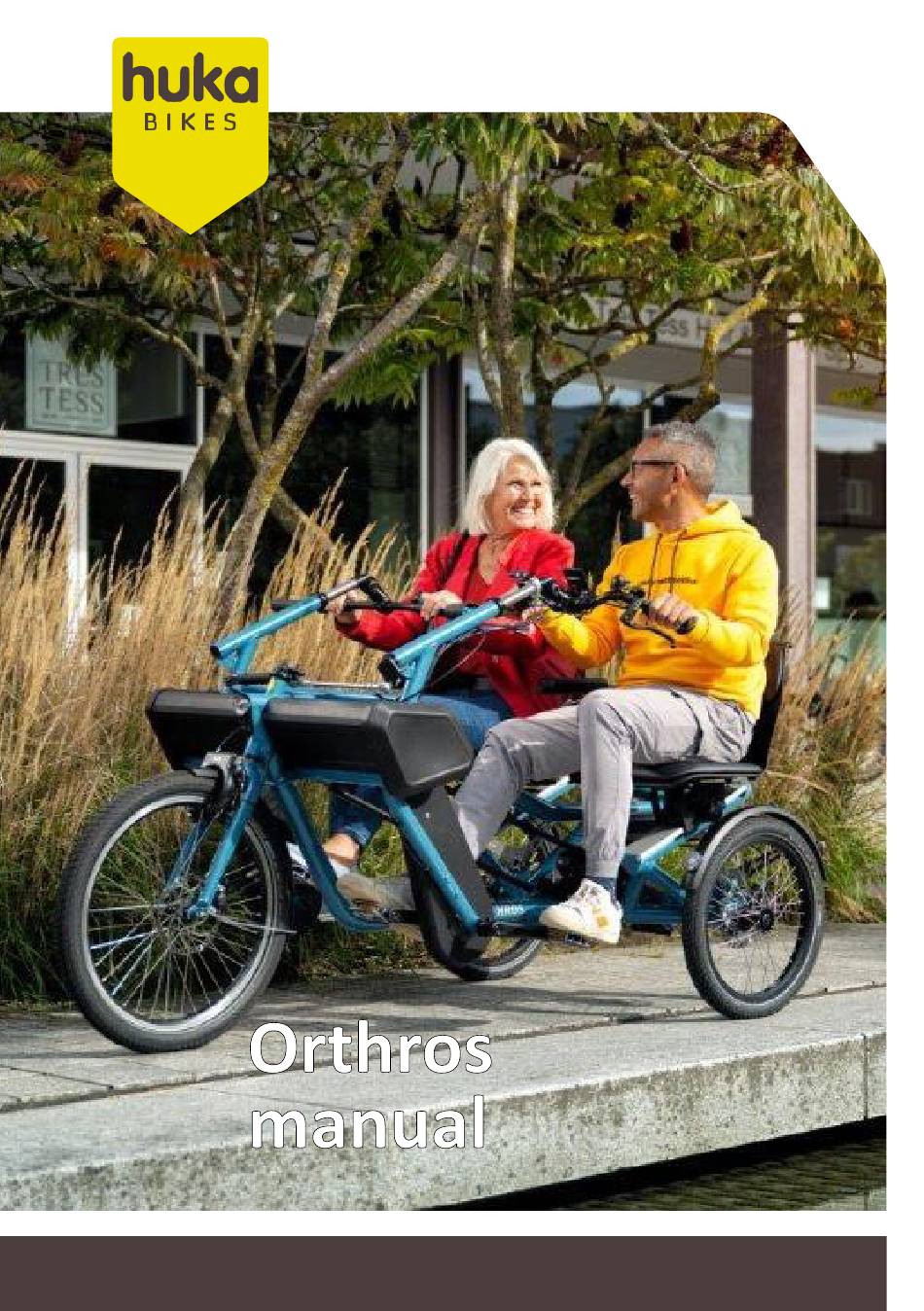

- Page 1 Orthros Huka makes your world easier www.huka.nl...
-
Page 2: Your Notes
Your notes EXTEND YOUR STANDARD WARRANTY TO 10 YEARS WWW.HUKA.NL/WARRANTY... - Page 3 Congratulations on your new Orthros Do you want carefree cycling? With the Orthros, we want to make your world easier. You'd probably rather go cycling than read the manual. Therefore, we have put together a manual containing the most important and necessary information on how to use the Orthros safely.
-
Page 4: Table Of Contents
General..................... 7 Indication & application ................. 7 Warranty ......................8 EU declaration of conformity ............... 10 First bike ride on the Orthros ..............11 Safely on the road ..................11 Boarding and cycling ..................13 Brakes ......................14 Parking brake ....................14 Product description ................. - Page 5 Seat depth adjustment ................25 Adjusting handlebar height ................. 26 Adjust steering angle ................... 27 Handlebar stem with quick-release device ..........27 Maintenance Orthros ................28 Cleaning ....................... 28 Tire pressure and tread ................28 Fixing a flat tire .................... 29 Wheels ......................
- Page 6 Changes ......................37 Sale of the Orthros ..................38 Product disposal ..................39 Recycling the battery ................... 39...
-
Page 7: General
General INDICATION & APPLICATION The Orthros is a duo bike where the driver and co-driver sit side by side. In this position, the driver has a good overview of the road and also good contact with the co-driver. The bike is specially designed for people who want to go out and cannot cycle independently. -
Page 8: Warranty
WARRANTY Huka gives a 5-year warranty on the frame of the Orthros. You also have a 2- year warranty on the battery and other parts. All warranties are carried out by your Huka dealer. The guarantee does not apply to damage or defects to the Orthros caused by injudicious or improper use. - Page 9 TIP FROM KEVIN Write down the frame and key number of your Orthros below. The number is important for guarantees, repairs or in case your pillion bike is stolen for reporting to your insurance. You can find the number on the frame tube under the right seat.
-
Page 10: Eu Declaration Of Conformity
Risk class: Class 1 Huka applies the following procedures for the CE marking of their products according to Regulation MDR 2017/745: Class 1: according to (EU) 2017/745 Annex VIII. This declaration of conformity is provided under the exclusive responsibility of Huka. We hereby declare that medical device(s) specified above comply with the provision of Regulation (EU) MDR 2017/745 for medical devices. -
Page 11: First Bike Ride On The Orthros
SAFELY ON THE ROAD Besides your agility on the Orthros, which gets better and better as you use it, it is important that the bike is in optimal condition when you hit the road. Keep the following points in mind: •... - Page 12 The passenger must wear a seat belt if available. • Wear an appropriate bicycle helmet. • Orthros is largely made of steel, which is considered non- combustible. The other materials used such as plastic, rubber and the like are not fireproof. •...
-
Page 13: Boarding And Cycling
BOARDING AND CYCLING Always use the parking brake when mounting and dismounting. The parking brake prevents the bike from rolling away and can lead to dangerous situations. • When you get on as a rider, you just sit on the seat and put your feet on the pedals. -
Page 14: Brakes
BRAKES The Orthros comes with hydraulic disc brakes on the front and rear wheels. We will give some instructions on the different braking options. • Left hand brake: To brake with the front wheel, squeeze the left brake lever. •... - Page 15 Optionally, an additional parking brake lever is possible mounted on the handlebar stem. Activated Deactivated You can activate this parking brake by pulling the lever all the way backward. This puts the brake on the front wheel so your bike is safely parked. KEVIN'S TIP Always use the handbrake when mounting and dismounting.
-
Page 16: Product Description
Product description The Orthros consists of several parts. We describe the most important parts in this section. BICYCLE FRAME The frame of the Orthros consists of a tubular metal construction supplemented by aluminum and stainless steel parts. Most metal parts are phosphated and then given an impact-resistant powder coating. -
Page 17: Spokes
Proper tension of the spokes ensures a stable bike. Because new spoke wheels run in, your Orthros' spokes should be checked and tightened after 200 kilometers or 2 months. Your Huka dealer can take care of this. Should a spoke break or become loose, please consult your Huka dealer immediately. -
Page 18: Brakes
Orthros pedals lightly and you hardly hear the chain. If you notice that a chain is too slack, have it adjusted by your Huka dealer. BRAKES The Orthros is equipped with hydraulic disc brakes on the front wheel and on both rear wheels. -
Page 19: Gears
HANDLEBAR The Orthros' handlebars are made of steel or aluminum. This depends on the handlebar model. The handlebars can be adjusted in height and angle. With some models of handlebars, you can also adjust the angle and depth of the handlebars. -
Page 20: Mudguards
LUGGAGE CARRIER An optional basket on the back of the bike is available to carry luggage. Ask your Huka dealer so that the right materials are used and the basket is fitted safely. Distribute the luggage on the carrier as well as possible. The maximum load is 20 kg. -
Page 21: Electric Pedal Assistance
ELECTRIC PEDAL ASSISTANCE The Orthros is equipped with electric pedal assistance. The Orthros has a motor in the rear frame and a battery under the seat. On the handlebar is a display with controls. Display Motor in rear frame Battery... -
Page 22: Display
DISPLAY The Orthros is equipped with a display that shows the status of the battery. The display also shows the speed, ride distance (Trip) and total distance (ODO). By briefly pressing the power button, you can scroll through the menu. With the plus and minus button you can select the assistance level. -
Page 23: Accessories
ACCESSORIES The Orthros can be expanded with various accessories. Think armrest, foot fixation, mirrors, shopping basket and footplate. enquire about the accessories at the Huka dealer who supplied the Orthros. Freewheel activated Basket at rear Footrest folding... -
Page 24: Assembling Parts
It is important that all parts on the bike are tight. Different parts should be tightened with a torque. Use a torque spanner for this. The table below shows values for correct tightening torques. If in doubt, consult your Huka dealer for advice. -
Page 25: Optimal Use
Optimal use Upon delivery of your new Huka, the components are properly adjusted to your body and tailored to your needs. To make sure you sit comfortably, there are adjustment options to flexibly adjust the seating system and handlebars. SEAT DEPTH ADJUSTMENT To adjust the seat depth, the following actions apply: 1. -
Page 26: Adjusting Handlebar Height
Saddles and handlebars should be securely fastened. A loose saddle or handlebar increases the risk of dangerous situations in traffic. Good posture also depends on the right handlebar height that can be adjusted. • The handles should generally be at rider waist level. •... -
Page 27: Adjust Steering Angle
ADJUST STEERING ANGLE 1. Use a size 6 Allen spanner to loosen the bolt at the front of the stem three turns. 2. Slide the handlebar to the desired angle. Make sure the handlebar stays center in the clamp of the stem. 3. -
Page 28: Maintenance Orthros
Check tire pressure and tread regularly for optimum grip on the road. This prevents unnecessary tire wear. Moreover, it makes cycling more pleasant and has a positive influence on braking and steering movements. The Orthros has tires with a bicycle valve. The right tire pressure is between 3 and 5 bar. -
Page 29: Fixing A Flat Tire
FIXING A FLAT TIRE Got a flat tire on the Orthros? Your Huka dealer can fix the tire, of course. But should you want to do it yourself, here are the instructions. Needed: a repair kit (with tire levers, glue, stickers and sandpaper, stand or jack, scissors, bicycle pump and a bucket of water). -
Page 30: Wheels
TIP FROM KEVIN A malfunction contact your Huka dealer immediately. Do not use the bike until the fault is fixed This will shoot down slightly, after which the handlebar stem will be loose. WHEELS The wheels ensure light running and high riding comfort. Properly inflated tires and tightly tensioned spokes are important for optimal cycling comfort. -
Page 31: Brakes
The brake can easily be adjusted slightly tighter with the adjustment bolt on the inside of the brake lever. Are the brakes not adjustable or does the Orthros still not brake properly? Then have it checked and adjusted by your Huka dealer. - Page 32 Tips for safe charging: • Only use the original charger • Hang a smoke detector in the room where you charge your battery. Something can always go wrong unexpectedly when charging. • Preferably charge your battery during the day so you can take quick action when needed.
-
Page 33: Replacement Of Parts
REPLACEMENT OF PARTS Is your Orthros broken or do you need parts replaced? We advise you to have this done by your Huka dealer. This is one way to avoid voiding the manufacturer's warranty. To replace the inner tube and/or tire, use the... -
Page 34: Lighting
LIGHTING The Orthros has e-bike-powered, low-power lighting. You can turn the lights on and off by pressing and holding the + button on the display for three seconds. The lights are powered by the electrical system battery and do not need to be replaced. -
Page 35: Specifications
Specifications Standard version Frame material Steel Coating Epoxy coating outdoor quality Aluminum rim, hub and stainless Wheels steel spokes Lighting LED headlights and rear lights Bell Sporty and modern bell Mudguards Impact-resistant plastics Chain case Impact-resistant plastic housing Send Aluminium Tribe Steel Seats... - Page 36 Standard version Length excl. basket(W) 2050 mm Height (e) 1300 mm Width incl. armrests 1200 mm Rear wheel width 1000 mm Weight 78 kg Length of crank (A) 170 mm Inseam 600-900 mm Saddle-floor height (C) 570-680 mm Backrest height (D) 890-1000 mm Handlebar setting (F) 150 mm...
-
Page 37: Other Information
7575 ED Oldenzaal +31 (0)541-572472 info@huka.nl www.huka.nl For questions about servicing your Orthros, we refer you to your Huka dealer. CHANGES Huka has a philosophy of continuous product development and improvement. As a result, the product supplied may differ from the images shown. -
Page 38: Sale Of The Orthros
SALE OF THE ORTHROS If you want to sell your Orthros to another user, it is important to hand over all the necessary technical documentation so that the new owner can use the bike safely. Have the bike inspected by your Huka dealer before sale to make sure the Orthros is sold in good condition. -
Page 39: Product Disposal
Are you no longer using the Orthros? Then contact your Huka dealer. They can guide you in a possible sale or trade-in. If you want to dispose of your Orthros, you can also contact your local waste disposal company. They will dispose of the bike according to the rules and laws that apply in your hometown. - Page 40 To best meet the needs of individual riders, we believe good service is essential! Huka is known for its good service and far-reaching commitment. Do you own a Huka bicycle and would like to have periodic maintenance done? Our dealers are happy to carry out all maintenance...
