Huka orthros User Manual

Hide thumbs Also See for orthros:
Table of Contents

Advertisement

Quick Links

Download this manual
U
s
e
r
m
a
n
u
a
l
U
s
e
r
m
a
n
u
a
l
O
r
t
h
r
o
s
O
r
t
h
r
o
s
1
V 2014-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the orthros and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huka orthros

Summary of Contents for Huka orthros

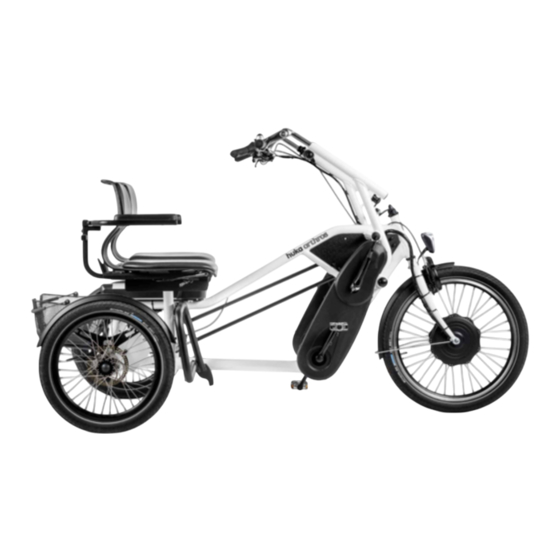

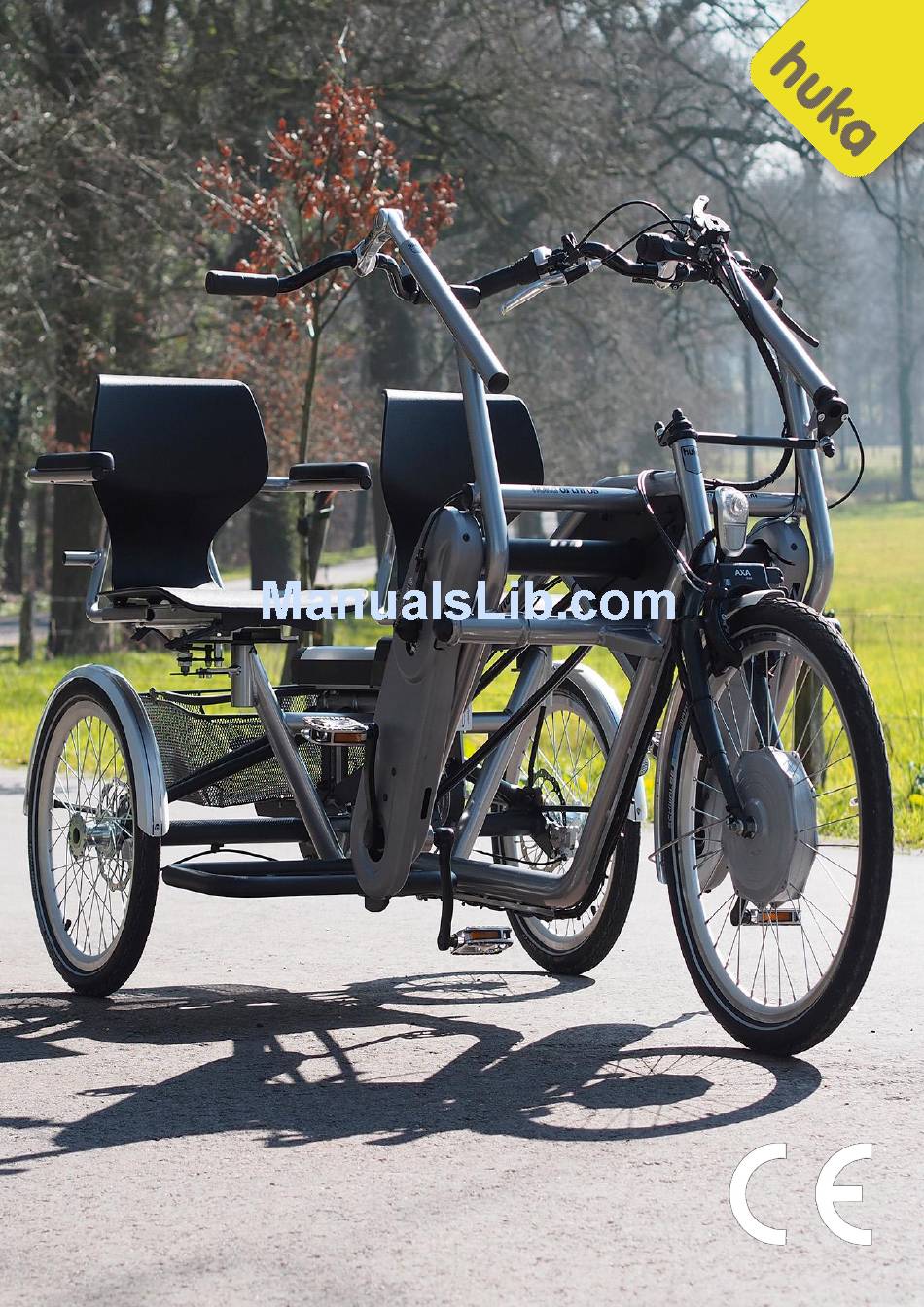

  • Page 1 V 2014-1...

  • Page 2: Table Of Contents

    Inhoudsopgave 1. MANUFACTURERS DETAILS ........................ 4 2. INTRODUCTION ........................... 5 3. DECLARATION OF CONFORMITY ......................6 4. WARRANTY ............................7 5. INTENDED USE ............................ 8 6. SAFETY ..............................9 7. PRODUCT DESCRIPTION ........................10 7.1 The frame ............................ 10 7.2 Mudguards ..........................10 7.3 Drive mechanism .........................
  • Page 3 9.8 Setting the electric motor assistance..................25 9.9 Cycling with motor using kick-start (optional) ................26 9.10 Moving and lifting the Orthros ....................28 10. MAINTENANCE ..........................29 10.1 User maintenance ........................29 10.2 Tightening various parts ......................34 10.3 Parts replacement ........................

  • Page 4: Manufacturers Details

    Huka BV is a Dutch company that manufactures physical aids for disabled persons. Please contact your supplier if you have any questions about our products and their use. Changes Huka BV reserves the right to alter the product described in this manual. This frees us from any liability whats however.

  • Page 5: Introduction

    Sometimes there will be things that demand your attention. This manual contains instructions on the kind of maintenance you can carry out yourself and information about what your Huka dealer can do. Being able to carry out some of the maintenance yourself only adds to your level of enjoyment! Pay special attention to bold texts written in italics and to wherever you see this symbol.

  • Page 6: Declaration Of Conformity

    1 of the guidelines for medical aids 93/42/EEG. The product carries the CE seal of approval in accordance with above mentioned guidelines. Date: 01-04-2014 Name: B. Kamp, Managing Director Huka B.V. Signature: Huka B.V. Munsterstraat 13, 7575 ED, Oldenzaal, The Netherlands...

  • Page 7: Warranty

    This warranty does not apply to any damage to or faults in the three-wheeler arising from improper or indiscriminate use. This will be assessed by Huka BV or by a third representative appointed by Huka. NB: This warranty does not extend to parts that are subject to general wear and tear, such as chain, brakes and tyres.

  • Page 8: Intended Use

    5. INTENDED USE General guidelines The Huka Orthros duo cycle has been specially designed for people with a physical and/or mental disability. Cyclists who have developed a fear of falling find the Orthros duo cycle to be an excellent alternative when they want to be able to continue cycling carefree and comfortably.

  • Page 9: Safety

     Always lock your bike when not in use.  The Orthros duo cycle is mainly made of steel which is regarded as non flammable. The other used materials, such as the plastic and rubber parts, are not flame retardant..

  • Page 10: Product Description

    7. PRODUCT DESCRIPTION 7.1 The frame The Orthros duo cycles are made of high-quality materials. The frame consists of a metal tube Construction with aluminum and steel parts. Most of the metals used are provided with an impact resistant coating.

  • Page 11: Wheels And Tyres

    7.6 Brakes (depending on model) The Orthros duo cycle comes equipped with a drum brake in the front wheel and two disk brakes on the rear wheels. The non-handicapped user can activate the brakes by hand levers. I fit is the case that an electromotor has been fitted, then a rim-brake will have been fitted in the front wheel.

  • Page 12: Parking Brake

    7.7 Parking brake The Orthros duo cycle is equipped with a parking brake. This brake ensures that the bike cannot roll away when you are mounting or dismounting. Therefore, you should ensure that you have activated this brake before getting on or off the bike.

  • Page 13: The Chain

    Huka dealer before your bike is delivered. If you find that a chain is too loose, then get your Huka dealer to fix this. Both the chains and the drive mechanisms are protected by a plastic chain guard.

  • Page 14: Handlebars (Depending On Type And Make)

    7.14 Lights (depending on country) The Orthros duo cycle comes with LED powered lights. The lights are very reliable and energy efficient. They use AA batteries, which are widely available and inexpensive. LEDs use a comparatively low amount of energy and are long lasting.

  • Page 15: Electric Motor (Optional)

    7.16 Electric motor (optional) The Orthros duo cycle can be fitted with an electric motor. This motor is attached to the front wheel. The battery pack and electronics are mounted on the main frame tube, with a users control and display on the steering of the main driver.

  • Page 16: Accessories

    The bike is provided with a 36V 11Ah Li-ion battery that is mounted on the main tube of the frame. 7.17 Accessories There are a number of accessories available for the Orthros. For example, armrests, a footrest, etc. (see our special brochures).

  • Page 17: Set-Up

    8. SET-UP 8.1 The seat depth Correct adjustment of the seat will make it almost comfortable as a good chair and enable you to cycle long distances with ease. There is a useful rule-of –thumb for adjusting the seat properly. Remove your shoes and sit on the bike with the pedal crank extended straight from you.

  • Page 18: Adjustment Of Handlebars

    8.2 Adjustment of handlebars Height of handlebars 1. Use a size 6 Allen key to loosen the handlebars bolt, so that you can move the handlebars. 2. Pull or push the handlebars to the desired height. 3. Tighten the handlebars bolt again. Make sure that enough length of the handlebar stem is still in the main frame.
  • Page 19 Make sure that you tighten the handlebar properly again. Loose-fitting handlebars may slip while you are cycling. This can be dangerous. Height of Multi-adjustable handlebars pipe 1. Use a size 6 Allen key to loosen the handlebars bolt, so that you can move the handlebar.
  • Page 20 Angle of handlebars pipe 1. Use a size 6 Allen key to loosen the handlebars angle bolt, so that you can move the handle bars. 2. Push or pull the handlebars to the desire angle. 3. Tighten the handlebars bolt again. Make sure that you tighten the handlebars properly again.
  • Page 21 Angle of handlebars 1. Use a size 6 Allen key to loosen the handlebars angle bolts, so that you can move the handle bars. 2. Push or pull the handlebars to the desire angle. 3. Tighten the handlebars bolts again. 1) Unlock the lever 2) Pull upwards 3) Adjust handlebars to the desired position...

  • Page 22: The Wheels

    8.3 The wheels The Wheel is the most important part of the bike with regard to troublefree cycling and comfort. A number of features are important, including well pumped tyres, tightly fixed spokes and supple, play-free movement. Before using your bike, check that the wheels are turning freely and not squeaking.

  • Page 23: Use

    9. USE 9.1 Using for the First time When using your Orthros duo cycle for the First time, find yourself a large, unoccupied area where you can try it out. Recommendations for safe cycling:  Use a safety helmet. ...

  • Page 24: Changing Gears (Optional)

    Certain materials can get excesive hot by exposure to direct sunlight A duo cycle has moving parts. Be aware of pinching . Be alert on interferance between electronic equipment and your bike when your electric motor system is on.. 9.5 Changing gears (optional). If your bike is fitted with gears, you can use them to adjust speed.

  • Page 25: Cycling With Motor (Optional)

    There are several options for braking. The brakes are activated by the main driver. The passenger has no brakes. Back-pedal brake The back-pedal brake is activated by pedaling backwards instead of forwards. This works on both rear wheels via the intermediate shaft. This brake is optional available. Handbrakes You can brake a duo cycle with handbrakes by squeezing both levers on the handlebars.

  • Page 26: Cycling With Motor Using Kick-Start (Optional)

    Arrow-buttons 9.9 Cycling with motor using kick-start (optional) The kick-start option is meant for easy start from standstill. By holding the “arrow-up button” the motor is activated and brings the cycle to a speed of 6 km/h. Releasing the button will stop the motor (when there is still no pedal movement). Bedieningstoetsen The motor assistance is activated or de-activated by pressing the “mode button”...
  • Page 27 Battery indicator You can find the battery indicator on the display. It indicates the current level of the battery. When all the blocks are black, the battery is fully charged. The blocks will show empty when there is less battery power left. Battery indicator It is also possible to use the indicator on the battery.

  • Page 28: Moving And Lifting The Orthros

    9.10 Moving and lifting the Orthros To move or lift the bike you can grab at the back of the black connecting rods and the front of the head tubes. We recommend to lift the bike with at least three people and also to hold the front wheel and steering to prevent it from turning and causing injuries.

  • Page 29: Maintenance

    10. MAINTENANCE 10.1 User maintenance In order to be able to enjoy your Orthros for a long period of time, it is important that maintenance be carried out regularly. First maintenance check After the first 200 kilometres, o rafter using the bike for two months, you should have it checked by your Huka dealer.
  • Page 30 1 mm deep then the tyres need replacing. Replacing tyres requires a certain amount of skill. Let your Huka dealer do this for you. Replace the tyres with the same model and/or brand. This will ensure good grip.
  • Page 31 Gears The gears are a delicate and complex mechanical system. Contact your Huka dealer if you have any trouble with the gears. He will have the required know-how and equipment to adjust them for you. Brakes The brakes are extremely important and need to be tested regularly. Check them at least once a week.
  • Page 32 Changing the headlamp batteries There is a nut underneath the headlamp. This nu can be loosened with a coin or screwdriver so that the face of the headlamp can be lifted up. Loosen the nut raise and lift off the face <...
  • Page 33 Changing rear light batteries The face of the rear light is attached with a clip on the bottom. Press this clip downward carefully and pull off the face. Open the screw in the front turn the lamp forwards Replace the batteries put the lamp back on the hooks and fasten the screw Incorrectly installed batteries can result in damage to the...

  • Page 34: Tightening Various Parts

    Charging the batteries (for bikes with motors) Before going out on your bike, check to make sure your battery is sufficiently charged for your trip. If not, make sure you charge it. To charge the battery, connect it to the battery pack.

  • Page 35: Parts Replacement

    Inner- and outer tube rear wheels: 47-406 10.4 Huka dealer maintenance You should have your Orthros duo bike checked by an authorised Huka dealer at least once a year. They will check the working, safety, and wear and tear of your duo bike.

  • Page 36: Disposing Of The Product

    11. DISPOSING OF THE PRODUCT If you no longer wish to use the duo bike or wish to dispose of it, contact your Huka dealer. To scrap the bike you can contact your local waste disposal service. They will dispose of the three-wheeler in accordance with local rules and regulations.

  • Page 37: Selling The Duo Bike

    12. SELLING THE DUO BIKE If you wish to sell your Orthros duo bike to someone else, it is important that you hand over all technical documents as well so that the new owner can use the bike safely. Have the bike checked by an authorized dealer before you sell it so that you can be sure that the Orthros duo bike is in good condition.

  • Page 38: Technical Specifications

    Wheel size front (Inch) 24 x 1.75 Wheel size rear (ETRTO) 47 - 406 Wheelsize rear (Inch) 20 x 1.75 Huka BV T. +31 (0) 541 - 572 472 postbus 194 F. +31 (0) 541 - 520 415 7570 AD Oldenzaal sales@huka.nl Nederland www.huka.nl...
  • Page 40 Your local supplier: Huka BV Munsterstraat 13 7575 ED Oldenzaal The Netherlands tel: +31 (0)541 572 472 fax. +31 (0)541 520 415 mail: info@huka.nl www.huka.nl...
