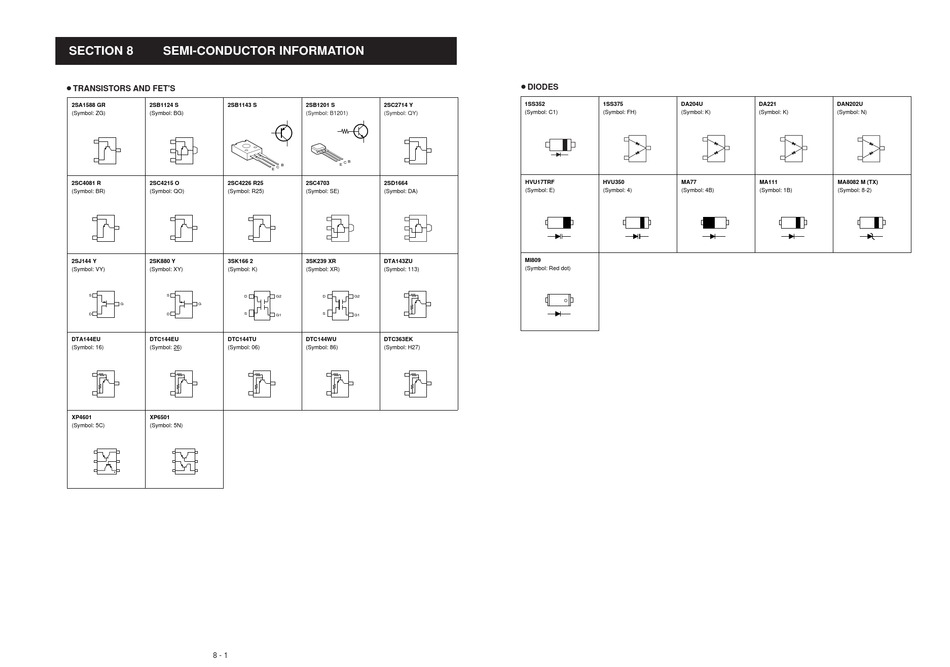

SECTION 8

SEMI-CONDUCTOR INFORMATION

¡TRANSISTORS AND FET'S
2SA1588 GR 2SB1124 S 2SB1143 S
(Symbol: ZG) (Symbol: BG) (Symbol: BG)
2SC4081 R 2SC4215 O 2SC4226 R25
(Symbol: BR) (Symbol: QO) (Symbol: R25)
2SJ144 Y
2SK880 Y 3SK166 2
(Symbol: VY) (Symbol: XY) (Symbol: K)
S S
G G
D D
DTA144EU DTC144EU DTC144TU
(Symbol: 16) (Symbol: 26) (Symbol: 06)
XP4601 XP6501
(Symbol: 5C) (Symbol: 5N)
8 - 1
2SB1201 S 2SC2714 Y
(Symbol: B1201) (Symbol: QY)
B
E C
B
E C
2SC4703 2SD1664
(Symbol: SE) (Symbol: DA)
3SK239 XR DTA143ZU
(Symbol: XR) (Symbol: 113)
D G2 D G2
S S
G1 G1
DTC144WU DTC363EK
(Symbol: 86) (Symbol: H27)
¡DIODES
1SS352 1SS375 DA204U
(Symbol: C1) (Symbol: FH) (Symbol: K)
HVU17TRF HVU350 MA77
(Symbol: E) (Symbol: 4) (Symbol: 4B)
MI809
(Symbol: Red dot)
DA221 DAN202U
(Symbol: K) (Symbol: N)
MA111 MA8082 M (TX)
(Symbol: 1B) (Symbol: 8-2)
