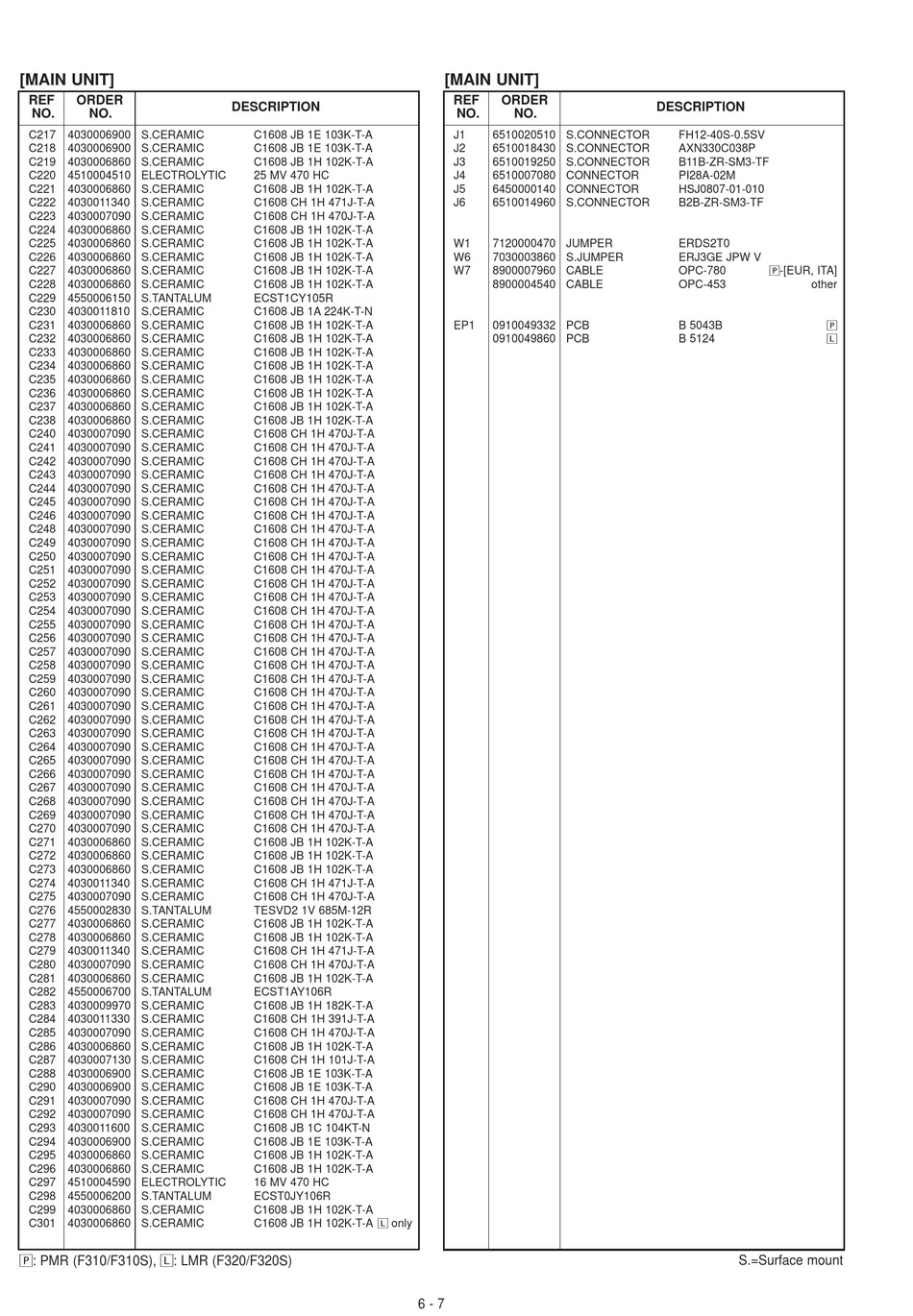

Icom IC-F310 Service Manual page 24

[MAIN UNIT]
REF ORDER
NO. NO.
C217 4030006900 S.CERAMIC
C218 4030006900 S.CERAMIC
C219 4030006860 S.CERAMIC
C220 4510004510 ELECTROLYTIC
C221 4030006860 S.CERAMIC
C222 4030011340 S.CERAMIC
C223 4030007090 S.CERAMIC
C224 4030006860 S.CERAMIC
C225 4030006860 S.CERAMIC
C226 4030006860 S.CERAMIC
C227 4030006860 S.CERAMIC
C228 4030006860 S.CERAMIC
C229 4550006150 S.TANTALUM
C230 4030011810 S.CERAMIC
C231 4030006860 S.CERAMIC
C232 4030006860 S.CERAMIC
C233 4030006860 S.CERAMIC
C234 4030006860 S.CERAMIC
C235 4030006860 S.CERAMIC
C236 4030006860 S.CERAMIC
C237 4030006860 S.CERAMIC
C238 4030006860 S.CERAMIC
C240 4030007090 S.CERAMIC
C241 4030007090 S.CERAMIC
C242 4030007090 S.CERAMIC
C243 4030007090 S.CERAMIC
C244 4030007090 S.CERAMIC
C245 4030007090 S.CERAMIC
C246 4030007090 S.CERAMIC
C248 4030007090 S.CERAMIC
C249 4030007090 S.CERAMIC
C250 4030007090 S.CERAMIC
C251 4030007090 S.CERAMIC
C252 4030007090 S.CERAMIC
C253 4030007090 S.CERAMIC
C254 4030007090 S.CERAMIC
C255 4030007090 S.CERAMIC
C256 4030007090 S.CERAMIC
C257 4030007090 S.CERAMIC
C258 4030007090 S.CERAMIC
C259 4030007090 S.CERAMIC
C260 4030007090 S.CERAMIC
C261 4030007090 S.CERAMIC
C262 4030007090 S.CERAMIC
C263 4030007090 S.CERAMIC
C264 4030007090 S.CERAMIC
C265 4030007090 S.CERAMIC
C266 4030007090 S.CERAMIC
C267 4030007090 S.CERAMIC
C268 4030007090 S.CERAMIC
C269 4030007090 S.CERAMIC
C270 4030007090 S.CERAMIC
C271 4030006860 S.CERAMIC
C272 4030006860 S.CERAMIC
C273 4030006860 S.CERAMIC
C274 4030011340 S.CERAMIC
C275 4030007090 S.CERAMIC
C276 4550002830 S.TANTALUM
C277 4030006860 S.CERAMIC
C278 4030006860 S.CERAMIC
C279 4030011340 S.CERAMIC
C280 4030007090 S.CERAMIC
C281 4030006860 S.CERAMIC
C282 4550006700 S.TANTALUM
C283 4030009970 S.CERAMIC
C284 4030011330 S.CERAMIC
C285 4030007090 S.CERAMIC
C286 4030006860 S.CERAMIC
C287 4030007130 S.CERAMIC
C288 4030006900 S.CERAMIC
C290 4030006900 S.CERAMIC
C291 4030007090 S.CERAMIC
C292 4030007090 S.CERAMIC
C293 4030011600 S.CERAMIC
C294 4030006900 S.CERAMIC
C295 4030006860 S.CERAMIC
C296 4030006860 S.CERAMIC
C297 4510004590 ELECTROLYTIC
C298 4550006200 S.TANTALUM
C299 4030006860 S.CERAMIC
C301 4030006860 S.CERAMIC
∏: PMR (F310/F310S), Ò: LMR (F320/F320S)
DESCRIPTION
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1H 102K-T-A
25 MV 470 HC
C1608 JB 1H 102K-T-A
C1608 CH 1H 471J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
ECST1CY105R
C1608 JB 1A 224K-T-N
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 471J-T-A
C1608 CH 1H 470J-T-A
TESVD2 1V 685M-12R
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 471J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
ECST1AY106R
C1608 JB 1H 182K-T-A
C1608 CH 1H 391J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 101J-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1C 104KT-N
C1608 JB 1E 103K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
16 MV 470 HC
ECST0JY106R
C1608 JB 1H 102K-T-A
Ò
C1608 JB 1H 102K-T-A only
[MAIN UNIT]
REF ORDER
NO. NO.
J1 6510020510 S.CONNECTOR
J2 6510018430 S.CONNECTOR
J3 6510019250 S.CONNECTOR
J4 6510007080 CONNECTOR
J5 6450000140 CONNECTOR
J6 6510014960 S.CONNECTOR
W1 7120000470 JUMPER
W6 7030003860 S.JUMPER
W7 8900007960 CABLE
8900004540 CABLE
EP1 0910049332 PCB
0910049860 PCB
6 - 7
DESCRIPTION
FH12-40S-0.5SV
AXN330C038P
B11B-ZR-SM3-TF
PI28A-02M
HSJ0807-01-010
B2B-ZR-SM3-TF
ERDS2T0
ERJ3GE JPW V
OPC-780 ∏ -[EUR, ITA]
OPC-453 other
B 5043B ∏
Ò
B 5124
S.=Surface mount
