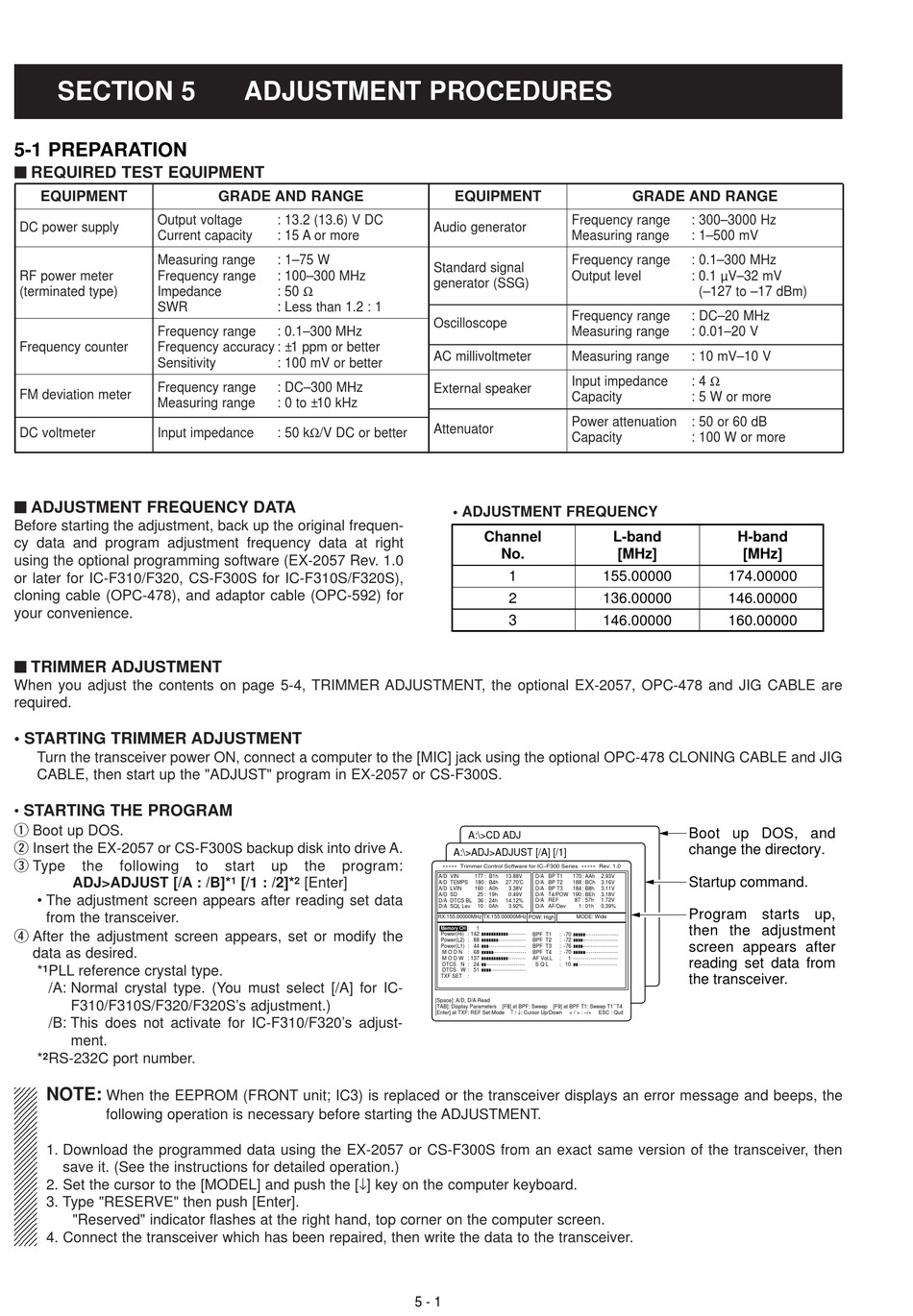

SECTION 5

5-1 PREPARATION

' ' REQUIRED TEST EQUIPMENT

EQUIPMENT
Output voltage
DC power supply
Current capacity
Measuring range
RF power meter Frequency range
(terminated type) Impedance
SWR
Frequency range
Frequency counter Frequency accuracy : ±1 ppm or better
Sensitivity
Frequency range
FM deviation meter
Measuring range
DC voltmeter Input impedance

' ' ADJUSTMENT FREQUENCY DATA

Before starting the adjustment, back up the original frequen-
cy data and program adjustment frequency data at right
using the optional programming software (EX-2057 Rev. 1.0
or later for IC-F310/F320, CS-F300S for IC-F310S/F320S),
cloning cable (OPC-478), and adaptor cable (OPC-592) for
your convenience.
' ' TRIMMER ADJUSTMENT
When you adjust the contents on page 5-4, TRIMMER ADJUSTMENT, the optional EX-2057, OPC-478 and JIG CABLE are
required.
• STARTING TRIMMER ADJUSTMENT
Turn the transceiver power ON, connect a computer to the [MIC] jack using the optional OPC-478 CLONING CABLE and JIG
CABLE, then start up the "ADJUST" program in EX-2057 or CS-F300S.

STARTING THE PROGRAM

•
q Boot up DOS.
w Insert the EX-2057 or CS-F300S backup disk into drive A.
e Type
the following
ADJ>ADJUST [/A : /B]*
• The adjustment screen appears after reading set data
from the transceiver.
r After the adjustment screen appears, set or modify the
data as desired.
* 1 PLL reference crystal type.
/A: Normal crystal type. (You must select [/A] for IC-
F310/F310S/F320/F320S's adjustment.)
/B: This does not activate for IC-F310/F320's adjust-
ment.
* 2 RS-232C port number.
NOTE:
When the EEPROM (FRONT unit; IC3) is replaced or the transceiver displays an error message and beeps, the
following operation is necessary before starting the ADJUSTMENT.
1. Download the programmed data using the EX-2057 or CS-F300S from an exact same version of the transceiver, then
save it. (See the instructions for detailed operation.)
2. Set the cursor to the [MODEL] and push the [
3. Type "RESERVE" then push [Enter].
"Reserved" indicator flashes at the right hand, top corner on the computer screen.
4. Connect the transceiver which has been repaired, then write the data to the transceiver.

ADJUSTMENT PROCEDURES

GRADE AND RANGE
: 13.2 (13.6) V DC
: 15 A or more
: 1–75 W
: 100–300 MHz
: 50 Ω
: Less than 1.2 : 1
: 0.1–300 MHz
: 100 mV or better
: DC–300 MHz
: 0 to ±10 kHz
: 50 kΩ/V DC or better
to start up the program:
1 [/1 : /2]* 2 [Enter]
↓
] key on the computer keyboard.
EQUIPMENT
Frequency range
Audio generator
Measuring range
Frequency range
Standard signal
Output level
generator (SSG)
Frequency range
Oscilloscope
Measuring range
AC millivoltmeter Measuring range
Input impedance
External speaker
Capacity
Power attenuation
Attenuator
Capacity
• ADJUSTMENT FREQUENCY
Channel
No.
1
2
3
A:\>CD ADJ
A:\>ADJ>ADJUST [/A] [/1]
∗∗∗∗∗ Trimmer Control Software for IC–F300 Series ∗∗∗∗∗ Rev. 1.0
A/D VIN 177 : B1h 13.88V D/A BP T1 170 : AAh
A/D TEMPS 180 : B4h 27.70'C D/A BP T2 188 : BCh
A/D LVIN 160 : A0h 3.38V D/A BP T3 184 : B8h
A/D SD 25 : 19h 0.49V D/A T4/POW 190 : BEh
D/A DTCS BL 36 : 24h 14.12% D/A REF 87 : 57h
D/A SQL Lev 10 : 0Ah 3.92% D/A AF/Dev 1 : 01h
RX:155.00000MHz TX:155.00000MHz POW: High MODE: Wide
Memory CH : 1
Power(Hi) : 142 BPF T1 : -70
' ' ' ' ' ' ' ' ' ' ' – – – – – – – – – ' ' ' ' ' – – – – – – – – – – – – – – – – –
Power(L2) : 88 BPF T2 : -72
' ' ' ' ' ' ' – – – – – – – – – – – – – – ' ' ' ' – – – – – – – – – – – – – – – – – –
Power(L1) : 44
' ' ' – – – – – – – – – – – – – – – – – – – BPF T3 : -76
' ' ' ' – – – – – – – – – – – – – – – – – –
M O D N : 68 BPF T4 : -70
' ' ' ' '– – – – – – – – – – – – – – – – – ' ' ' ' '– – – – – – – – – – – – – – – – –
M O D W : 137 AF Vol.L : 1
' ' ' ' ' ' ' ' ' ' ' – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
DTCS N : 24 S Q L : 10
' ' – – – – – – – – – – – – – – – – – – – – ' ' – – – – – – – – – – – – – – – – – – – –
DTCS W : 51
' ' ' '– – – – – – – – – – – – – – – – – –
TXF SET :
[Space]: A/D, D/A Read
[F9] at BPF T1: Sweep T1 ~ T4
[TAB]: Display Parameters [F8] at BPF: Sweep
↑ / ↓: Cursor Up/Down
[Enter] at TXF: REF Set Mode < / > : –/+
5 - 1
GRADE AND RANGE
: 300–3000 Hz
: 1–500 mV
: 0.1–300 MHz
: 0.1 µV–32 mV
(–127 to –17 dBm)
: DC–20 MHz
: 0.01–20 V
: 10 mV–10 V
: 4 Ω
: 5 W or more
: 50 or 60 dB
: 100 W or more
L-band H-band
[MHz] [MHz]
155.00000 174.00000
136.00000 146.00000
146.00000 160.00000
Boot up DOS, and
change the directory.
2.93V
Startup command.
3.16V
3.11V
3.18V
1.72V
0.39%
Program starts up,
then the adjustment
screen appears after
reading set data from
the transceiver.
ESC : Quit
