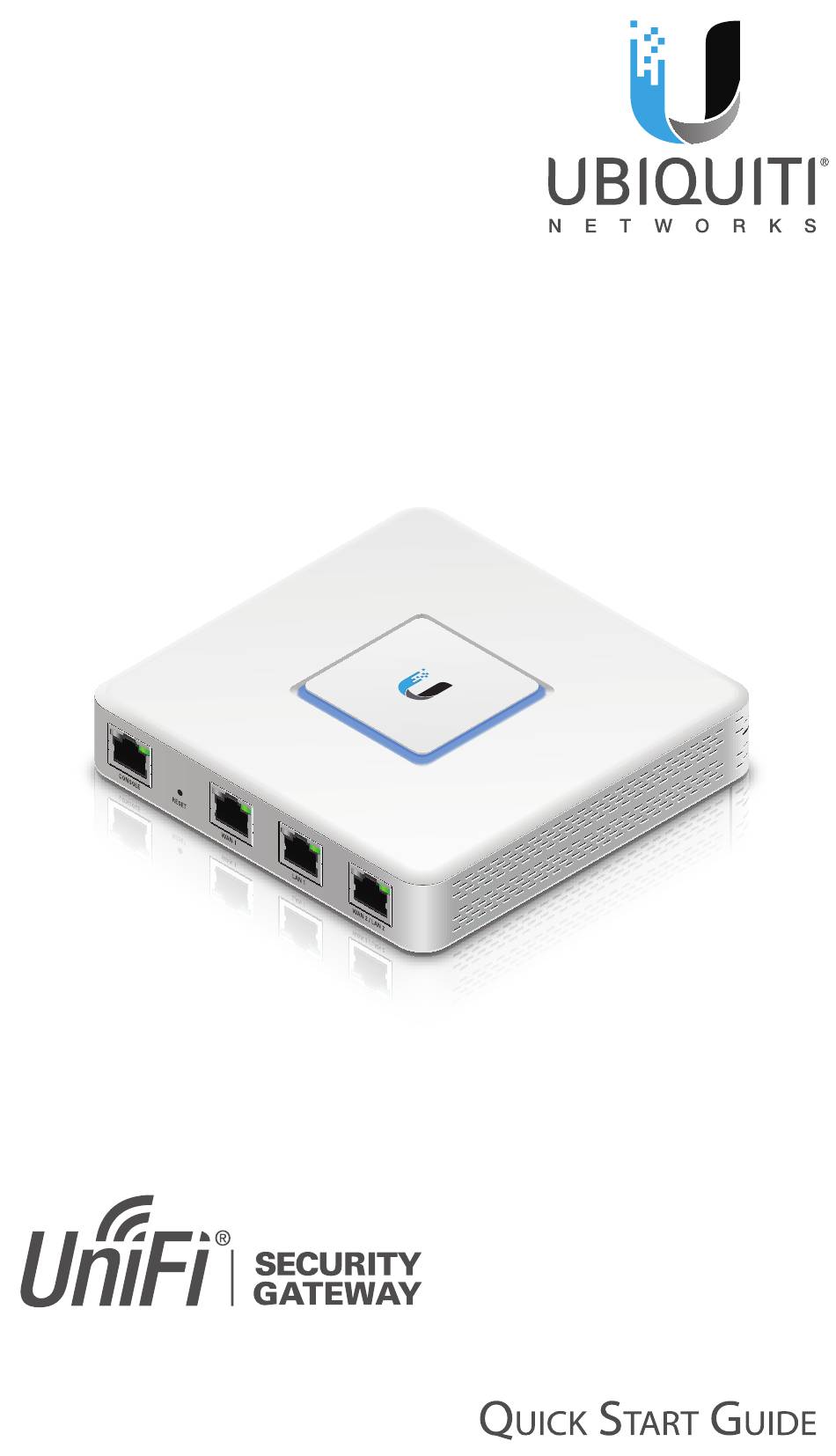

- Page 1 Enterprise Gateway Router with Gigabit Ethernet Model: USG...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® Security Gateway. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents UniFi Security Gateway Power Adapter Power Cord (12V, 1A) Enterprise Gateway Router... -
Page 3: Network Requirements
0.6 Mbps msec 0.4 Mbps 0.2 Mbps msec Mbps msec 24 HRS 12 HRS DEVICES CLIENTS DEEP PACKET INSPECTION Ubiquiti Streaming Media 6.49 GB NestLabs Network Protocols 3.44 GB Google 13.2 GB Web / Web 2.0 921 MB Desktop/Laptop Security Update... -

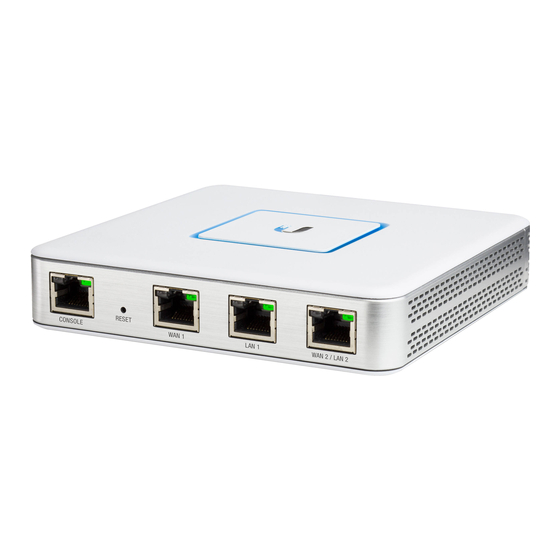

Page 4: Hardware Overview
Hardware Overview Ports Panel Interface Description RJ45 serial console port for CLI management. Use a RJ45-to-DB9 serial console cable to connect the Console port to your computer. Then configure using the following settings: Console • Baud rate 115200 • Data bits 8 •... - Page 5 LEDs Status Power Speed/Link/Act State Status White Fully Booted; Not Adopted Blue Adopted and Provisioned Alternating Device Firmware is Status White/Blue Upgrading Blue Device Locator Activated Flashing from UniFi Controller Power Off Power Green Power On No Link Link Established at Amber 10/100 Mbps Speed/...
-
Page 6: Hardware Installation
Hardware Installation The UniFi Security Gateway can be used on a level, stable surface, or mounted to a wall with the included screws and anchors. If you are not going to mount the UniFi Security Gateway on a wall, then skip to the section, Connecting Power. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. - Page 7 2. Use a Phillips screwdriver to secure a Screw into each anchor. Leave a clearance of approximately 3 mm between the screw head and the wall. 3 mm 3. Position the UniFi Security Gateway over the Screws, and insert the Screws into the wall-mount slots located on the bottom of the UniFi Security Gateway.
-
Page 8: Connecting Power
Connecting Power 1. Connect the Power Adapter to the power port. 2. Connect the Power Cord to the Power Adapter. Connect the other end of the Power Cord to a grounded power source. -
Page 9: Network Connections
Network Connections 1. Connect an Ethernet cable from a broadband modem or WAN to the WAN 1 port. 2. Connect an Ethernet cable from a network switch to the LAN 1 port. Note: LAN 1 is set to DHCP Server by default. -
Page 10: Software Installation
If you already have UniFi Controller v5.4 or higher installed, go to the section, Adopting the UniFi Security Gateway. 1. The Ubiquiti UniFi Controller window will appear. Click Launch a Browser to Manage the Network. 2. Select your country and time zone. Alternatively, you can click restore from a previous backup to use a file that contains your backup settings. - Page 11 3. The UniFi Controller will discover the UniFi Security Gateway with the default IP Address,192.168.1.1. Select the device, and click Next. 4. Create an SSID (wireless network name) and Security Key. Click Next. If you do not have any UniFi APs on the network, click Skip.
- Page 12 5. Create an Admin Name and Password for super admin access to the UniFi Controller. Confirm the Password, and click Next. 6. Review the UniFi Controller settings. Click Finish to complete the UniFi Setup Wizard.
- Page 13 7. The login screen for the UniFi Controller will appear. Enter the Admin Name and Password that you created in the UniFi Setup Wizard. Click Login. The UniFi Controller dashboard window will appear. Adopting the UniFi Security Gateway 1. From the UniFi Controller dashboard, click Devices in the left menu bar.
- Page 14 2. In the Devices window, locate UniFi Gateway in the list of devices under the Model column. To adopt and provision the gateway, click Adopt. 3. The Status Indicator on the UniFi Security Gateway will turn blue to confirm that it is successfully adopted.
- Page 15 Optional WAN Port Configuration via Layer 3 By default, the WAN port is set to DHCP so it can be assigned network settings by the service provider. To change the setting, connect a computer directly (or through a switch) to the LAN 1 port of the UniFi Security Gateway.
-
Page 16: Specifications
Specifications UniFi Security Gateway Dimensions 135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11") Weight 366 g (12.9 oz) Networking Interfaces Serial Console Port (1) RJ45 Serial Port Data Ports (3) 10/100/1000 Ethernet Ports Max. Power Consumption Power Supply 12VDC, 1A Power Adapter (Included) Supported Voltage Range 9 to 24VDC... -
Page 17: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 18: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 19: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. -
Page 20: Australia And New Zealand
STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale of the Products. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 21 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
-
Page 22: Declaration Of Conformity
2014/35/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: www.ubnt.com/compliance Čeština [Czech] UBIQUITI NETWORKS tímto prohlašuje, že toto USG zařízení, je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnic 2014/30/EU, 2014/35/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: www.ubnt.com/compliance... - Page 23 English Hereby, UBIQUITI NETWORKS, declares that this USG device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ubnt.com/compliance...
-
Page 24: Online Resources
New York, NY 10017 ©2014-2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
