  • Page 1 5-Port Router with Power over Ethernet Model: ERPoe-5...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® EdgeRouter  PoE 5-Port Router. This Quick Start Guide is ™ designed to guide you through installation and also includes warranty terms. Package Contents EdgeRouter ERPoe-5 Power Adapter Power Cord Screws Screw Anchors (48V, 1.25A)

  • Page 3: Hardware Overview

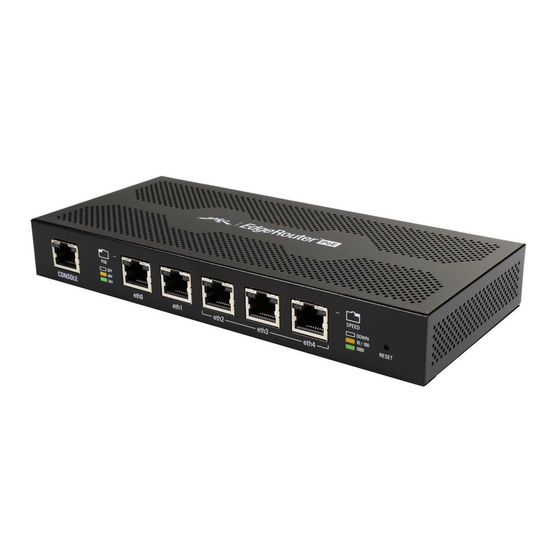

    Hardware Overview Front Panel Ports Console Ethernet (eth0-eth4) Reset Interface Description RJ45 serial console port for Command Line Interface (CLI) management. Use a Console RJ45-to-DB9 serial console cable to connect the Console port to your computer. All ports can be used for routing and support 10/100/1000 Mbps connections with Ethernet configurable PoE settings.
  • Page 4 Front Panel LEDs Power Speed/Link/Act State Status Power off Power Green Power on No Power over Ethernet Green 24V Power over Ethernet Amber 48V Power over Ethernet No Link Link Established at Amber 10/100 Mbps Speed/ Link Activity at Amber Flashing Link/ 10/100 Mbps Link Established at...

  • Page 5: Back Panel

    AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the EdgeRouter to rain or moisture.

  • Page 6: Wall Mounting

    Wall Mounting To mount the EdgeRouter PoE on a wall: 1. Use a 6 mm drill bit to drill two holes 100 mm apart. 2. Insert the Screw Anchors into the holes. Use a Phillips screwdriver to secure a Screw to each anchor. Leave a clearance of approximately 3 mm between each screw head and its anchor.
  • Page 7 Grounding the EdgeRouter PoE (Recommended) The EdgeRouter PoE is grounded through the Power Adapter; however, you can add optional ESD grounding for enhanced ESD protection. 1. Loosen the grounding screw and secure a ground wire (not included) to the Grounding Point. 2.

  • Page 8: Connecting Power

    Connecting Power 1. Connect the Power Adapter to the Power port. 2. Connect the Power Cord to the Power Adapter. Connect the other end of the Power Cord to a power outlet.
  • Page 9 Accessing the EdgeOS Configuration Interface The EdgeOS® configuration interface can be accessed via DHCP or static IP address assignment. By default, eth1 is set up as a DHCP client, while eth0 is assigned a static IP address of 192.168.1.1. To configure the EdgeRouter, proceed to the appropriate section: DHCP or “Static IP Address”.
  • Page 10 EdgeOS User Guide, which is available at www.ubnt.com/download/edgemax For more information on PoE configuration, refer to “Configuring PoE Settings”. You can also manage your device using the Ubiquiti Network Management System. UNMS lets you configure, monitor, ™...
  • Page 11 For more information on PoE configuration, refer to “Configuring PoE Settings”. You can also manage your device using the Ubiquiti Network Management System. UNMS lets you configure, monitor, upgrade, and back up your devices using a single application. Get started at www.unms.com...
  • Page 12 Configuring PoE Settings The PoE setting for ports eth0-eth4 is set to Off by default. WARNING: Before activating PoE, ensure that the connected device supports passive PoE and the supplied voltage. 1. In the Dashboard tab, click Actions > PoE of the Ethernet port you want to configure.
  • Page 13 3. The PoE LED on the Ethernet port will confirm the PoE setting. For detailed instructions on configuring other features, please refer to the EdgeRouter PoE User Guide. The User Guide is available at www.ubnt.com/download/edgemax...

  • Page 14: Specifications

    Specifications EdgeRouter PoE 5-Port Dimensions 200 x 90 x 30 mm (7.87 x 3.54 x 1.18") Weight 360 g (12.7 oz) Power Input 24VDC / 48VDC (48VDC, 1.25A Power Adapter Included) Button Reset Processor Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing System Memory 512 MB DDR2 RAM...

  • Page 15: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

  • Page 16: Limited Warranty

    Limited Warranty www.ubnt.com/support/warranty/ The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 17: Rohs/Weee Compliance Statement

    CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste.
  • Page 18 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 19: Declaration Of Conformity

    Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: www.ubnt.com/compliance Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta ERPoe-5 tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance...

  • Page 20: Online Resources

    2014/35/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.ubnt.com/compliance Latviešu valoda [Latvian] Ar šo, UBIQUITI NETWORKS, deklarē, ka ERPoe-5 ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvās 2014/30/ES, 2014/35/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: www.ubnt.com/compliance Lietuvių...
  • Page 21 New York, NY 10017 ©2013-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeSwitch, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
