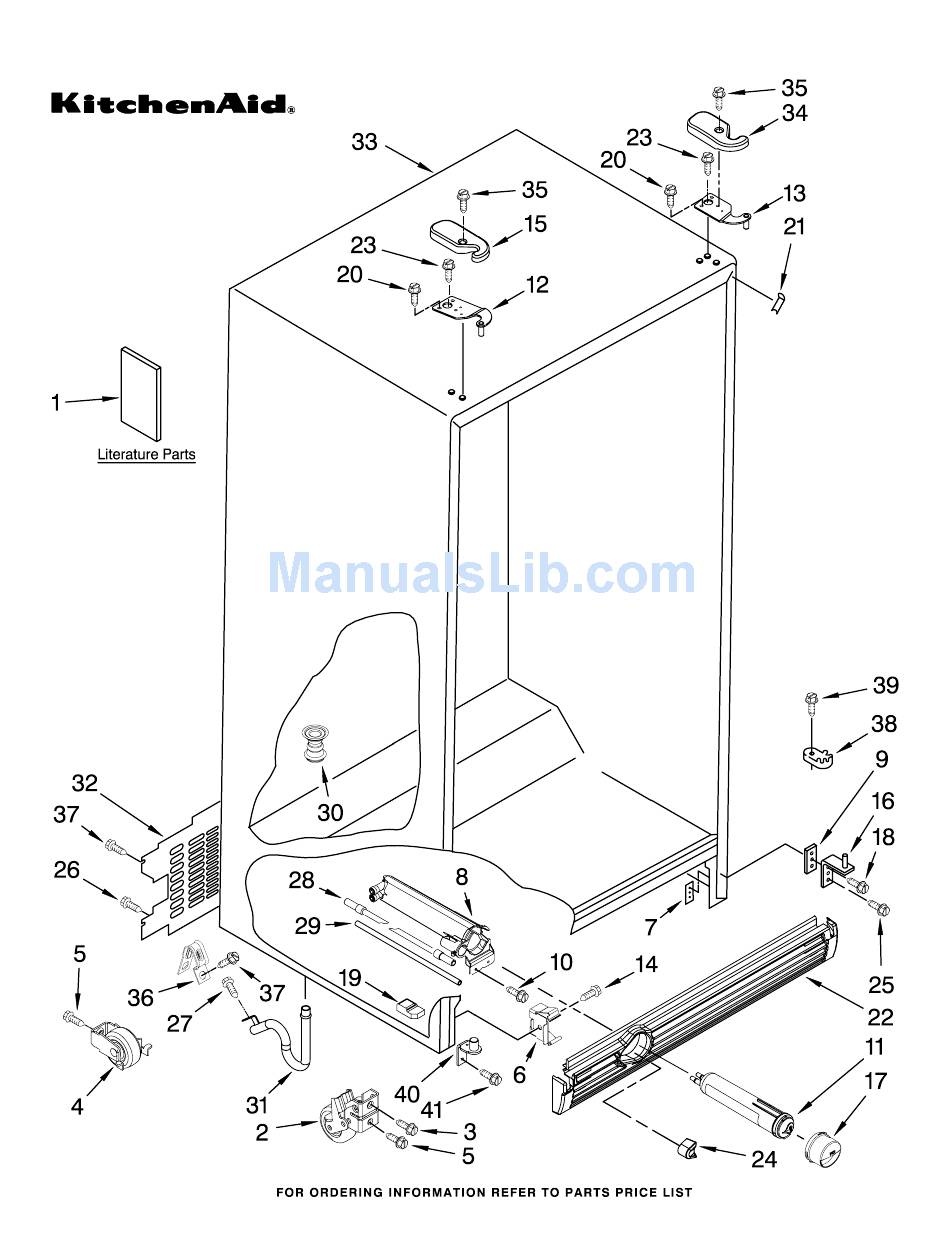

CABINET PARTS
REFRIGERATOR
For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00
(White)
(Biscuit)
(Black)
(Stainless) (Monochromatic Stainless)
Part No. W10216586 Rev. C
8−09 Litho In U.S.A. (wam) (psw)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSRV22FVBL00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSRV22FVBL00

Summary of Contents for KitchenAid KSRV22FVBL00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Part No. W10216586 Rev. C 8−09 Litho In U.S.A. (wam) (psw)

  • Page 2: Cabinet Parts

    For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. Part DESCRIPTION Literature Parts W10167098 Use & Care Guide W10180857 Service & Wiring Sheet W10139598 Energy Label W10180407 Instruction Sheet, Door Removal 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2)

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) W10216586 (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide, Meat Pan Control 2257741 Louver 2256035 Bracket, Dual...

  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10122938 Shelf, Snack Pan 2319720 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Slide (2) 2223357 Cover, Meat Pan (Includes Items 13, 14, 15 &...

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10216586...
  • Page 6 FREEZER LINER PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. (Biscuit) (Black) Part DESCRIPTION Liner (Not A Seviceable Part) 2212321 Slide, Ice Maker 3 W10180062 Cover, Ice Maker 2198641 Bracket, Cover 2309634 Shelf, Wire 489478 Screw 842534 Clip, Air Duct (2) 2163762 Cup, Shelf Mount.

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10216586...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. 100 W10204457 Ice Container (Biscuit) (Black) Part DESCRIPTION 2317246 Ice Bin 2 W10176384 Crusher Bin 2317247 Auger 2258220 Washer 1119007 Spacer, Step (20 2317248 Cover, Crusher...

  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10216586...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. (Biscuit) (Black) Part DESCRIPTION Refrigerator Door (Includes Item 5) 2325248W White 2325248T Biscuit 2325248B Black 2323861S Stainless W10191409 Monochromatic 2 W10160478 Door, Compartment 488208 Screw 2304235 Door Bin (3)

  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10216586...
  • Page 12 FREEZER DOOR PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Part DESCRIPTION Freezer Door (Includes Item 8 And Dispenser Front Parts) 2327133W White 2327133T Biscuit 2327133B Black 2327016S Stainless 2327016SA Monochromatic Handle (Includes #4)

  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10216586...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow...

  • Page 15: Unit Parts

    UNIT PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10216586...
  • Page 16 For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. Part DESCRIPTION 2320322 Union 12825802 Fan, Blade 2324712 Condenser Assembly 489464 Screw 2255199 Clip 8533993 Screw 509812 Grommet 2161302 Sleeve 488687 Screw Start Device Combination Relay & Overload W10128791 Production W10136414 Service...

  • Page 17: Air Flow Parts

    For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. Part DESCRIPTION 2182119 Fan Scroll 2155590 Retainer, Fan Motor 2313359 Diffuser, Air Duct 2319914 Bi−Metal, Defrost 2312009 Air Duct Freezer 489478 Screw 2315549 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator...

  • Page 18: Control Parts

    For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. Part DESCRIPTION 2181738 Control Box 2196001 Tube Barrier, Thermostat 489214 Screw (2) 2149705 Light Switch 2315562 Thermostat 2303824 Electronic Control 489398 Screw (2) 489203 Spring Washer 627068 Screw CONTROL PARTS (Biscuit) (Black) Illus.

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10216586...
  • Page 20 ICEMAKER PARTS For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. 100 W10190961 Complete Icemaker (Biscuit) (Black) Part DESCRIPTION 489084 Screw 628379 Clip, Fuse 2256095 Fitting/Water Tube 489478 Screw 2188709 Filter Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw (2) 9 W10122550 Mold &...
  • Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00 (White) Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 4392901 Biscuit 8171357 Graphite PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit...
