- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRG25FKSS15 (Stainless Steel) Part No. 8198763 5−06 Printed In U.S.A. (kdj)
-

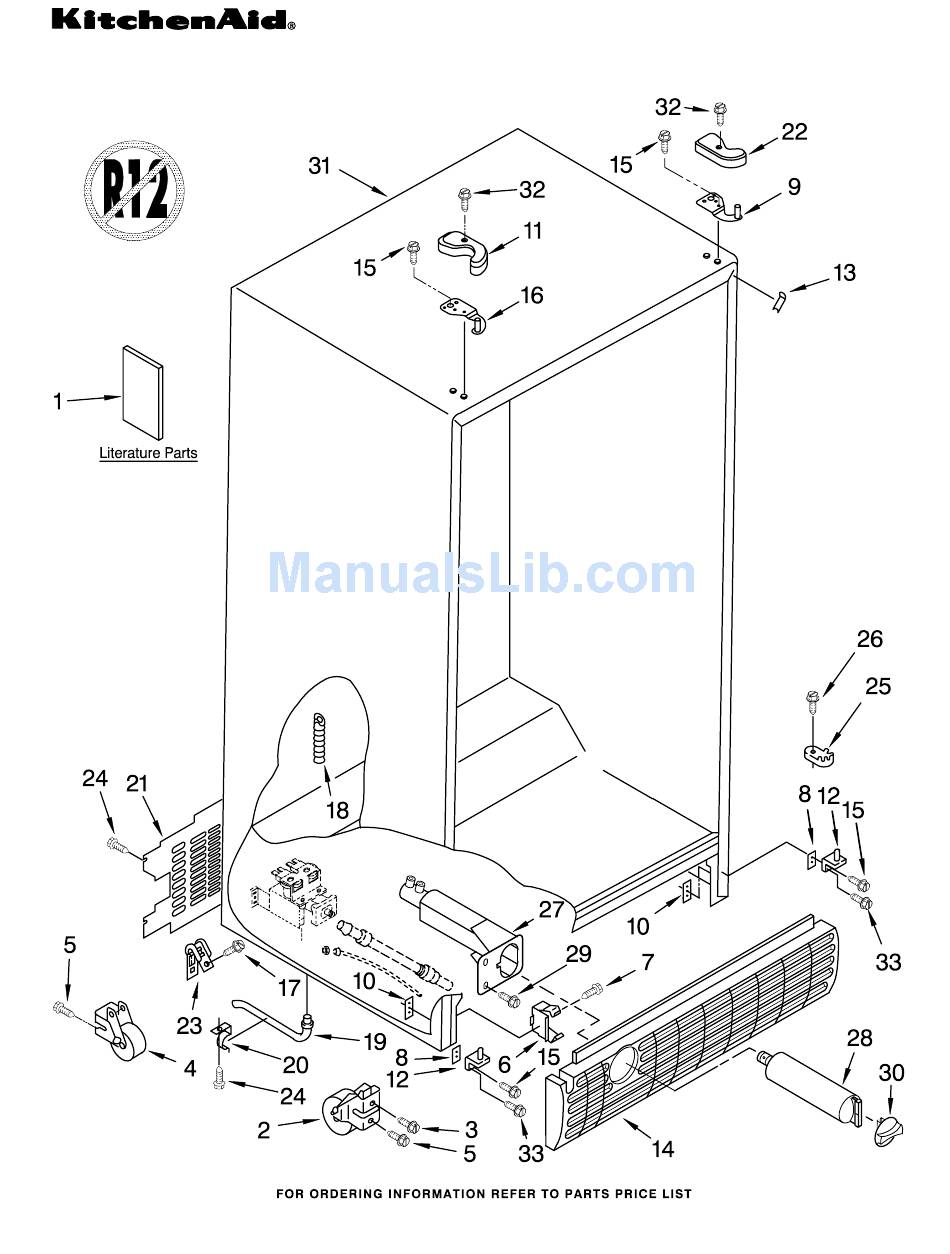

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION LITERATURE PARTS LIT2255706 Use & Care Guide LIT2255385 Service & Wiring Sheet LIT2261498 Energy Label LIT2220407 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2256035 Bracket, Dual Crisper 2256037 Wire Harness, Dual Crisper 2206273 Ladder, Shelf (2) 486298 Screw (2) 487539 Screw 2179404 Rack, Wine &... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION 2195975 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 2188669 Snack Pan (Includes #7) 2179243 Trim, Handle 2255144 Glass, Cover 2256153 Cover, Crisper... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRG25FKSS15 (Stainless Steel) 8198763... - Page 6 FREEZER LINER PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2223539 Basket, Tall Track, Basket−Dual 2223708 Right Side 2223709 Left Side 2211746 Shelf, Slide Out Upper 2171766 Basket, Front Shelf Track 2261449 Right Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKSS15 (Stainless Steel) 8198763... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRG25FKSS15 (Stainless Steel) 8198763... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2219830S Stainless Steel 2218122 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Handle 2257001 Stainless Steel Door Gasket, Magnetic 2221313 Black 98654 Screw 2203690 Stud, Handle 488208 Screw 2182178 Door Closer, Upper Cam...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRG25FKSS15 (Stainless Steel) 8198763... - Page 12 FREEZER DOOR PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2216569S Stainless Steel Handle 2257001 Stainless Steel 2203690 Stud, Handle 488208 Screw 3400012 Screw 98654 Screw 2171070 Shelf Bin (4) Door Gasket, Magnetic 2221314 Black 2219982 Trim, Door Shelf...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRG25FKSS15 (Stainless Steel) 8198763... - Page 14 DISPENSER FRONT PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2256199 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black 2209718 Water Fitting Assembly (Includes Water Tube) Lever, Ice...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2220569 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2220570 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover... -
Page 16: Control Parts
CONTROL PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8201785 Control Box 1115374 Clip, Wiring 2172906 Grommet, Light Bar 2196001 Tube Barrier, 1115375 Clip, Wiring 2161466 Slide, Thermostat Thermostat 2161308 Connecting Rod 489084 Screw (2) 489214 Screw (3) 489391 Fastner, Push−On 2179920 Light Bar (RC) -
Page 17: Unit Parts
UNIT PARTS For Models: KSRG25FKSS15 (Stainless Steel) 8198763... - Page 18 UNIT PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 1105523 Tray, Evaporator Following Parts Not Illustrated 2190685 Fan, Blade 2256150 Heat Shield 2204484 Condenser and Optional Parts Not Included Drier Assembly 2199167 Production 489464 Screw...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRG25FKSS15 (Stainless Steel) 8198763... - Page 20 ICEMAKER PARTS For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part DESCRIPTION 2256096 Fitting, Water Tube 2255012 Tube, Filter Outlet 2188744 Tube, Filter Inlet 628379 Clip, Fuse 489478 Screw 2188746 Valve, Solenoid 2208136 Tube Clamp 2174358 Cover 488649 Screw 628228 Mold & Heater Assembly (Also Order 542638 628356 Cup, Water Fill...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRG25FKSS15 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black (4 Feet) (1 Qt. Uncut) 479502 Tape, Vinyl Customer Touch−Up Material 799344 Enamel, White (3/4 x 108")
