- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) 3−94 Printed In U.S.A. (RCG) Part No. 4379299...
-

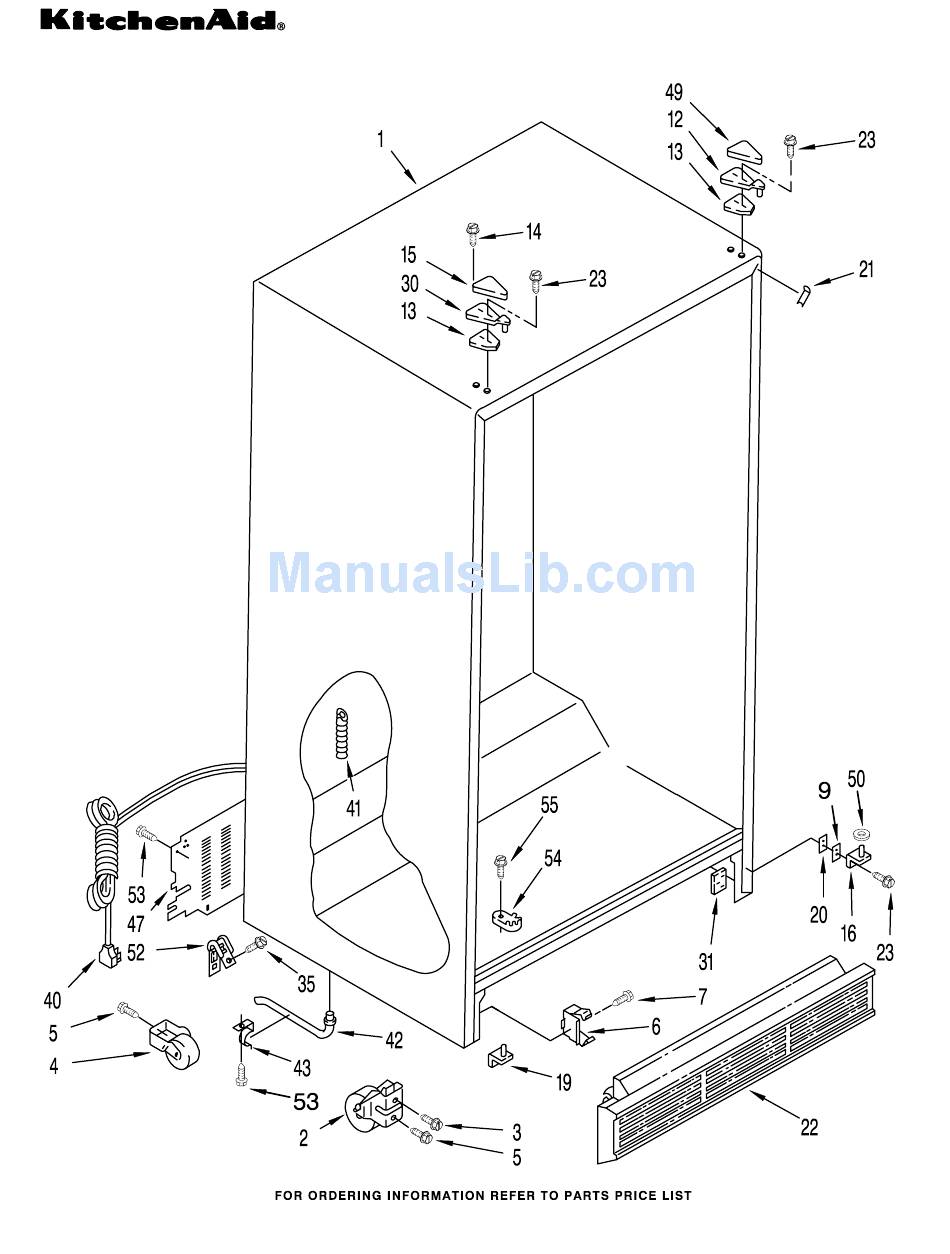

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2 2152011 Front Roller (2) 489393 Screw 981122 Roller (Rear) (2) 488454 Screw 6 2155013 Clip, Grille 489242 Screw 836196 Shim 12 1117937 Hinge Top (R.H.) 13 1123515 Shim, Hinge Top 489284... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 985468 Escutcheon, Meat Pan Control 984102 Slide Meat Pan Control 992358 Foam Pad 5 2168740 Bracket 6 1125675 Stud, Pan Cover 7 2168939 Head Assembly, Filter 8 1110718... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION 1 1125597 Shelf Assembly, Cantilever (2) 2 1125593 Glass, Shelf 3 1125594 Retainer, Glass 4 1125786 Gasket, Front 5 2161771 Cover, Pan Assembly (2) 6 1125705 Gasket, Cover (Front) 7 1125706 Gasket, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) 4379299... - Page 6 FREEZER LINER PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2 1125824 Shelf, Top Compartment 3 1125657 Door, Ice Compartment 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 7 1115317 Support, Stud (4) 946355 Support, Stud (2) 9 1110779...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) 4379299... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION 1 1118386 Bracket, Motor 2 2155263 Motor, Dispenser 3 2152713 Soleniod Assembly 4 2149100 Guide, Solenoid 6 1115374 Clip, Wiring 7 2149192 Wiring Assembly, Ice Dispenser 489399 Screw 983663...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) 4379299... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2159404 White 2159405 Almond 2 1117999 Load, Lock (4) 3 2159136 Door, Compartment 1125981 Holder, Beverage 5 1125936 Butter Dish Insert, Handle 1117948 White 1117949 Almond 7 2159079...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) 4379299... - Page 12 FREEZER DOOR PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2159351 White 2159352 Almond 2 1107215 Handle Assembly 3 1107341 End Cap (2) 487909 Screw 5 1107651 Spacer, Handle 489075 Screw 7 2156016 Shelf Bin (4)
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) 4379299... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser 983696 Spring, Lever (2) 2162361 Switch (Not A 17 2147165 Shield, Wiring 32 2147164 Insulator, Control Servicable Item) 488500 Screw Bracket 488687 Screw...
-
Page 15: Unit Parts
UNIT PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) 4379299... - Page 16 UNIT PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 50 1110663 Guard, Fan 486692 Speed Nut 2162431 Fan, Motor 489339 Screw 2 1108179 Fan, Blade 25 1110674 Tray, Evaporator 227991 Wire Connector 3 2164504 Condenser 26 2149294...
-
Page 17: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) 4379299... - Page 18 ICEMAKER PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION 489084 Screw 836489 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 7 2155294 Tube, Water 8 1106508 Seal, Gasket 489242 Screw 10 2002182 Valve, Solenoid 627018 Nut, Compression 13 2155247...
-
Page 19: Air Flow Parts
AIR FLOW PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part DESCRIPTION 1 2155594 Fan Scroll 2 2155590 Retainer, Fan Motor 3 2161231 Air Scoop 489176 Screw 5 2155575 Air Duct Freezer 7 2149299 Fan Motor 8 2169142 Fan Blade 10 2155589 Fan Grommet (2) 11 1115381... -
Page 20: Control Parts
CONTROL PARTS For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 2169149 Control Box 12 1125591 Slide, Thermostat 23 2161308 Connecting Rod 2 1115241 Tube Barrier, 489391 Fastener, Push−On 489242 Screw Thermostat 25 2155695 Escutcheon, 14 1118072 Light Bar... - Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25FBWH00, KSRS25FBAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl 799340 Enamel, Black (3/4 x 108") (1 Qt.
