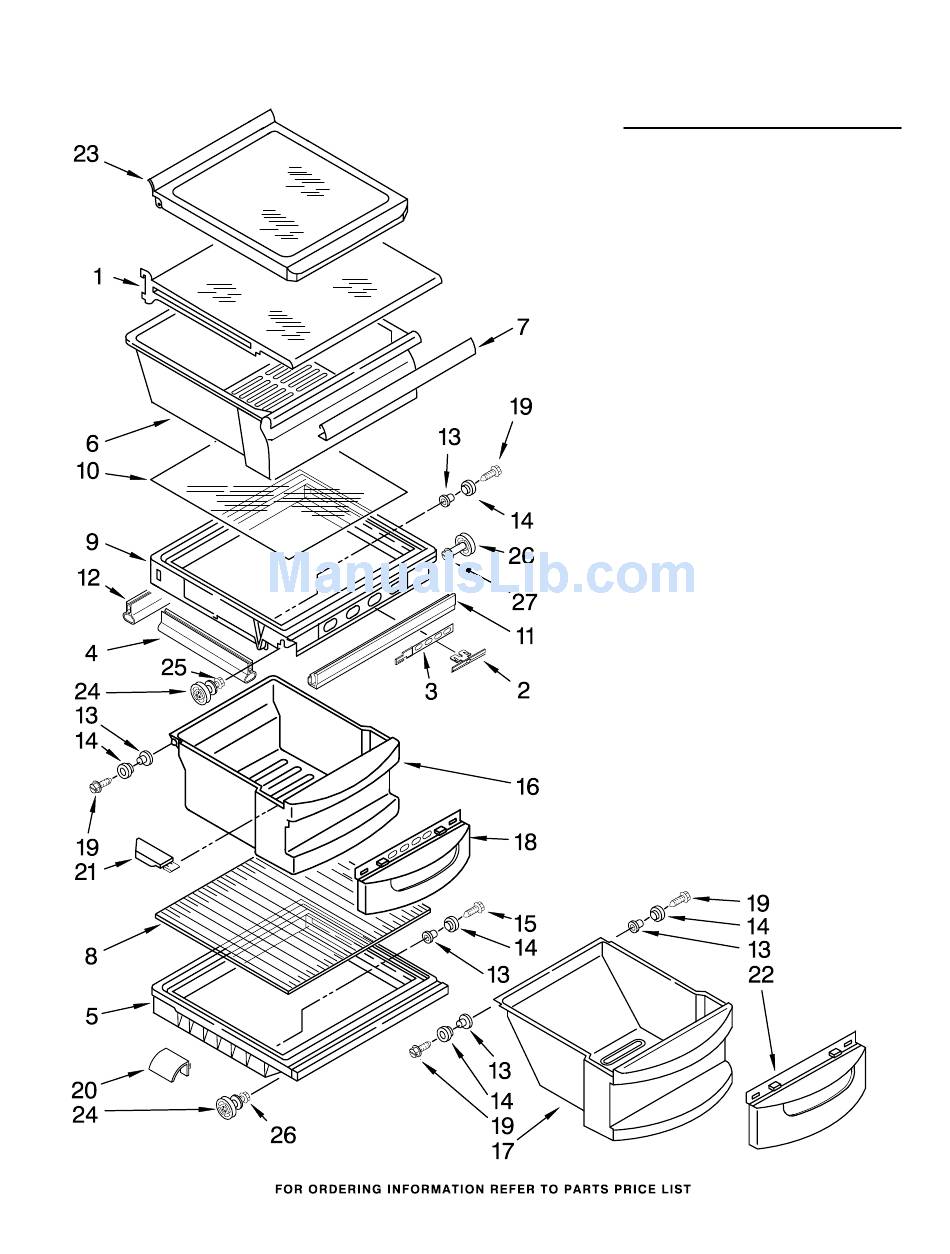

REFRIGERATOR SHELF PARTS

For Models: KSRV22FVWH00, KSRV22FVBT00, KSRV22FVBL00, KSRV22FVSS00, KSRV22FVMS00
(White) (Biscuit) (Black)
4
(Stainless) (Monochromatic Stainless)
Illus. Part
No. No. DESCRIPTION
1 W10122938 Shelf, Snack Pan
2 2319720 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Slide (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2309518 Snack Pan
7 2309519 Trim, Hamdle
8 W10160481 Glass Cover
9 W10160317 Cover, Crisper
(Includes 2, 3,
4, 11, 12, 13,
14 & 19)
10 W10160480 Glass Cover
11 2223361 Gasket, Front
12 2223362 Gasket, Rear
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 W10142713 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 W10149981 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
23 2327180 Shelf & Roller
Assembly
24 2196485 Stud Assembly
25 3400894 Screw
26 2196483 Stud Assembly
27 8281158 Screw
W10216586
