KitchenAid KSRV22FVBL02 Parts List

KitchenAid KSRV22FVBL02 Parts List

White biscuit black stainless monochromatic stainless
Hide thumbs Also See for KSRV22FVBL02:

Advertisement

Table of Contents

See also: Instructions for Using

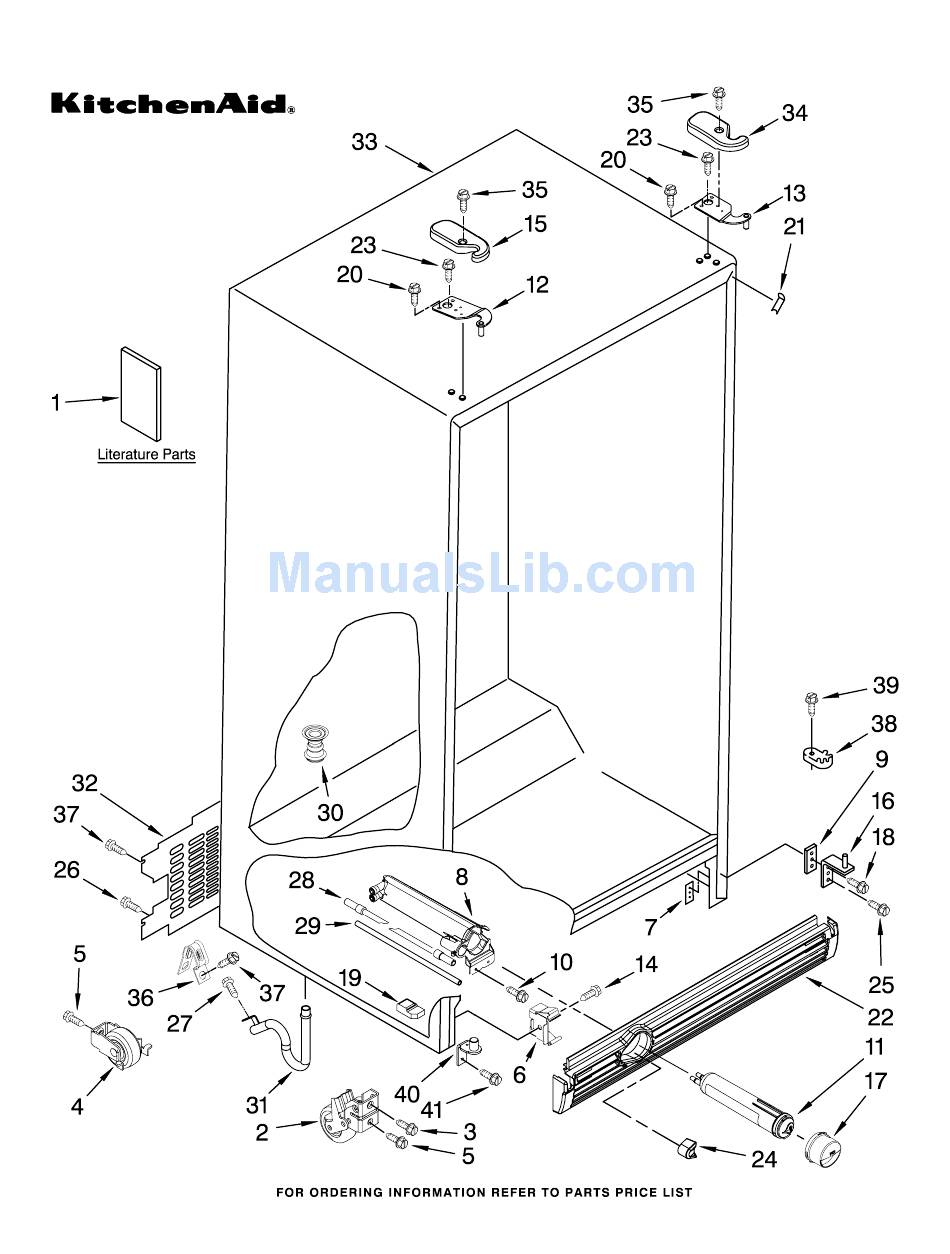

CABINET PARTS
REFRIGERATOR
For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02
(White)
(Biscuit)
(Black)
(Stainless) (Monochromatic Stainless)
3−09 Litho In U.S.A. (wam)(bay)
Part No. W10260810 Rev. A
1

Advertisement

Table of Contents
loading

Related Manuals for KitchenAid KSRV22FVBL02

Summary of Contents for KitchenAid KSRV22FVBL02

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) 3−09 Litho In U.S.A. (wam)(bay) Part No. W10260810 Rev. A...

  • Page 2: Cabinet Parts

    For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. Part DESCRIPTION Literature Parts W10167098 Use & Care Guide W10205540 Service & Wiring Sheet W10139598 Energy Label W10180407 Instruction Sheet, Door Removal 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2)

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) W10260810 (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide, Meat Pan Control 2257741 Louver 5 W10188421 Light Lens...

  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION 2309560 Shelf, Snack Pan 2319720 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Slide (2) 2223357 Cover, Meat Pan (Includes Items 13, 14, 15 & 20)

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10260810...
  • Page 6 FREEZER LINER PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. 3 W10180062 Cover, Ice Maker 8 W10130299 Cup, Shelf Mount. 15 W10173569 Cover, Receiver 16 W10193666 P.C. Board (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Part DESCRIPTION Liner (Not A...

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10260810...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. 100 W10204457 Ice Container (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Part DESCRIPTION 2317246 Ice Bin 2 W10176384 Crusher Bin 2317247 Auger 2258220 Washer 1119007 Spacer, Step (20...

  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10260810...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Part DESCRIPTION Refrigerator Door (Includes Item 5) 2325248W White 2325248T Biscuit 2325248B Black 2323861S Stainless W10191409 Monochromatic 2301486 Door, Compartment 488208 Screw 2304235 Door Bin (3)

  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10260810...
  • Page 12 For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) W10260810 FREEZER DOOR PARTS (Biscuit) (Black) Illus. Part DESCRIPTION Freezer Door (Includes Item 8 And Dispenser Front Parts) W10214818 White W10214815 Biscuit W10214814 Black W10214817 Stainless W10214816 Monochromatic Handle (Includes #4) 2319727W White...

  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10260810...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. 15 W10206322 Bracket, Control 19 W10167528 Wire Assembly (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin...

  • Page 15: Unit Parts

    UNIT PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10260810...
  • Page 16 For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. Part DESCRIPTION 2320322 Union 12825802 Fan, Blade 3 W10211163 Condenser Assembly 489464 Screw 5 W10174384 Clip 8533993 Screw 509812 Grommet 2161302 Sleeve 488687 Screw Start Device Combination Relay & Overload W10189190 Production...

  • Page 17: Air Flow Parts

    For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. Part DESCRIPTION 2182119 Fan Scroll 2155590 Retainer, Fan Motor 2313359 Diffuser, Air Duct 2321799 Bi−Metal, Defrost 2312009 Air Duct Freezer 489478 Screw 2315549 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator...

  • Page 18: Control Parts

    For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. Part DESCRIPTION 2181738 Control Box 2196001 Tube Barrier, Thermostat 489214 Screw (2) 2149705 Light Switch 2315562 Thermostat 2303824 Electronic Control 489398 Screw (2) 489203 Spring Washer 627068 Screw CONTROL PARTS (Biscuit) (Black) Illus.

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless) W10260810...
  • Page 20 ICEMAKER PARTS For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. 3 W10140630 Fitting/Water Tube 9 W10122550 Mold & Heater 19 W10131253 Bracket, Mounting 100 W10190961 Complete Icemaker (Biscuit) (Black) (Stainless) (Monochromatic Stainless) Part DESCRIPTION 489084 Screw 628379 Clip, Fuse...
  • Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRV22FVWH02, KSRV22FVBT02, KSRV22FVBL02, KSRV22FVSS02, KSRV22FVMS02 (White) Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 4392901 Biscuit 8171357 Graphite PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit...
