Genius G-Shot P210 Service Manual
Hide thumbs Also See for G-Shot P210:

Advertisement

Quick Links

Service Manual
G-Shot 210
Version K01A

Advertisement

loading
Need help?

Need help?

Do you have a question about the G-Shot P210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Genius G-Shot P210

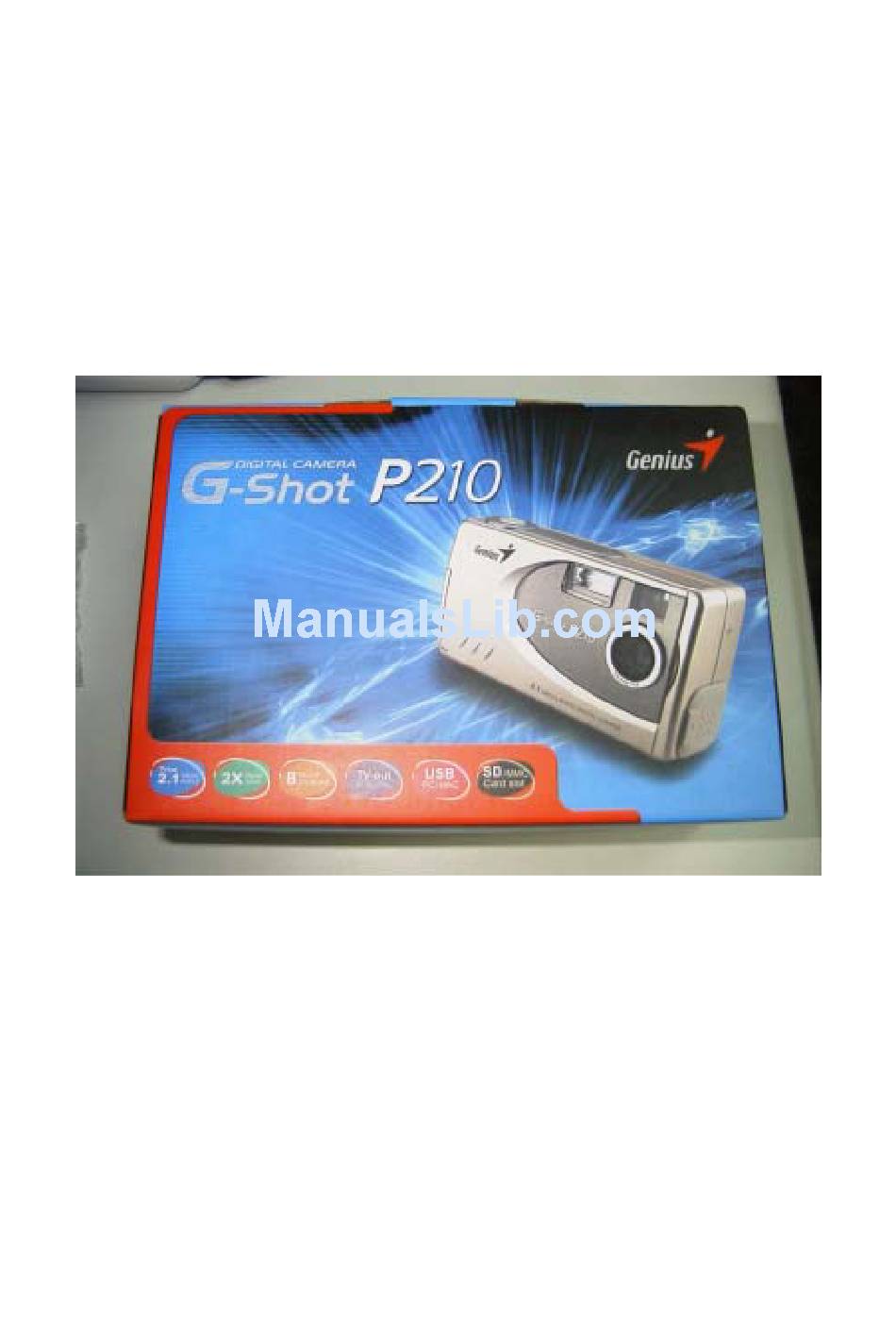

  • Page 1 Service Manual G-Shot 210 Version K01A...
  • Page 2 Service Manual G-Shot P210 Contents ………………………………...…………..2 1.Function Test ………………………………………3 2.Troubleshooting ……………………………………5 3.Disassemble Procedure ……………………………6 4.Firmware Update Procedure ………………….…..8 5.Parts List ……………………………………………9 6.Tooling …………………………..…………………13 Version: K01A...
  • Page 3: Function Test

    Service Manual G-Shot P210 1. Function Test TOOL/EQUIPMENT SD card, TV, AC adapter, flower, accessory, computer OPERATION DESCRIPTION ITEM OPERATON DESCRIPTION Plug in AC Adapter then Power on, Insert SD card and set to Red-eye mode, shooting a picture in the dark and confirm the flashing twice.
  • Page 4 Service Manual G-Shot P210 Press MODE button to set to movie mode to check the movie function. Set to Video mode to select NTSC/PAL mode. The image should be normally and without a little bit dark, noise or incomplete. Select Erase mode at the Play Menu to erase one then erase all pictures that don’t permit can’t erase image situation.
  • Page 5: Troubleshooting

    Service Manual G-Shot P210 2. Troubleshooting Item NG point NG Analyzing solution Power on failure (Big current) Changing the Power Board. Power on failure (Current no Changing the Power Board. respond) Big capacitor no charge Changing the Power Board. No trigger Changing the Power Board.
  • Page 6: Firmware Update Procedure

    Service Manual G-Shot P210 4. Firmware Update Procedure Product : G-Shot P210 To update this camera firmware, you will need to have The new firmware file from Premier. One SD card. One card reader. One AC Adapter only for the camera.
  • Page 7 Service Manual G-Shot P210 5. Part List (G-Shot P210) G-Shot P210_BODY ASM: 25201255100 Item Part Name Part Number Front Cover 15100016101 Rear Cover 15120011101 Top Cover 15100017101 MCU Board 20200012101 Switch Board 20200013101 Power Board 20200014101 ASM,G-Shot P210,Dummy 25200009101 1. Front Cover...
  • Page 8 Service Manual G-Shot P210 2. Rear Cover 3. Top Cover Version: K01A...
  • Page 9 Service Manual G-Shot P210 4. MCU Board 5. Switch Board Version: K01A...
  • Page 10 Service Manual G-Shot P210 6. Power Board Version: K01A...
  • Page 11 Service Manual G-Shot P210 6. Tooling Item Description Mark Screw Driver (2.0m/m) Soldering iron 1. Screw Driver Version: K01A...
  • Page 12 Service Manual G-Shot P210 2. Soldering iron Version: K01A...
