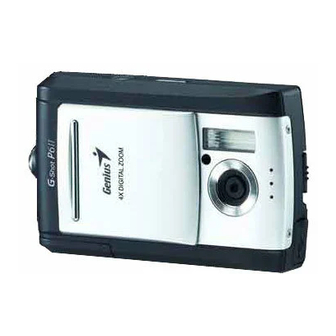

Genius G-Shot P611 Service Manual
Hide thumbs Also See for G-Shot P611:

Advertisement

Quick Links

Service Manual
G-Shot P611
Version K01A

Advertisement

loading
Need help?

Need help?

Do you have a question about the G-Shot P611 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Genius G-Shot P611

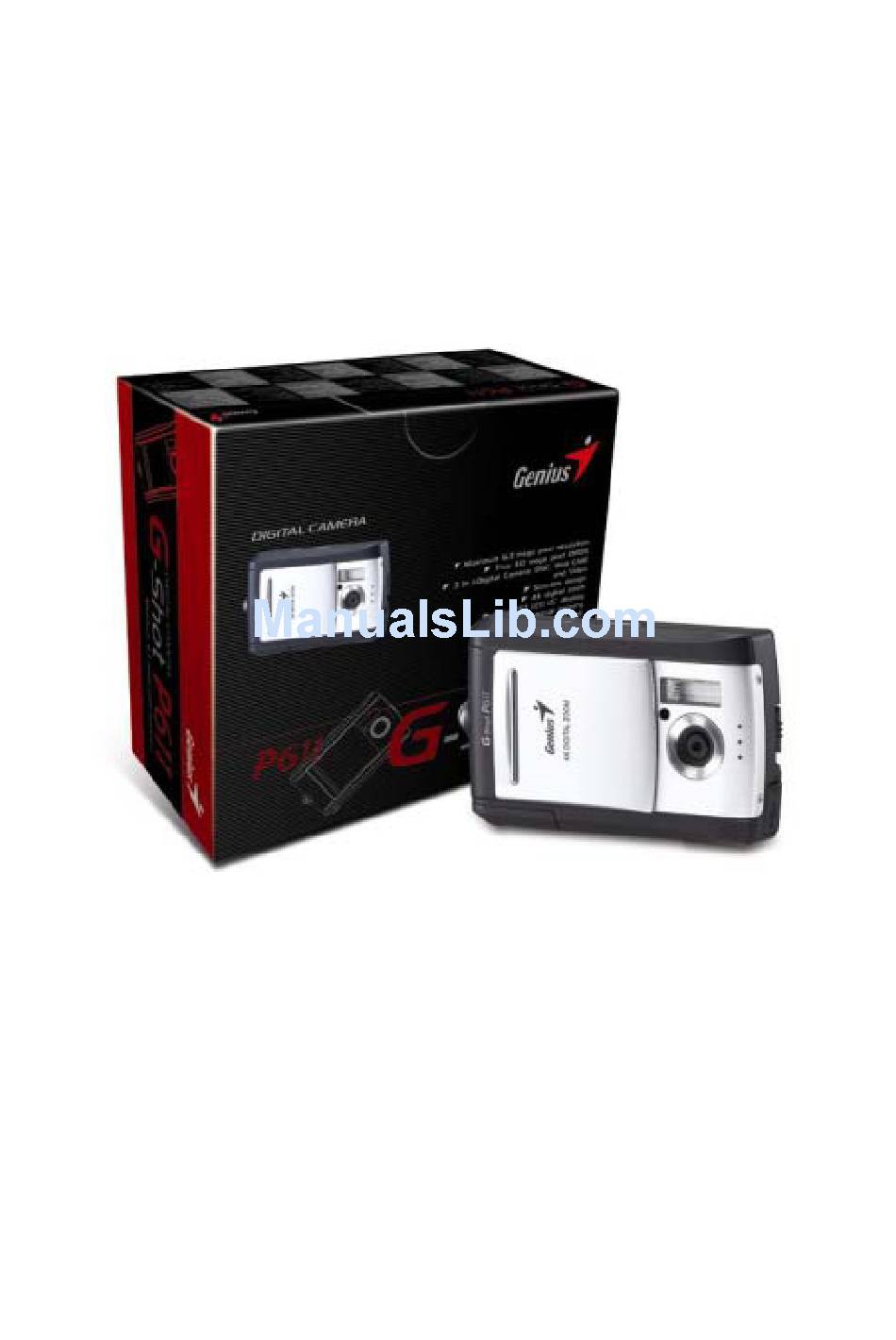

  • Page 1 Service Manual G-Shot P611 Version K01A...
  • Page 2 Service Manual G-Shot P611 Contents ………………………………...…………..2 1.Function Test ………………………………………3 2.Troubleshooting ……………………………………4 3.Disassemble Procedure ……………………………6 4.Firmware Update Procedure ………………….…..9 5.Parts List ……………………………………...……10 6. Tools …..……………………………………………18 Version: K01A...
  • Page 3: Function Test

    Service Manual G-Shot P611 1. Function Test TOOL/EQUIPMENT SD card*2, TV, AC adapter, lens-wiping paper USB cable, flower, accessory, computer OPERATION DESCRIPTION ITEM OPERATION DESCRIPTION Load AAA battery and power on with power button. Confirm FW edition (right corner) is true and LCD display normal image.
  • Page 4: Troubleshooting

    Service Manual G-Shot P611 2. Troubleshooting Item NG point NG Analyzing solution Power system Power on fail 1>. Check if connection between battery spring and battery is OK. 2>. Check if power board 3.3VD is normal 3>. Check if connection between JP1 and MCU/B JP2 is OK.
  • Page 5 Service Manual G-Shot P611 TFT-LCD no 1>. Check if LCD soft board is well image/noise connected to interface 2>. Check if JP3 is cold soldering. 3>. Check if LCD is OK. 4>. Check if signal DRV has the square wave output, LED ANDOE is about 7V.
  • Page 6 Service Manual G-Shot P611 3. Disassemble Procedure Step Figure Description Remark Tools Examine if there's Finished Product any scratch on the surface. Remove all the screws Do not scratch the on the camera housing camera surface Screw driver then remove the Front while removing Cover.
  • Page 7 Service Manual G-Shot P611 Step Figure Description Remark Tools Remove the strobe PCB form the main Screw driver frame. Desolder the wires of flash from the strobe Iron soldering PCB. Remove the flash and lens module from the Screw driver main PCB as shown.
  • Page 8: Firmware Update Procedure

    Service Manual G-Shot P611 4. Firmware Update Procedure Product : G-Shot P611 To update this camera firmware, you will need to have 1. The new firmware file from Premier. 2. One SD card. 3. One card reader. Please follow the steps below to perform the update process: 1.
  • Page 9 Service Manual G-Shot P611 5. Part List (G-Shot P611) Item Parts Name Pcs / set Remark Front Cover ASSY 9L444-2000-0BL Rear Cover ASSY 9L444-3000-99 Lens Cover 9L434-004-99 Main PCB ASSY 9L547-0001 Power PCB ASSY 9L547-8001 Strobe PCB ASSY 9L547-4001 Lens Module ASSY...
  • Page 10 Service Manual G-Shot P611 1. Front Cover ASSY 2. Rear Cover ASSY Version: K01A...
  • Page 11 Service Manual G-Shot P611 3. Lens Cover 4. Main PCB ASSY Version: K01A...
  • Page 12 Service Manual G-Shot P611 5. Power PCB ASSY 6. Strobe PCB ASSY Version: K01A...
  • Page 13 Service Manual G-Shot P611 7. Lens Module ASSY 8. Battery Cover Version: K01A...
  • Page 14 Service Manual G-Shot P611 9. USB Cover 10. LCD Version: K01A...
  • Page 15 Service Manual G-Shot P611 6. Tooling Item Description Mark Screw Driver (2.0m/m) Tweezers Soldering iron 1. Screw Driver Version: K01A...
  • Page 16 Service Manual G-Shot P611 2. Tweezers Version: K01A...
  • Page 17 Service Manual G-Shot P611 3. Soldering iron Version: K01A...
