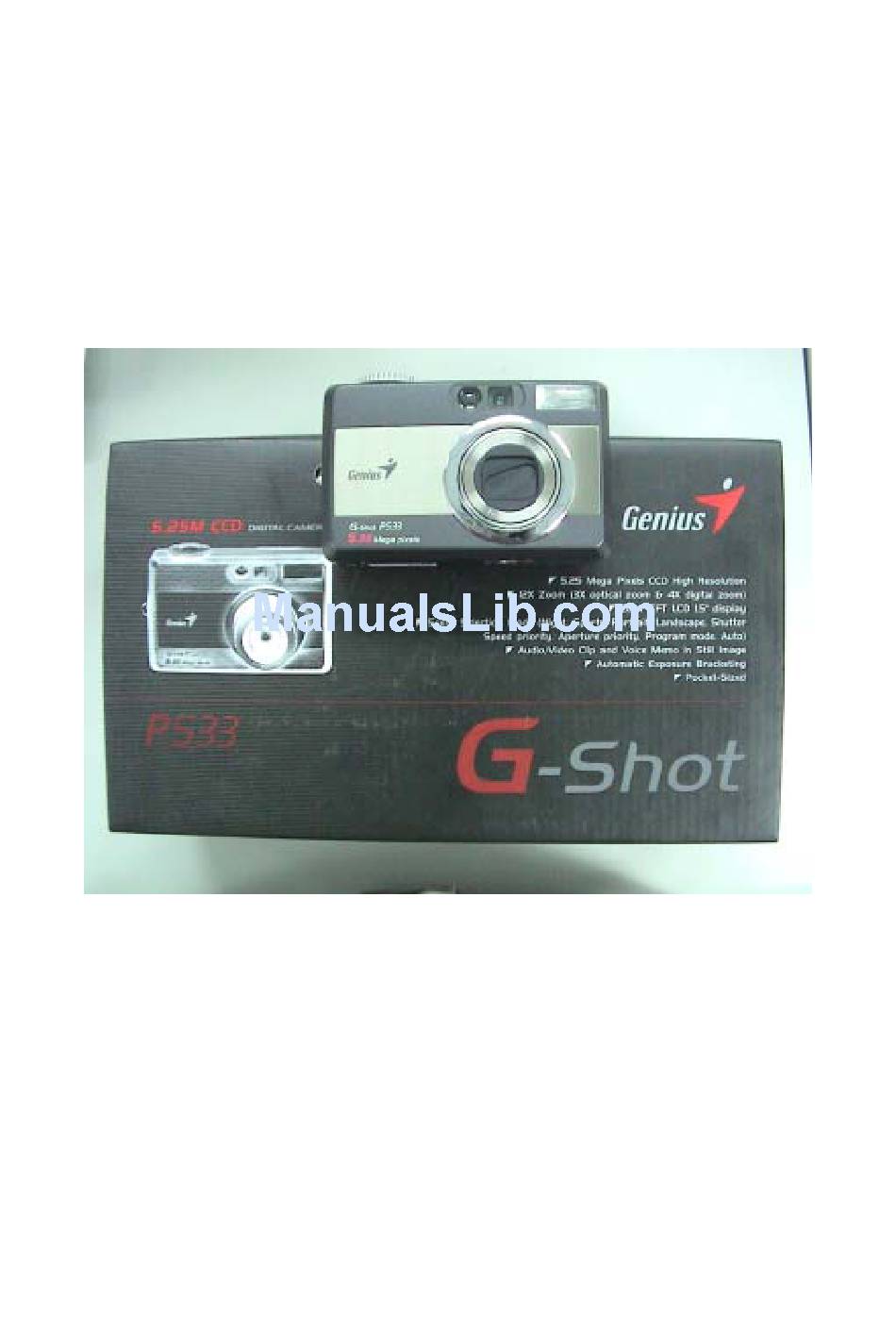

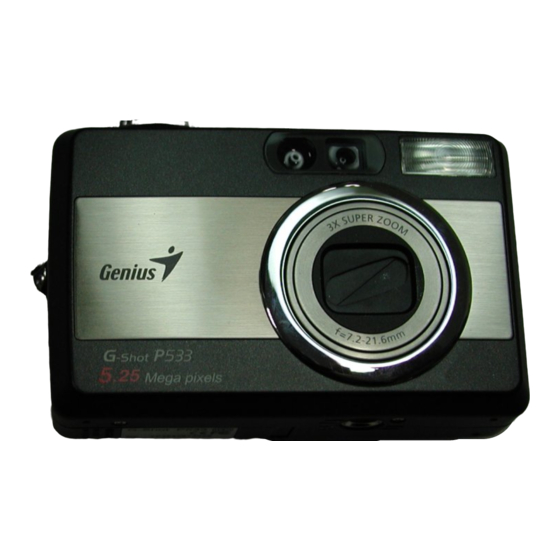

- Page 1 Service Manual G-Shot P533 Service Manual G-Shot P533 Version K01A Version: K01A...
-
Page 2: Table Of Contents
Service Manual G-Shot P533 Contents ………………………………...…………..2 1.Function Test ………………………………………3 2.Troubleshooting ……………………………………5 3.Disassemble Procedure ……………………………7 4.Firmware Update Procedure ………………….…..8 5.Parts List ……………………………………………9 6. Tools …..……………………………………………14 Version: K01A... -
Page 3: Function Test
Service Manual G-Shot P533 1. Function Test TOOL/EQUIPMENT SD card*2, TV, AC adapter, lens-wiping paper USB cable, flower, accessory, computer OPERATION DESCRIPTION ITEM OPERATON DESCRIPTION Power on with 5.0V AC adaptor, rotate the camera up 20 degree, down 60 degree, left and right 40 degree to check the words clearance on LCD, and waves are not allowed on LCD. - Page 4 Service Manual G-Shot P533 Choose SET UP mode, check SD card space, FW version, check Reset system, check languages, mode, auto power off time, etc. after all are ok, format SD card, power off camera, check if the lens draw back, plug out adapter.
-
Page 5: Troubleshooting
Service Manual G-Shot P533 2. Troubleshooting Item NG point NG Analyzing solution Power system Power on fail with 1>. Check if the spring is deformed or battery (adapter OK) dirty 2>.Check if the soldering of battery spring is good Power on fail with 1>.Check if POWER switch is good ,the... - Page 6 Service Manual G-Shot P533 Communicatio USB no connection 1>.Check the connection between n system (CN703) and main board 2>.Check if USB/TV is cold soldering or Others Shutter no sound Speaker spring connection NG or speaker itself NG Playback no sound or...
-
Page 7: Disassemble Procedure
Service Manual G-Shot P533 3. Disassemble Procedure Step Figure Description Remark Tools Examine if there's Finished Product any scratch on the surface. Remove all the screws Do not scratch the on the camera housing camera surface Screw driver then remove the Front while removing Cover and Rear Cover. -
Page 8: Firmware Update Procedure
Service Manual G-Shot P533 4. Firmware Update Procedure Firmware Update Procedure Product : G-Shot P533 To update this camera firmware, you will need to have 1. The new firmware file. 2. One SD card. 3. One card reader. Please follow the steps below to perform the update process: 1. -
Page 9: Parts List
Service Manual G-Shot P533 5. Part List (G-Shot P533) Item Parts Name Part Number Quantity Front Cover ASSY 9F044-2001-99 Rear Cover ASSY 9F044-4000-99 SW1 PCB 9A347-3100 Battery Cover ASSY 9F044-7000-99 02037-E4H Screw 01635-015 Screw 01635-B42 Screw 01635-B95 Screw 01635-244 1. Front Cover Assy... - Page 10 Service Manual G-Shot P533 2. Rear Cover Assy Version: K01A...
- Page 11 Service Manual G-Shot P533 3. SW PCB Version: K01A...
- Page 12 Service Manual G-Shot P533 4. Battery Cover Version: K01A...
- Page 13 Service Manual G-Shot P533 5. LCD Version: K01A...
-
Page 14: Tools
Service Manual G-Shot P533 6. Tooling Item Description Mark Screw Driver (2.0m/m) Tweezers Soldering iron 1. Screw Driver Version: K01A... - Page 15 Service Manual G-Shot P533 2. Tweezers Version: K01A...
- Page 16 Service Manual G-Shot P533 3. Soldering iron Version: K01A...
