Summary of Contents for Genius G-Shot P633

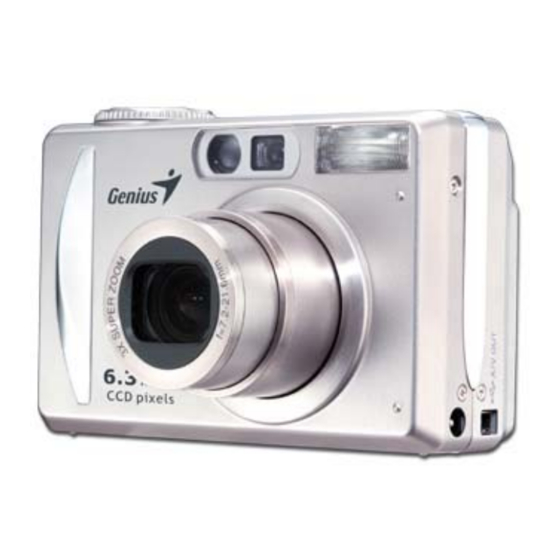

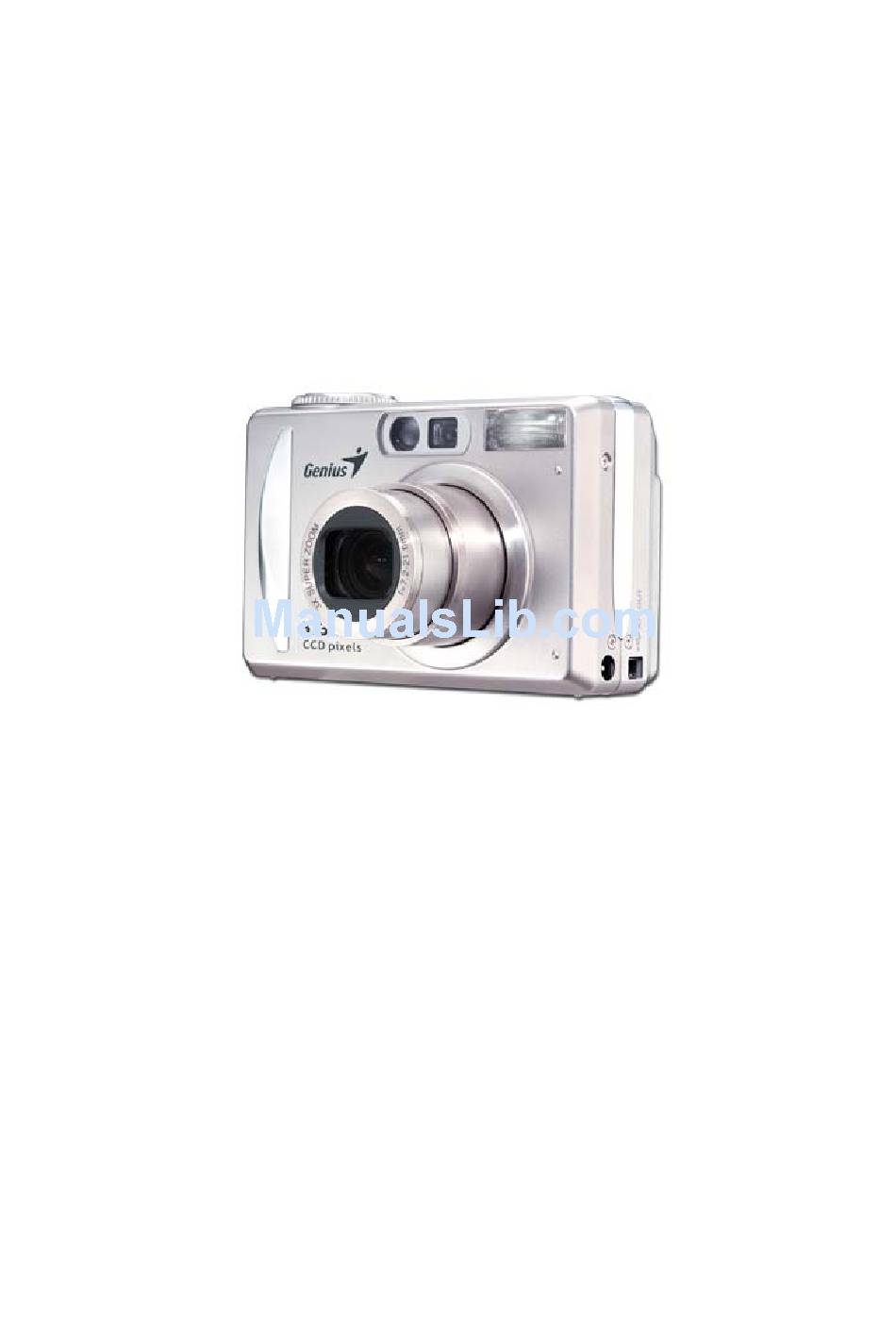

- Page 1 Service Manual G-Shot P633 Version K01A...
-
Page 2: Table Of Contents
Service Manual G-Shot P633 Contents ………………………………...…………..2 1.Function Test ………………………………………3 2.Troubleshooting ……………………………………5 3.Disassemble Procedure ……………………………7 4.Firmware Update Procedure ………………….…..9 5.Parts List ……………………………………...……10 6. Tools …..……………………………………………18 Version: K01A... -
Page 3: Function Test
Service Manual G-Shot P633 1. Function Test TOOL/EQUIPMENT SD card*2, TV, AC adapter, lens-wiping paper USB cable, flower, accessory, computer OPERATION DESCRIPTION ITEM OPERATION DESCRIPTION Install 5.0V AC adapter and insert SD card. Power on in Auto mode. LCD display should be normal, words should be clear and no wave on LCD. - Page 4 Service Manual G-Shot P633 Choose Movie Record mode. LCD display MOV. Choose Menu button. Try each function to check LCD display is ok. Press Shutter button to start to record. Use sound box for voice memo. Stop after 3 seconds.
-
Page 5: Troubleshooting
Service Manual G-Shot P633 2. Troubleshooting Item NG point NG Analyzing solution Power system 1>. Check if the spring is deformed or dirty 2>. Check if the soldering of battery Power on fail with spring is good battery (adapter OK) 3>. - Page 6 Service Manual G-Shot P633 1>. Check if the connection is between LCD flex board and SW CN551 is good 2>. Check if LCD NG ** BLACK IMAGE, check backlit and LCD display black round circuit /white image (TV is 3>. Check if SW NG ok ) 4>.
-
Page 7: Disassemble Procedure
Service Manual G-Shot P633 3. Disassemble Procedure Step Figure Description Remark Tools Examine if there's Finished Product any scratch on the surface. Remove all the screws Do not scratch the on the camera housing camera surface Screw driver then remove the Front while removing Cover and Rear Cover. - Page 8 Service Manual G-Shot P633 Step Figure Description Remark Tools Remove the Audio Screw driver Remove the frame of Screw driver LCD from main frame. Remove the SW FPC Screw driver as shown. Desolder the all joints Iron soldering on the power PCB.
-
Page 9: Firmware Update Procedure
Service Manual G-Shot P633 4. Firmware Update Procedure Product : G-Shot P633 To update this camera firmware, you will need to have 1. The new firmware file. 2. One SD card. 3. One card reader. Please follow the steps below to perform the update process: 1. -
Page 10: Parts List
Service Manual G-Shot P633 5. Part List (G-Shot P633) Item Parts Name Pcs / set Premier P/N Remark MCU SMT PCB ASY 9J547-0001 POWER PCB ASY 9J547-8100 SW PCB ASY 9J547-3100 AUDIO,SMT,FPC 9A347-2000 PC-RELEASE,ASY 9A347-0201 DECORATION PLATE A 9A334-033-3AG DECORATION PLATE B... - Page 11 Service Manual G-Shot P633 1. MCU SMT PCB ASY 2. POWER PCB ASY Version: K01A...
- Page 12 Service Manual G-Shot P633 3. SW PCB ASY 4. AUDIO,SMT,FPC Version: K01A...
- Page 13 Service Manual G-Shot P633 5. PC-RELEASE,ASY 6. DECORATION PLATE A Version: K01A...
- Page 14 Service Manual G-Shot P633 7. DECORATION PLATE B 8. STRAP HOLDER Version: K01A...
- Page 15 Service Manual G-Shot P633 9. MODE DIAL ASY 10. BATTERY COVER ASY Version: K01A...
- Page 16 Service Manual G-Shot P633 11. FRONT COVER ASY 12. BACK COVER ASY Version: K01A...
- Page 17 Service Manual G-Shot P633 13. TFT-LCD Version: K01A...
-
Page 18: Tools
Service Manual G-Shot P633 6. Tooling Item Description Mark Screw Driver (2.0m/m) Tweezers Soldering iron 1. Screw Driver Version: K01A... - Page 19 Service Manual G-Shot P633 2. Tweezers Version: K01A...
- Page 20 Service Manual G-Shot P633 3. Soldering iron Version: K01A...
