Summary of Contents for Genius G-Shot P433

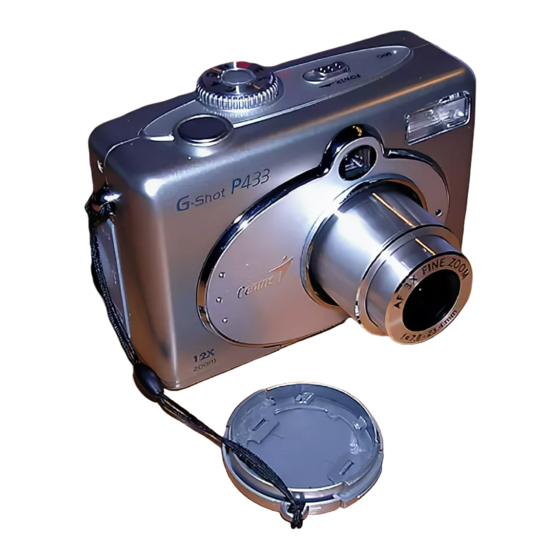

- Page 1 Service Manual G-Shot P433 Service Manual G-Shot P433 Version K01A Version: K01A...
-
Page 2: Table Of Contents
Service Manual G-Shot P433 Contents ………………………………...…………..2 1.Function Test ………………………………………3 2.Troubleshooting ……………………………………4 3.Disassemble Procedure ……………………………5 4.Firmware Update Procedure ………………….…..6 5.Parts List …………………………………………11 6.Tools …..………………………………………….…15 Version: K01A... -
Page 3: Function Test
Service Manual G-Shot P433 1. Function Test TOOL/EQUIPMENT ESD protection glove, SD card, AA battery, flower, AC adaptor, TV OPERATION DESCRIPTION ITEM OPERATON DESCRIPTION Check the open and close of battery cover, too tight or loosen is not allowed Load in batteries according to the icon, power on camera, check the lens... -
Page 4: Troubleshooting
Service Manual G-Shot P433 2. Troubleshooting Item NG point NG Analyzing solution Charging and No charging Changing the MCU Board. triggering No triggering Changing the MCU Board. system Lens system Lens extending Changing the MCU Board. /retracting is no good Diaphragm changing Changing the MCU Board. -
Page 5: Disassemble Procedure
Service Manual G-Shot P433 3. Disassemble Procedure Step Figure Discription Remark Tools Examine if there's Finished Product any scratch on the surface. Remove the all screws Do not scratch the at the camera housing camera surface Screw driver and remove the front, while removing rear cover. -
Page 6: Firmware Update Procedure
Service Manual G-Shot P433 4. Firmware Update Procedure Product : G-Shot P433 To update this camera firmware, you will need to have 1. The new firmware file. 2. One SD card. 3. One card reader. Please follow the steps below to perform the update process:... - Page 7 Service Manual G-Shot P433 Version: K01A...
- Page 8 Service Manual G-Shot P433 Version: K01A...
- Page 9 Service Manual G-Shot P433 Version: K01A...
- Page 10 Service Manual G-Shot P433 Note: Don’t remove the power source during firmware update procedures. Version: K01A...
-
Page 11: Parts List
Service Manual G-Shot P433 5. Part List (G-Shot P433) Item Part Name Part Number Quantity Front Cover Assy 9E944-1002 Rear Cover Assy 9E944-2015 Jack Cover 9E934-011*2DL Dial mode 9E944-4002 MCU PCB 9E947-0100 Switch FPC 9E947-3100 Flash Tube Assy 9E947-4200 Screw 01635-348 1. - Page 12 Service Manual G-Shot P433 2. Rear Cover Assy 3. Jack Cover Version: K01A...
- Page 13 Service Manual G-Shot P433 4. Dial mode 5. MCU PCB Version: K01A...
- Page 14 Service Manual G-Shot P433 6. Switch FPC 7. Flash Tube Assy Version: K01A...
-
Page 15: Tools
Service Manual G-Shot P433 6. Tooling Item Description Mark Screw Driver (2.0m/m) Soldering iron Tweezers 1. Screw Driver Version: K01A... - Page 16 Service Manual G-Shot P433 2. Soldering iron 3. Tweezers Version: K01A...
